Quick Details
-
Applicable Models:
-
Universal, Universal Cars/Vehicles
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P100
-
Warranty:
-
12 Months
-
Product Name:
-
circuit tester
-
DC voltage range:
-
0-65V
-
Resistance range:
-
0-200 K ohm
-
Language:
-
9 language
-
External Power:
-
12V or 24V via vehicle battery
-
Display:
-
TFT color display (160 x 128 dpi)
-
Operating Temperature:
-
0 to 60°C (32 to 140 F°)
-
Storage Temperature:
-
-40 to 70°C (-40 to 185 F°)
Quick Details
-
Car Fitment:
-
AC
-
Voltage:
-
Standard
-
Power:
-
2-5W
-
Applicable Models:
-
Universal, Universal Cars/Vehicles
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P100
-
Warranty:
-
12 Months
-
Product Name:
-
circuit tester
-
DC voltage range:
-
0-65V
-
Resistance range:
-
0-200 K ohm
-
Language:
-
9 language
-
External Power:
-
12V or 24V via vehicle battery
-
Display:
-
TFT color display (160 x 128 dpi)
-
Operating Temperature:
-
0 to 60°C (32 to 140 F°)
-
Storage Temperature:
-
-40 to 70°C (-40 to 185 F°)
Product Description
Specification

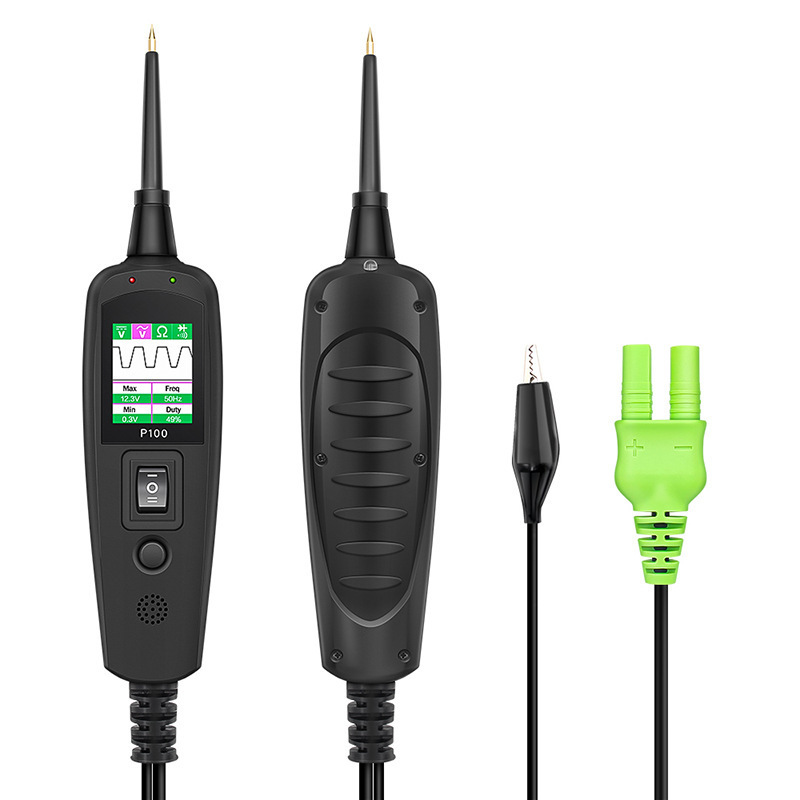

Hot Selling Vehicle Diagnostic Tools Automotive Electrical Circuit System Tester For all 0V-65V electronic system
1.Voltage & Polarity Testing-Determine DC/AC Voltage and Postive/Negative quickly.
2.Resistance Continuity Testing- LCD Screen display the value of resistance.
3.AC Circuit Singal Testing- Fast to trubleshoot the sensors circuit problem.
4.Components Activation in your hand, in the vehicle or W/Ground.
5.For all 0V-65V electronic systems, Supports Car Truck Motorcycle Boat
6.Checking for Bad Ground Contacts and Locating Short Circuits
7.Cable length: 6.0 Meters which makes work more easier.
8. Multi-languages: English, Spanish, Dutch, French, Italian, Portuguese, Polish, Russian, and Chinese.
Specifications:
1. Display: TFT color display (160 x 128 dpi)
2. Operating Temperature: 0 to 60°C (32 to 140 F°)
3. Storage Temperature: -40 to 70°C (-40 to 185 F°)
4. External Power: 12.0 or 24.0 V power provided via vehicle battery
Test Tool Specifications:
DC voltage range : 0-65V +1 digit
Resistance range : 0-200 K ohm
Frequency response of tone pass through
0Hz to 10K hz.
Circuit Breaker
Rating current: 1-10 Amp
Testing Standard:
100% current : no trip
150% current: trip in one hour
200% current: trip in 3-30 seconds.
300% current: trip in 0.5-4.0 seconds.
Package includes:
1pc x Probe adapter
1pc x Solid copper test probe tip
1pc x Extension connection line with alligator battery clip
1pc x User manual
2.Resistance Continuity Testing- LCD Screen display the value of resistance.
3.AC Circuit Singal Testing- Fast to trubleshoot the sensors circuit problem.
4.Components Activation in your hand, in the vehicle or W/Ground.
5.For all 0V-65V electronic systems, Supports Car Truck Motorcycle Boat
6.Checking for Bad Ground Contacts and Locating Short Circuits
7.Cable length: 6.0 Meters which makes work more easier.
8. Multi-languages: English, Spanish, Dutch, French, Italian, Portuguese, Polish, Russian, and Chinese.
Specifications:
1. Display: TFT color display (160 x 128 dpi)
2. Operating Temperature: 0 to 60°C (32 to 140 F°)
3. Storage Temperature: -40 to 70°C (-40 to 185 F°)
4. External Power: 12.0 or 24.0 V power provided via vehicle battery
Test Tool Specifications:
DC voltage range : 0-65V +1 digit
Resistance range : 0-200 K ohm
Frequency response of tone pass through
0Hz to 10K hz.
Circuit Breaker
Rating current: 1-10 Amp
Testing Standard:
100% current : no trip
150% current: trip in one hour
200% current: trip in 3-30 seconds.
300% current: trip in 0.5-4.0 seconds.
Package includes:
1pc x Probe adapter
1pc x Solid copper test probe tip
1pc x Extension connection line with alligator battery clip
1pc x User manual
