Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dosing
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3200*2240*2100mm
-
Power (kW):
-
17
-
Weight (KG):
-
1800
-
Product name:
-
atc wood cnc router 1325 machine for kitchen cabinet door
-
Working size:
-
1300*2500*200mm
-
Inverter:
-
Best Inverter 11KW
-
Table structure:
-
Vacuum and t-slot table
-
Working mode:
-
Leadshine 1.5kw servo motor
-
Working voltage:
-
AC380V/50Hz
-
Working command:
-
G code
-
Operating system:
-
Taiwan LNC control system
-
Net weight:
-
1800kg
-
Power(W):
-
9kw
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
Nesting CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dosing
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3200*2240*2100mm
-
Power (kW):
-
17
-
Weight (KG):
-
1800
-
Product name:
-
atc wood cnc router 1325 machine for kitchen cabinet door
-
Working size:
-
1300*2500*200mm
-
Inverter:
-
Best Inverter 11KW
-
Table structure:
-
Vacuum and t-slot table
-
Working mode:
-
Leadshine 1.5kw servo motor
-
Working voltage:
-
AC380V/50Hz
-
Working command:
-
G code
-
Operating system:
-
Taiwan LNC control system
-
Net weight:
-
1800kg
-
Power(W):
-
9kw

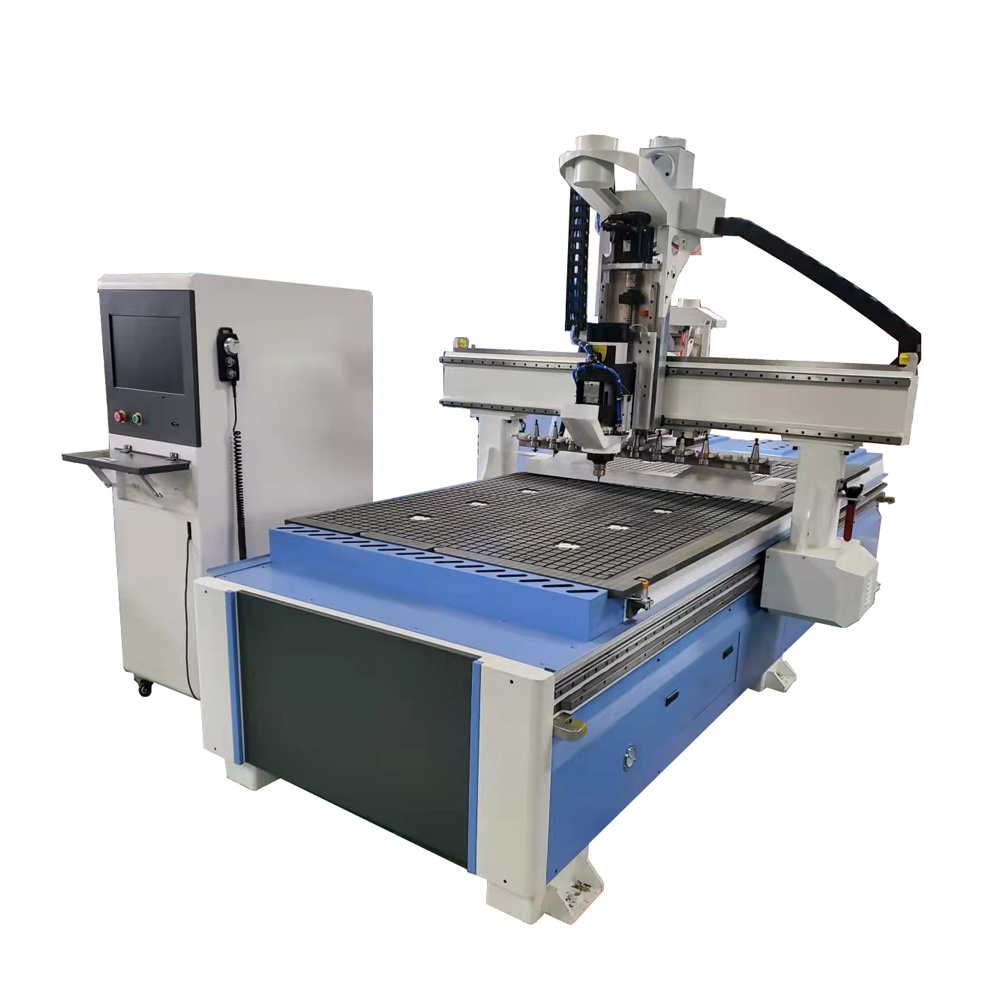

factory direct sale popular atc wood cnc router 1325 machine cnc router for kitchen cabinet door
Introduction
This machine is main for furniture industr ies, such as wood door,kitchen cabinet etc. The loading and unloading system also can be added to improving work efficiency.
Machine advantage
1. Our machine bed is welded by 6-10mm steel tube, processed by the lathe machine and facing machine, ensures the stability of processing.
2. The machine is finely made, with high-precision guide rail, ball screw and Japan Shimpoo reducer transmission.
3. With drilling head and alphacam software, all the steps of production are finished at one time.
4. With Leadshine 1.5kw servo motor, the working speed is more higher.
| No. | Function | Parameter | |
| 1 | Boring head | Option | |
| 2 | Working area | 1300*2500*200mm | |
| 3 | Transmission | XY rack and gear, Z ball screw | |
| 4 | Structure | table structure | Moveable gantry, suction cups |
| 5 | Spindle | spindle power | chinese JST 9kw ATC air cooling spindle |
| 6 | Motor | Leadshine 1.5kw servo motor | |
| 7 | Working voltage | AC380V/50Hz | |
| 8 | Control system | Taiwan LNC system |
1.Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2.The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3.Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
FAQ
1. I want to buy a cnc router,what suggestion can you give?
For small size,we have 300*400mm, 400*400mm, 600*900mm; for bigger size,we have 1200*1200mm, 1200*2400mm, 1300*2500mm and so on. Customization is also ok.
2. If machine have any problem after I receive it, how can I do ?
Free parts will be sent to you within warranty time, and there is technical
support from our professional engineer. Our after-sales staff can come to your workshop if the problem still can not be fixed.
3. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with
the machine. If there is still any question, we can talk through phone or Skype.
Moreover, you could come to our factory to learn how to use it before
shipment. Our technician will give you professional guidance.
4 .Could you help me to arrange the shipment?
Of cause, we can offer our client FOB,CFR or CIF price,even EXW price. If
possible we can help to arrange the shipment
5. Have you exported to our country?
We have been in this field for 1 0 years,we have CE,CO,ISO certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and others .
