Quick Details
-
Brand Name:
-
Sirivision
-
Model Number:
-
S25G1109FP
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Unmanaged 8 ports 2.5G Switch
-
Model:
-
S25G1109FP
-
Port:
-
8 RJ45 Ports and 1 10G SFP slot
-
Certification:
-
CE ROHS.FCC.UKCA
-
Support:
-
OEM/ODM
-
Forwarding rate:
-
33.48Mpps
-
Switching capacity:
-
60Gbps
-
Packaging Details:
-
1pc in box, 1pc Warranty Card in box
-
Size:
-
225 mm*135 mm*35 mm
-
Power Supply:
-
44-57V DC
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
60Gbps
-
Brand Name:
-
Sirivision
-
Model Number:
-
S25G1109FP
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Unmanaged 8 ports 2.5G Switch
-
Model:
-
S25G1109FP
-
Port:
-
8 RJ45 Ports and 1 10G SFP slot
-
Certification:
-
CE ROHS.FCC.UKCA
-
Support:
-
OEM/ODM
-
Forwarding rate:
-
33.48Mpps
-
Switching capacity:
-
60Gbps
-
Packaging Details:
-
1pc in box, 1pc Warranty Card in box
-
Size:
-
225 mm*135 mm*35 mm
-
Power Supply:
-
44-57V DC
Product Description:

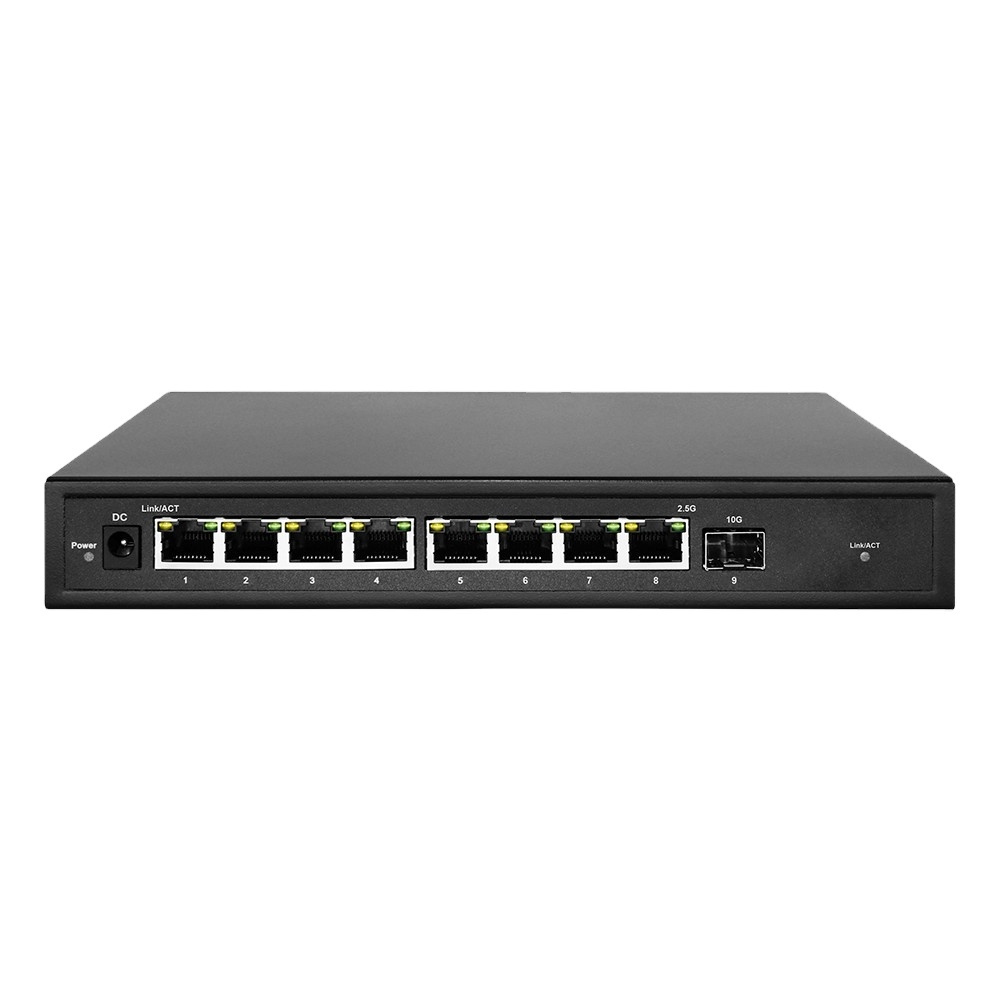

The "S25G1109FP" series is Sirivision's self-developed 2.5G Ethernet 10G uplink unmanaged PoE switch with 8 2.5G auto-sensing electrical ports and a 10G SFP fiber port. 1-8 RJ45 ports support 802.3af/at (PoE+) standard. Maximum PoE power of 30W for a single port. Its PoE power supply has the advantages of easy wiring, stable construction and stable operation.
Features:
- Product Name: Unmanaged 8 ports 2.5G Switch
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
-
Provides 8 10/100/1000/2500Mbps RJ45 ports and 1 10G SFP slot.
-
All RJ45 ports support PoE+ power supply.
-
Supports IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x , IEEE802.3az, IEEE802.3af, IEEE802.3at.
-
Support 4kv lightning protection.
-
The PoE-powered ports support a priority mechanism.
-
High power POE output can easily navigate a variety of networks.
Technical Parameters:
| S25G1109FP | |
| Power Supply | 44-57V DC |
| Standards | IEEE 802.3i,802.3u,802.3ab,802.3x,802.3at,802.3af,802.3z |
| Ports | 8 10/100/1000/2500Mbps RJ45 ports + 1 10 Gigabit SFP Fiber Port |
| Indicators | Electrical port link/act indicators, power input indicator |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Dimensions | 225 * 135 * 35 mm |
| PoE port | 8 802.3at/af standard POE |
| PoE Pin Definition | 1/2(+),3/6(-) |
| Total power | 150W |
| Switching Capacity | 60Gbps |
| Packet Forwarding Rate | 33.48Mpps |
| MAC address table | 4K |
| Cache | 4Mbit |
| Jumbo frames | 12K |
| Environment |
Operating Temperature: 0℃~45℃(0℉~113℉)
Storage Temperature:-40℃ ~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
Product Application:
FAQ:
Q1:What can you buy from us?
A1:Industrial Switches and Commercial Switch.
Q2:how can we guarantee quality?
A2:Always a pre-production sample before mass production. Always final Inspection before shipment.
Q3:Can we provide samples for testing before placing an order?
A3:Yes.
Q4:Do you offer OEM/ODM services?
A4:Yes, we do. We are professional OEM/ODM of Ethernet Switches.
Q5:Can you give me a discount?
A5:As a producer, our offer is very good. As long as your order is large, we can give you the biggest discount.
