Quick Details
-
Model Number:
-
LD 125X32X5(2.5 2.5)X6
-
Size:
-
LD 125X32X5(2.5 2.5)X6
-
Material:
-
Diamond & CBN
-
Grit:
-
240# 320# 400#
-
Bonding Agent:
-
Resin
-
Packing:
-
Carton
-
Use purpose:
-
Diamond grinding wheels for sharpening tungsten carbide saw blade
-
Supply Ability:
-
20000 Piece/Pieces per Month
-
logo customization:
-
accpet
-
Pattern customization:
-
accpet
-
MOQ:
-
1 PCS
Quick Details
-
Type:
-
Abrasive Tools
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
jin heng tai
-
Model Number:
-
LD 125X32X5(2.5 2.5)X6
-
Size:
-
LD 125X32X5(2.5 2.5)X6
-
Material:
-
Diamond & CBN
-
Grit:
-
240# 320# 400#
-
Bonding Agent:
-
Resin
-
Packing:
-
Carton
-
Use purpose:
-
Diamond grinding wheels for sharpening tungsten carbide saw blade
-
Supply Ability:
-
20000 Piece/Pieces per Month
-
logo customization:
-
accpet
-
Pattern customization:
-
accpet
-
MOQ:
-
1 PCS
Overview
Product video d
escription
Product Description

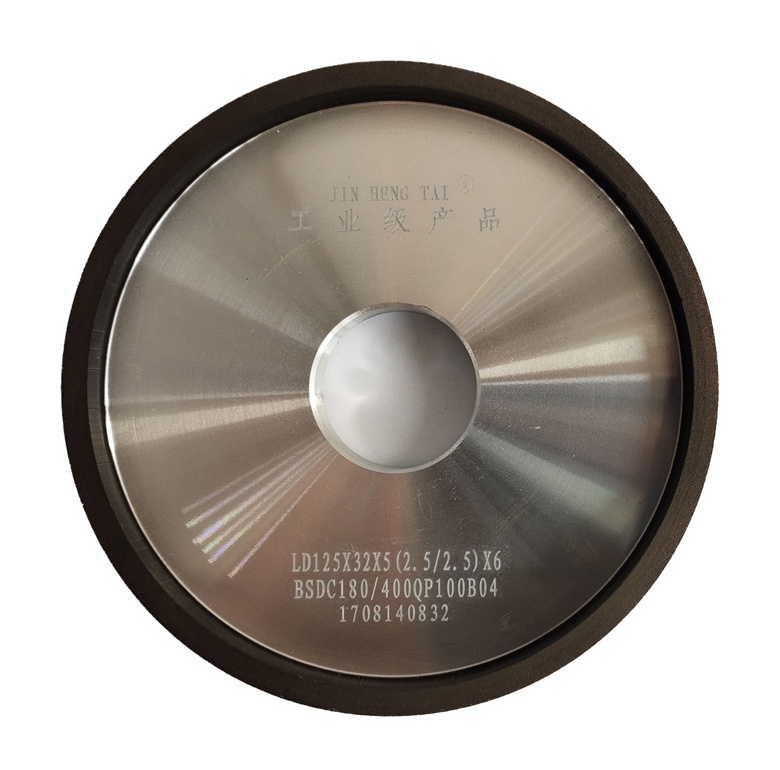

Diamond Grinding Wheel
125mm (5in) two grits resin bonded diamond grinding wheel
Resin bond diamond grinding wheel was divided into two parts, diamond working layer and aluminum matrix, working layer was combination by diamond powder and resin bond (resin powder and other mixed powder), and after fillers pressed under heat and pressure, solidify, then, firmly combined aluminum matrix, with a certain shape of diamond grinding tool.
Diamond materials
Double grits
|
Model
|
D(mm)
|
H(mm)
|
W(mm)
|
X(mm)
|
||||
|
LD(12A2)
|
100
|
20/25/32
|
5(2.5/2.5)
|
6
|
||||
|
|
125
|
16/20/32
|
5(2.5/2.5)
|
6
|
||||
|
|
125
|
16/20/32
|
3.6(1.8/1.8)
|
6
|
||||
|
|
140
|
16/20/32
|
5(3/2)
|
6
|
||||
|
We can customize any non-standard size, you just need to tell us the size or drawing.
|
|
|
|
|
||||
Product Advantage
1.High-quality raw material of synthetic diamond powder, which is manufactured by our own factory;2.
2.
High grinding efficiency, long working life;
3.
Good self-sharpening, lower grinding temperature, less blocking, less
workpiece
surface burn ;
4.
Grinding wheel has a certain elasticity, improving the surface roughness, used for grinding, semi-finish grinding, polishing,and other processes;
5.
The diamond grinding wheel is a shorter production cycle time, higher removal rate. Easily to make complex wheels;
6. The company has professional technology and equipment, easier to form a variety of complex surface resin diamond grinding wheels.
Application
Sharpening diagram
Diamond grinding wheel sharpens the face angle , top angel and side angel of the saw blade.
HARD grinding machine-face
HARD grinding machine-top
HARD grinding machine-side
VOLLMER grinding machine-face
VOLLMER grinding machine-side
TORSEL grinding machine-top
