Quick Details
-
Capacity:
-
250L~10000L
-
Certification:
-
CE ISO9001
-
RO membrane:
-
40-40In
-
Processing:
-
Pre-treatment+RO Desaliantion
-
Working pressure:
-
0.2-0.4 Mpa
-
Model:
-
UF-4040/8040
-
Filter Media:
-
Refined Quartz Sand
Quick Details
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Application:
-
Water Purification
-
Type:
-
Water Filter Parts
-
Capacity:
-
250L~10000L
-
Certification:
-
CE ISO9001
-
RO membrane:
-
40-40In
-
Processing:
-
Pre-treatment+RO Desaliantion
-
Working pressure:
-
0.2-0.4 Mpa
-
Model:
-
UF-4040/8040
-
Filter Media:
-
Refined Quartz Sand

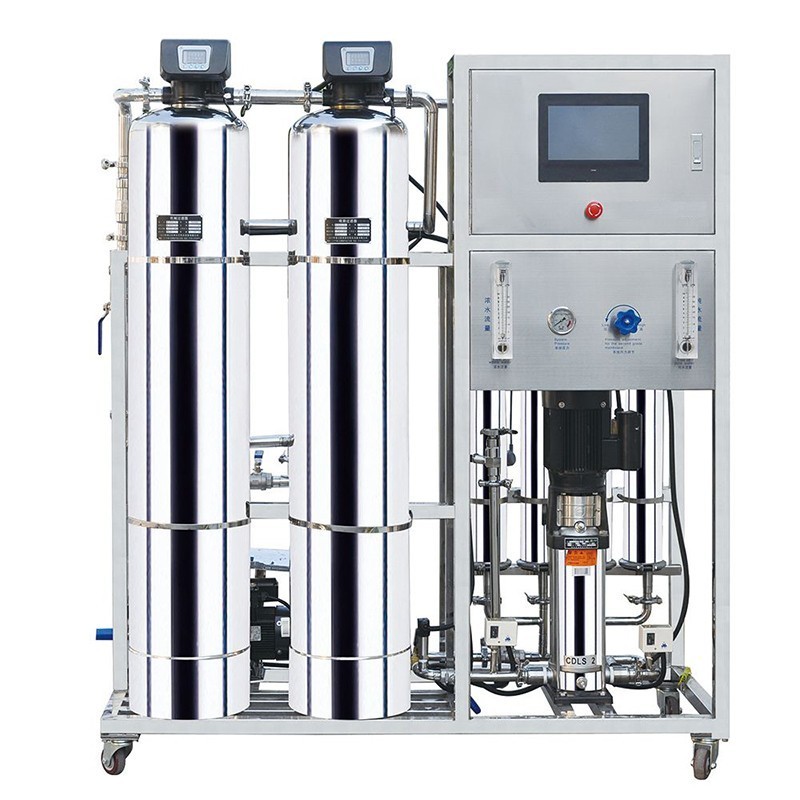

RO water purifier
Reverse osmosis (RO) is a water purification process in which water is forced through a semi-permeable membrane that removes 90-99% of tap water impurities. The result is water that is free of minerals and other contaminants. Membrane type determines the amount of dissolved solids a unit is capable of removing.
Configuration
Controls configuration options :
PLC / Time relay+ Control box
Membrane o ptions:
Dows/ Hydranautics/ Toray/ Vontron
Membrane housing:
Filter tank material options:
Glass Fiber Reinforced Plastics / Stainless steel
High pressure pump motor control options:
Nanfang/ Wilo
Instrumentation
Flow Meters transmitters Permeate, Concentrate
Conductivity transmitters Feed, Permeate
Temperature transmitter Permeate
Pressure transmitters After HPPump throttling valve
Prior to concentrate valve
pH/ORP control system (optional) Feed
Pressure indicator/switches: Pre & Post Cartridge Filter
HPPump discharge, post HPPump throttling valve,
Pre/post concentrate orifice, permeate line, Interstage
Parameter
|
Production Capacity |
1Ton(Customized from 100L/H to 50T/H) |
|
Voltage(V) |
380 |
|
Power(Kw) |
1.5KW |
|
Dimension(L*W*H) |
120×60×161cm |
|
Desalting rate |
98%-99.5% |
|
Warranty |
1 year |
Packaging: carton/ wooden case
Packaging quantity:
Size:
Shipping ways: by sea/ railway
Optional port: Chongqing/ Shanghai/ Shenzhen/ Guangzhou
Delivery time: 7-10 workdays after payment
