Within 15 days after the first payment
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
2000 KG
-
Modle:
-
3WF-200
-
Shape size:
-
2440*1010*885
-
Tank capacity:
-
200L
-
Work stress:
-
0.5-1MPa
-
Matched Power:
-
Gasoline engine
-
Rated power:
-
4kw
-
Rotate speed:
-
3600 r/min
-
Matched pump:
-
3 cylinder pump
-
Matching sprinkle:
-
Fan-shaped nozzle
-
Fan Type:
-
Axial flow
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Weiyi
-
Diameter:
-
540 inch
-
Weight:
-
2000 KG
-
Modle:
-
3WF-200
-
Shape size:
-
2440*1010*885
-
Tank capacity:
-
200L
-
Work stress:
-
0.5-1MPa
-
Matched Power:
-
Gasoline engine
-
Rated power:
-
4kw
-
Rotate speed:
-
3600 r/min
-
Matched pump:
-
3 cylinder pump
-
Matching sprinkle:
-
Fan-shaped nozzle
-
Fan Type:
-
Axial flow
Product Description

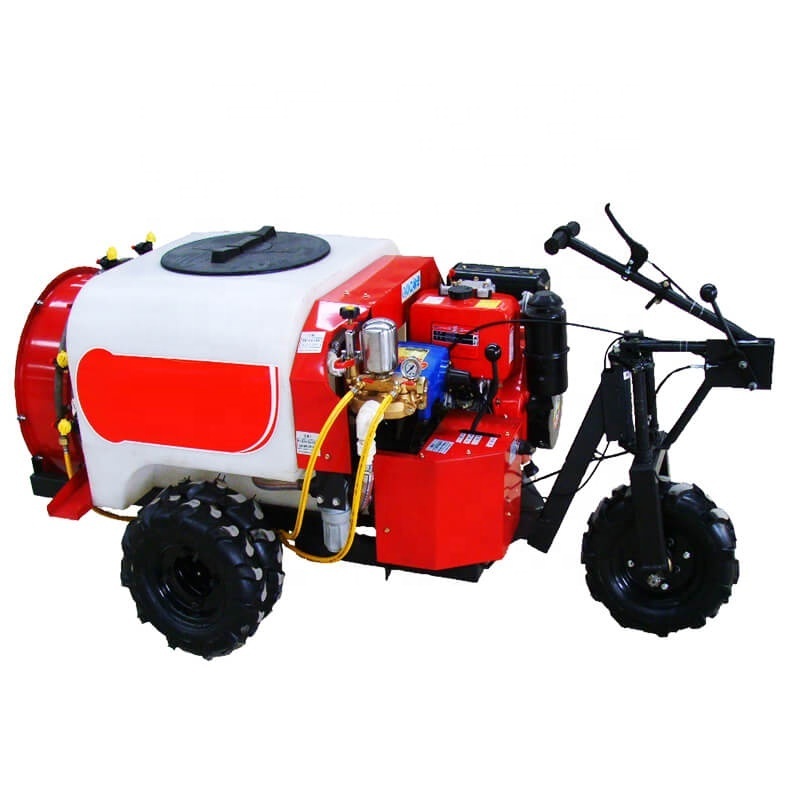

Hot selling agricultural sprayer for orchard/self - propelled air - feed sprayer/agricultural power sprayer
The spray width is 360 degrees wide, and the angles can be closed. The wind power can make the blades uniformly spray and the operation efficiency is high, and the operation process can be completed in the cab, saving time and labor
|
Size (mm)
|
2440*1010*885
|
|
Working type
|
Air travel
|
|
Tank capacity (L)
|
200
|
|
Work stress (Mpa)
|
0.5-1MPa
|
|
Matched power (Diesel engine)
|
9hp (6.6KW)
|
|
/
|
Rotating speed 3600 r/min
|
|
Matched power (Gasoline engine)
|
8.5KW
|
|
|
Rotating speed 3600 r/min
|
|
Combined pump type
|
3 cylinder pump
|
|
Work stress
|
2-3.5MPa
|
|
Flow
|
10-15L/min
|
|
Rated speed
|
500-800r/min
|
|
Matching sprinkler
|
Fan-shaped nozzle
|
|
Number of sprinklers
|
8
|
|
Spray quantity single
|
Injection volume at pressure 0.5Mpa: VP110-02-9
(yellow)
1.04L/min
|
|
Fan type
|
Axial flow
|
|
Fan speed
|
1800r/min
|
|
Fan impeller diameter
|
540mm
|
|
Spray width
|
radius≥6mm
|
|
Working speed
|
≥2.6km/h
|
Advantages
1. Equipped with high-grade combination valve, set pressure regulation, reversing, segmenting control, filtration, pressure display as one, easy to use four levels of filtration, not blocking nozzle.
2. High configuration, reliable performance.
3. High atomization uniformity, can meet European and American standards.
4. The mixing system adopts two-way configuration of reflux and high-pressure mixing, which can fully guarantee the uniformity of the liquid, so as to achieve the best effect of insect control and disease prevention.
5. Tractor-type pneumatic orchard spraying machine is suitable for fast operation of various orchards.
