Quick Details
-
Brand Name:
-
Yangtze Solar
-
Model Number:
-
YS300M-60
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1640*992*35 mm
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO, CE TUV
-
Solar cell:
-
Mono 156*156 Cell
-
Junction Box:
-
IP67 Rated
-
Frame:
-
Anodized Aluminium Alloy
-
Color:
-
Blue & Black
-
Front Glass:
-
High Transparency Temperd Glass
-
Cable:
-
900mm PV Cable
-
OEM Order:
-
Acceptable
Quick Details
-
Type:
-
PERC
-
Panel Efficiency:
-
19%
-
Warranty:
-
25 YEARS, 25 years
-
Brand Name:
-
Yangtze Solar
-
Model Number:
-
YS300M-60
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1640*992*35 mm
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO, CE TUV
-
Solar cell:
-
Mono 156*156 Cell
-
Junction Box:
-
IP67 Rated
-
Frame:
-
Anodized Aluminium Alloy
-
Color:
-
Blue & Black
-
Front Glass:
-
High Transparency Temperd Glass
-
Cable:
-
900mm PV Cable
-
OEM Order:
-
Acceptable
Product Description

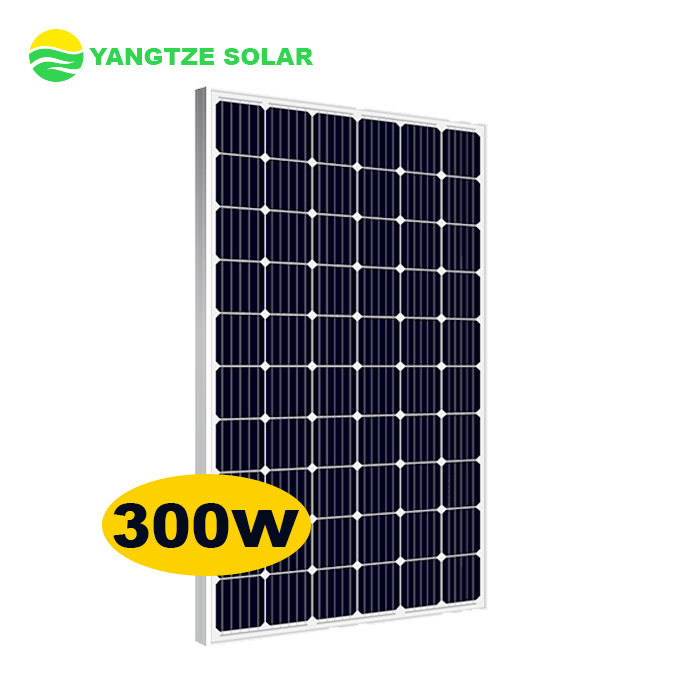

High efficiency top one 280w 290 watt 300 watt 310w monocrystalline solar panels
| Model | YS280M-60 | YS285M-60 | YS290M-60 | YS295M-60 | YS300M-60 | YS305M-60 | YS310M-60 |
| Rated Maximum Power at STC | 280W | 285W | 290W | 295W | 300W | 305W | 310W |
| Maximum Power Voltage (Vmp) |
31.7V |
32.0V | 32.20V | 32.42V | 32.67V | 32.79V | 32.91V |
| Maximum Power Current (Imp) | 8.83A | 8.91A | 9.01A | 9.10A | 9.19A | 9.30A | 9.42A |
| Open Circuit Voltage ( Voc) | 38.9V | 38.2V | 38.4V | 38.6V | 38.8V | 38.95V | 39.13V |
| Short Circuit Current (Isc) | 9.34A | 9.58A | 9.68A | 9.75A | 9.88A | 10.03A | 10.15A |
| Module Efficiency | 17.24% | 17.60% | 17.90% | 18.20% | 18.44% | 18.74% | 19.05% |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | |||||||
| Mechanical Parameters | |||||||
| Cell Type | Mono-crystalline 156x156mm (6inch) | ||||||
| No. of Cells | 60 (6x10) | ||||||
| Dimension | 1640x990x35/40mm | ||||||
| Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | ||||||
| Junction Box | IP65&IP67 Rated | ||||||
| Output Cable | Section Size: 4mm² , Length: 900mm | ||||||
| Frame | Anodized Aluminum Alloy | ||||||
| No. of Bypass Diodes | 3&6 | ||||||
| Connector | MC4 Compatible | ||||||
| Working Conditions | |||||||
| Maximum System Voltage |
DC 1000V(IEC) / 1500V(IEC) / 600V(UL) |
||||||
| Operating Temperature | -40°c~+85°c | ||||||
| Maximum Series Fuse | 15A | ||||||
| NOCT | 45±2°c | ||||||
| Application Class | Class A | ||||||
| Temperature Coefficient | |||||||
| Temperature Coefficient of Pmax | -0.39%/°c | ||||||
| Temperature Coefficient of Voc | -0.29%/°c | ||||||
| Temperature Coefficient of Isc | +0.05%/°c | ||||||
