Quick Details
-
Ejector Stroke(mm):
-
180 mm
-
Ejector Force(kN):
-
2 kN
-
Theoretical Shot Volume(cm³):
-
2200 cm³
-
Injection Rate (g/s):
-
145 g/s
-
Injection Weight (g):
-
100 g
-
Screw Speed (rpm):
-
0 - 215 rpm
-
Screw diameter (mm):
-
32 mm
-
Distance between Tie Bars:
-
Other
-
Weight (KG):
-
650 kg
-
Place of Origin:
-
Henan,China(Mainland)
-
Open Stroke(mm):
-
370 mm
-
Model Number:
-
HT-ZS15
-
Brand Name:
-
HENTO
-
Power (kW):
-
6.8 kW
-
Product name:
-
Injection Moulding Machine
-
Shot weight:
-
100g(ps)
-
Injection pressure:
-
2200kgf/cm2
-
Injection rate:
-
145mm
-
Screw route:
-
105mm
-
Screw speed:
-
0-215rpm
-
Nozzle contact force:
-
4.45T
-
Nozzle retraction nozzle:
-
130mm
-
Platen size:
-
550*390mm
-
Distance between tie bere:
-
370*225mm
Quick Details
-
Plasticizing Capacity(g/s):
-
15
-
Mold Height(mm):
-
140 - 190 mm
-
Ejector Number:
-
Other
-
Ejector Stroke(mm):
-
180 mm
-
Ejector Force(kN):
-
2 kN
-
Theoretical Shot Volume(cm³):
-
2200 cm³
-
Injection Rate (g/s):
-
145 g/s
-
Injection Weight (g):
-
100 g
-
Screw Speed (rpm):
-
0 - 215 rpm
-
Screw diameter (mm):
-
32 mm
-
Distance between Tie Bars:
-
Other
-
Weight (KG):
-
650 kg
-
Place of Origin:
-
Henan,China(Mainland)
-
Open Stroke(mm):
-
370 mm
-
Model Number:
-
HT-ZS15
-
Brand Name:
-
HENTO
-
Power (kW):
-
6.8 kW
-
Product name:
-
Injection Moulding Machine
-
Shot weight:
-
100g(ps)
-
Injection pressure:
-
2200kgf/cm2
-
Injection rate:
-
145mm
-
Screw route:
-
105mm
-
Screw speed:
-
0-215rpm
-
Nozzle contact force:
-
4.45T
-
Nozzle retraction nozzle:
-
130mm
-
Platen size:
-
550*390mm
-
Distance between tie bere:
-
370*225mm

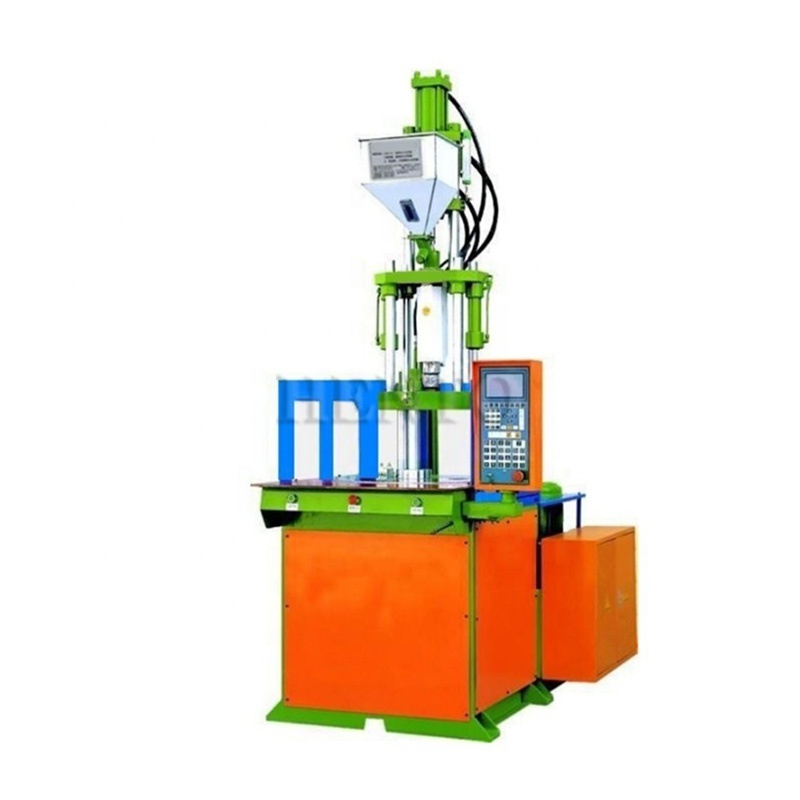

Long Service Life Injection Molding Machine For Mobile Case / Silicone Injection Molding Machine / Injection Moulding Machine
1. This machine uses screw pre-plastication, mould closure all by all-hydraulic pressure, double-mould alternative forming way. And the shoulders are smooth, beautiful and firm.
2. It is equipped with produced push-out device, this can put the tubes out of the mold automatically, ease worker’s intensity and increase the working efficiency.
(1).Vertical clamping and vertical injection design;
(2).Appropriate injection;
(3).Tight locking;
(4).Placement;
(5).Easy removal;
(6).Better injection;
(7).Fast injection.
Product Features
1.Straight screw ejected assembly.
2.Two(three)-phase temperature,ejected speed,backing pressure and screw speed is suitable for various plastic toconfectioned.
3.Fixed bottom mold and loose top mold type is suitable for plastinjection molding of inserts and it is also equipped with anejector for finished products.
4.Low-pressure closed die assembly can protect the safety of die.
|
Model |
HT-ZS 15 | HT-ZS2 5 |
|||
|
Injection system |
Screw Diameter |
Mm |
32 |
28 |
|
Shot weight |
g(ps) |
100 |
58 |
|
|
Injection pressure |
kgf/cm2 |
2200 |
1090 |
|
|
Injection rate |
mm |
145 |
67 |
|
|
Screw route |
mm |
105 |
105 |
|
|
Screw speed |
Rpm |
0-215 |
0-200 |
|
|
Nozzle c ontact f orce |
T |
4.45 |
4.45 |
|
|
Nozzle r etraction n ozzle |
mm |
130 |
130 |
|
|
Clamping unit |
Clamping f orce |
T |
35 |
25 |
|
Platen s ize |
m m |
550*390 |
480*310 |
|
|
Distance b etween t ie b ere |
m m |
370*225 |
310*170 |
|
|
Min. m old h eight |
m m |
140/190 |
100/30 |
|
|
Opening s troke |
m m |
180 |
180 |
|
|
Max. o pening m old d istance |
m m |
320/370 |
280/210 |
|
|
Ejetor f orce |
T |
2 |
1.3 |
|
|
Ejetor s toke |
m m |
35 |
35 |
|
|
Others |
Hydraulic pressure |
Kgf/cm2 |
140 |
140 |
|
P ump output |
1/min |
33 |
100 |
|
|
Barrel h eating p ower |
Kw |
2.8 |
1.8 |
|
|
Pump m otor p ower |
Kw /hp |
4/5HP |
3.75/5HP |
|
|
Total p ower |
Kw |
6.8 |
5.5 |
|
|
Machine size |
m |
1.35*0.92*2.06 |
1.4*0.9*2.37 |
|
|
Machine weight |
kg |
1350 |
0.68 |
|
If you need further information, please contact us freely, we will do our best to cooperate with you .
