Quick Details
-
Model Number:
-
FVH05-A
-
Warranty:
-
2 years
-
Type:
-
IR Hand Wave Sensor, ir sensor switch
-
Power:
-
12V/60W;24V/100W, 12V/60W;24V/100W
-
Sensing Range:
-
<8 CM
-
Product Name:
-
IR Hand Wave Sensor
-
Input/Output:
-
DC12V/24V
-
Output cable length:
-
15cm
-
Input cable length:
-
150cm
-

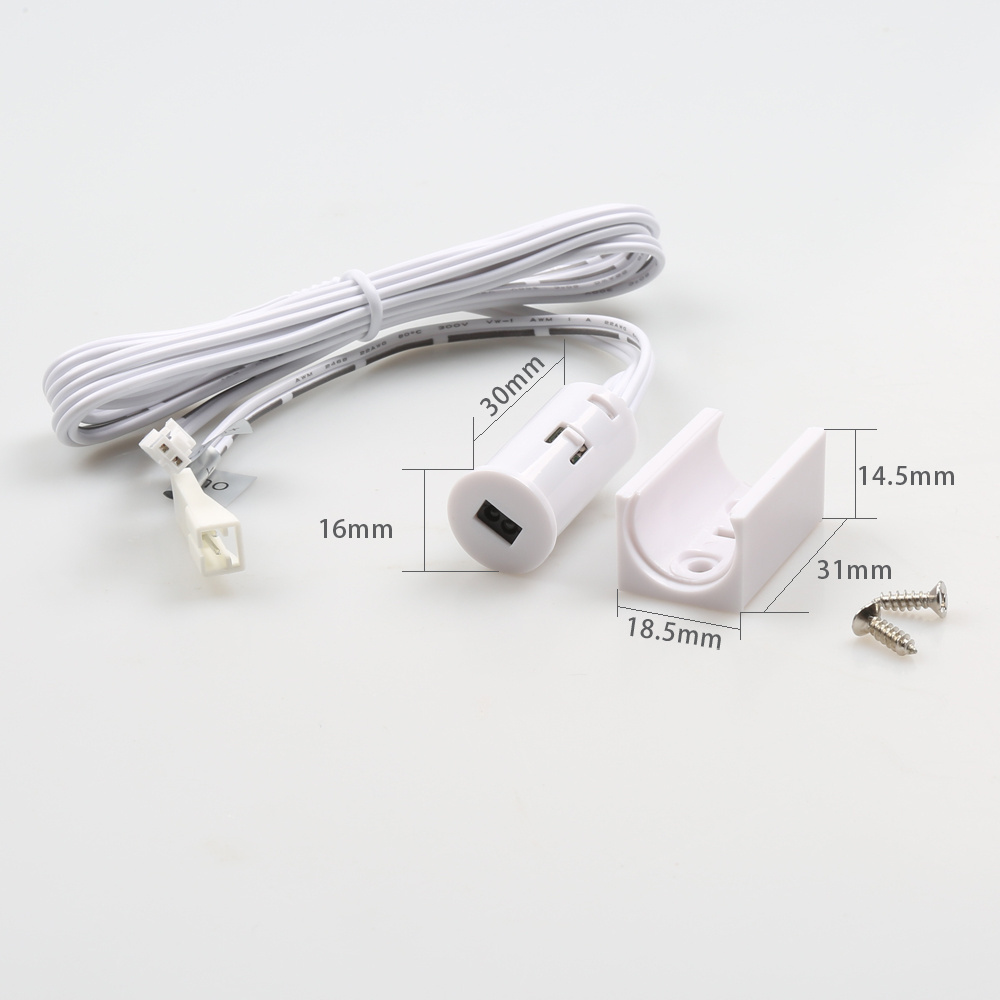

product size:
-
30*16*16mm
-
Detection Range:
-
<8 cm
-
Application:
-
LED strip / aluminum strip
-
warranty period:
-
2year
-
Certification:
-
CE/ROHS/FCC
Quick Details
-
Voltage:
-
DC12V/24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FICLUX
-
Model Number:
-
FVH05-A
-
Warranty:
-
2 years
-
Type:
-
IR Hand Wave Sensor, ir sensor switch
-
Power:
-
12V/60W;24V/100W, 12V/60W;24V/100W
-
Sensing Range:
-
<8 CM
-
Product Name:
-
IR Hand Wave Sensor
-
Input/Output:
-
DC12V/24V
-
Output cable length:
-
15cm
-
Input cable length:
-
150cm
-
product size:
-
30*16*16mm
-
Detection Range:
-
<8 cm
-
Application:
-
LED strip / aluminum strip
-
warranty period:
-
2year
-
Certification:
-
CE/ROHS/FCC
*
The
FVH
series
hand sweep
contactless
sensor
is designed for switching on / off and dimming
12/24 V
LED strips insta
lled in Cabinet
. The device is controlled without direct physical contact using a palm movement.
*
To function properly the IR sensor must be open and exposed.
When the voltage is applied, the device is set to standby mode. The lighting is turned off.
Switching on and off is carried out by a single raising of the hand to the place of installation of the switch in the fron of the sensor. Dimming of lighting occurs when you hold your hand in the glow area of the switch indicator.
Switching on and off is carried out by a single raising of the hand to the place of installation of the switch in the fron of the sensor. Dimming of lighting occurs when you hold your hand in the glow area of the switch indicator.
|
Product Name
|
Hand Sensor Switch
|
|
|
|
Model No
|
FVH05-A
|
VD01Y-B2
|
|
|
Function
|
Hard on/off
|
Fade on/off
|
|
|
Input/Output
|
DC12V/24V
|
|
|
|
Power
|
12V/60W;24V/100W
|
|
|
|
Current
|
5A Max
|
|
|
|
Product Size
|
30*Dia 16mm
|
|
|
|
Detection range
|
< 8cm
|
|
|
|
Product Color
|
White / Black
|
|
|
|
Warranty Period
|
2years
|
|
|
ATTENTION!
Install, connect, and maintain the switch only when the power is turned off.
ATTENTION!
Do not use acidic fluxes for solderin
g! This
puts the device out of service and is not a warranty case!
