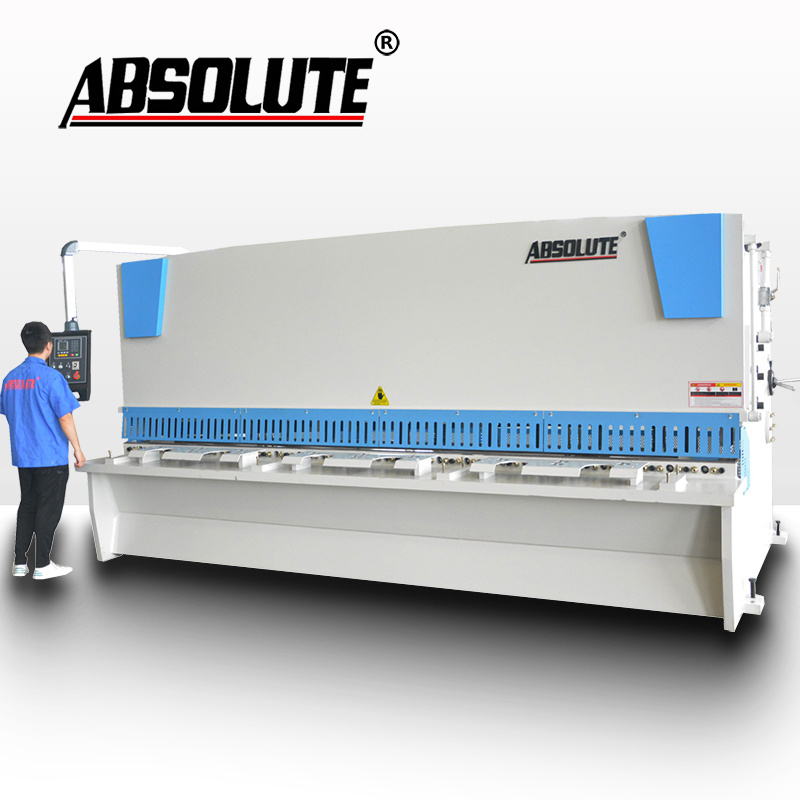

Quick Details
-
Blade Length (mm):
-
2500 mm
-
Backgauge Travel (mm):
-
10 - 600 mm
-
Throat Depth (mm):
-
200 mm
-
Brand Name:
-
ABSOLUTE
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
3000 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
5.5
-
Dimension(L*W*H):
-
2600*1520*2000mm
-
Year:
-
2024
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
NC Control system:
-
E21S
-
Main Motor:
-
22KW
-
Cutting Capacity:
-
20mm
-
Cutting angle:
-
0.5-2.5°
-
Electrical components:
-
Schneider Electrical from French
-
Application:
-
Industrial Metal Cutting
Quick Details
-
Max. Cutting Width (mm):
-
2500
-
Max. Cutting Thickness (mm):
-
4 mm
-
Shearing Angle:
-
1
-
Blade Length (mm):
-
2500 mm
-
Backgauge Travel (mm):
-
10 - 600 mm
-
Throat Depth (mm):
-
200 mm
-
Brand Name:
-
ABSOLUTE
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
3000 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
5.5
-
Dimension(L*W*H):
-
2600*1520*2000mm
-
Year:
-
2024
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
NC Control system:
-
E21S
-
Main Motor:
-
22KW
-
Cutting Capacity:
-
20mm
-
Cutting angle:
-
0.5-2.5°
-
Electrical components:
-
Schneider Electrical from French
-
Application:
-
Industrial Metal Cutting
Products Description
◆Using UG (finite element) analysis method, computer-aided optimization design.
◆The fuselage adopts an overall steel plate welded structure, which has good strength, stiffness and vibration resistance.
◆Tempering is used to eliminate internal stress.
◆The overall frame is rust removed by sand blasting and sprayed with anti-rust paint.
◆There is an auxiliary knife holder on the work surface to facilitate micro-adjustment of the blade.
◆There is a feeding roller ball installed on the work surface, which is easy to operate.
◆The blade gap adjustment adopts a stepless adjustment mechanism to adapt to the shearing needs of different plate thicknesses and materials.
◆The rectangular lower blade can be used for cutting with four cutting edges, extending the service life of the blade.
Adjusting the shearing stroke can not only improve the processing efficiency, but also realize the segmented shearing function.
◆The number of cuts is automatically counted, reducing the tedious counting work.
|
Accessories
|
factory
|
|
Induction motor
|
Siemens
|
|
gear pump
|
SUNNY
|
|
Hydraulic valve group
|
Bosch Rexroth
|
|
Lead screw
|
Taiwan
|
|
AC contactor
|
Schneider
|
|
Pipe joint ferrule
|
Germany
|
|
E21 CNC system
|
Eston
|
|
Seals
|
Japan NOK
|
Standard system E21S
• Backgauge control, control ordinary motors or frequency converters.
• Intelligent positioning, dual programmable digital outputs.
• Workpiece counting, 40 program storage, 25 work steps per program.
• Unilateral positioning, retreat function; one-click backup and recovery of parameters.
• Metric and English conversion, Chinese and English.
• LCD display.
OPTIONAL CONTROLER
E21S(ESTUN)
Backgauge control;
Control ordinary motors or inverters;
Intelligent posi- tioning;
Dual programmable digital output;
Workpiece count; 40 program storage, Each program has 25steps;Unilateral positioning;
Metric system.Yield function;
One-key backup and restore of parameters;
E200PS(ESTUN)
CAN bus control X axis sevo;Shear
control;Dual programmable digital
output;40 program storage, each
program has 25 steps; Unilateral
positioning;Built-in cutting time,
retreat delay; One-key backup and
restore of parameters; Full-function
online diagnosis, real-time alarm
prompt Reserve a safe, supporting
material interface;
Color LCD HD display;
Metric/English;Chinese-English.
DAC-310T (Delem)
Bright LCD 128 x 64 display
Backgauge control
Gap control
Stroke length limitation
Actual and Programmed position
visualization.
Stock counter
Programmable up to 100 steps
Panel-based housing
Servo control / inverter / 2-speed AC control
Backgauge control
Gap control
Stroke length limitation
Actual and Programmed position
visualization.
Stock counter
Programmable up to 100 steps
Panel-based housing
Servo control / inverter / 2-speed AC control
STRESS RELIEF
KUKACNC quillotine shearing machine features a rigid frame for minimumdeflection under the load. Machine welding is made by welding apparatus &welding robots. After the welding,we make a stress relief process byhigh-temperature tempering to improve the mechanical properties of materials,reduce deformation and rebound, improve the stability and durability of theworkpiece, and machine frame sensitivity is protected for a long lifetime.
Pressure cylinder
The pressing device consists of multiple sets of pressing cylinders installed on the bottom of the panel. The pressing force is proportional to the plate thickness. After the shearing is completed, it is reset with the help of spring tension. The pressing device is stable, safe and reliable, and can well ensure the plate. The control of material shearing accuracy and pressing pressure adopts a separate system.
Tool holder arc motion
The tool holder is a fully enclosed welded structural member with high torsion resistance and good rigidity. It is connected to the frame through the support shafts at both ends and is equipped with a shearing cylinder and a return cylinder. The shearing cylinder is two plunger-type hydraulic cylinders, which are fixed on the left and right columns respectively. At the same time, there are two cylinders for the return stroke of the tool holder. During operation, the pressure oil pushes the plunger of the cylinder to move downward, causing the tool holder to shear downwards, and at the same time compresses the nitrogen in the cylinder; during the return trip, the hydraulic system is unloaded, and the nitrogen in the cylinder expands to make the tool holder return. The entire tool holder performs reciprocating pendulum motion with the pivot axis as the center to complete the shearing work.
Details Images
Rexroth Hydraulic Valve
Features the adoption of an international brand Rexroth hydraulic valve block for optimal hydraulic performance. Thanks to our oil pressure overload protection system, oil leakage and valve jamming are rare occurrences on our machine.We provide real-time oil pressure monitoring to ensure smooth oil circuit operations and stable equipment performance.
High pressure ferrule type oil pipe joint
Seamless steel pipes and sleeve-type joints are used to connect, which is resistant to High pressure, no oil leakage, easy to maintain。
Electrical System
Our machine adopt Schneider electrical components. The high quality electric parts can make the machine performing well even the electricity is not stable and customers can easily get the replacement anywhere in the world.
Siemens Main Motor
The powerful Siemens motor provides stable shear force guarantee the machine service life, and low noise in work.
Physical picture
Some available colors
Technical Specifications
|
Model
|
Cutting Thickness
|
Cutting Length
|
Cutting Angle
|
Stroke
|
Main
Power
|
Approx Weight
|
Material Intension
|
Cutting Times
|
Overall Dimension
（L x W x H)
|
|
Type
|
(mm)
|
(mm)
|
( ° )
|
(mm)
|
(Kw)
|
( Kg)
|
(Kn/Cm)
|
(T/Min)
|
(mm)
|
|
4x2500
|
4
|
2500
|
1°30‘
|
20~600
|
5.5
|
3500
|
≤450
|
16
|
3.3x1.6x1.6m
|
|
4x3200
|
4
|
3200
|
1°30‘
|
20~600
|
5.5
|
4500
|
≤450
|
14
|
3.8x1.6x1.6m
|
|
4x4000
|
4
|
4000
|
1°30‘
|
20~600
|
5.5
|
6500
|
≤450
|
10
|
4.6x1.7x1.7m
|
|
4x6000
|
4
|
6000
|
1°30‘
|
20~600
|
7.5
|
11000
|
≤450
|
8
|
6.5x2.1x3.2m
|
|
6x2500
|
6
|
2500
|
1°30‘
|
20~600
|
7.5
|
5000
|
≤450
|
14
|
3.4x1.6x1.6m
|
|
6x3200
|
6
|
3200
|
1°30‘
|
20~600
|
7.5
|
6000
|
≤450
|
12
|
3.8x1.6x1.6m
|
|
6x4000
|
6
|
4000
|
1°30‘
|
20~600
|
7.5
|
8200
|
≤450
|
8
|
4.6x1.7x1.7m
|
|
6x5000
|
6
|
5000
|
1°30‘
|
20~600
|
11
|
10500
|
≤450
|
6
|
5.4x1.8x1.9m
|
|
6x6000
|
6
|
6000
|
1°30‘
|
20~600
|
11
|
16500
|
≤450
|
5
|
6.5x2.1x2.3m
|
|
8x2500
|
8
|
2500
|
1°30‘
|
20~600
|
7.5
|
6000
|
≤450
|
10
|
3.4x1.7x1.7m
|
|
8x3200
|
8
|
3200
|
1°30‘
|
20~600
|
7.5
|
7200
|
≤450
|
8
|
3.9x1.7x1.7m
|
|
8x4000
|
8
|
4000
|
1°30‘
|
20~600
|
7.5
|
8800
|
≤450
|
8
|
4.6x1.7x1.7m
|
|
8x5000
|
8
|
5000
|
1°40‘
|
20~600
|
11
|
11500
|
≤450
|
8
|
5.4x2.1x2.0m
|
|
8x6000
|
8
|
6000
|
1°40‘
|
20~600
|
11
|
18000
|
≤450
|
8
|
6.5x2.1x2.4m
|
|
10x2500
|
10
|
2500
|
2°
|
20~600
|
11
|
7300
|
≤450
|
9
|
3.4x1.7x1.7m
|
|
10x3200
|
10
|
3200
|
2°
|
20~600
|
11
|
8000
|
≤450
|
9
|
3.9x1.7x1.7m
|
|
10x4000
|
10
|
4000
|
2°
|
20~600
|
11
|
12050
|
≤450
|
8
|
4.7x2.1x2.0m
|
|
10x6000
|
10
|
6000
|
2°
|
20~1000
|
15
|
2400
|
≤450
|
5
|
6.5x2.1x2.3m
|
|
12x2500
|
12
|
2500
|
2°
|
20~600
|
18.5
|
9000
|
≤450
|
9
|
3.5x2.2x2.0m
|
|
12x3200
|
12
|
3200
|
2°
|
20~600
|
18.5
|
10800
|
≤450
|
9
|
3.9x2.2x2.0m
|
|
12x4000
|
12
|
4000
|
2°
|
20~1000
|
18.5
|
13000
|
≤450
|
8
|
4.7x2.2x2.0m
|
|
12x5000
|
12
|
5000
|
2°
|
20~1000
|
18.5
|
16000
|
≤450
|
6
|
5.9x2.2x2.0m
|
|
12x6000
|
12
|
6000
|
2°
|
20~1000
|
18.5
|
29500
|
≤450
|
5
|
6.9x2.6x2.7m
|
|
16x2500
|
16
|
2500
|
2°20’
|
20~600
|
22
|
11000
|
≤450
|
9
|
3.5x2.2x2.0m
|
|
16x3200
|
16
|
3200
|
2°20’
|
20~600
|
22
|
13000
|
≤450
|
8
|
3.9x2.2x2.0m
|
|
16x4000
|
16
|
4000
|
2°20’
|
20~1000
|
22
|
16300
|
≤450
|
8
|
4.7x2.2x2.2m
|
|
16x5000
|
16
|
5000
|
2°20’
|
20~1000
|
22
|
20000
|
≤450
|
6
|
5.9x2.6x2.7m
|
|
16x6000
|
16
|
6000
|
2°20’
|
20~1000
|
22
|
36000
|
≤450
|
5
|
6.9x2.7x2.7m
|
|
20x2500
|
20
|
2500
|
2°30’
|
20~1000
|
22
|
15800
|
≤450
|
8
|
3.6x2.3x2.5m
|
|
20x3200
|
20
|
3200
|
2°30’
|
20~1000
|
22
|
18500
|
≤450
|
8
|
4.2x2.4x2.7m
|
|
20x4000
|
20
|
4000
|
2°30’
|
20~1000
|
22
|
21500
|
≤450
|
5
|
4.9x2.6x2.7m
|
