Quick Details
-
Brand Name:
-
LEYU
-
Model Number:
-
OPIP-1000C-24
-
Output Frequency:
-
50~60HZ
-
Size:
-
280x170x120mm
-
Color:
-
silver
-
MOQ:
-
1 pc
-
Dimension:
-
280x170x120mm
-
Certificate:
-
CE ROHS, CE
-
Warranty:
-
18 Months
-
Wave form:
-
Pure Sine Wave
-
OEM:
-
yes
-
Payment:
-
T/T, Paypal, L/C
-
Keywords:
-
solar inverter
Quick Details
-
Output Current:
-
0.8A
-
Customized support:
-
YES
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEYU
-
Model Number:
-
OPIP-1000C-24
-
Output Frequency:
-
50~60HZ
-
Size:
-
280x170x120mm
-
Color:
-
silver
-
MOQ:
-
1 pc
-
Dimension:
-
280x170x120mm
-
Certificate:
-
CE ROHS, CE
-
Warranty:
-
18 Months
-
Wave form:
-
Pure Sine Wave
-
OEM:
-
yes
-
Payment:
-
T/T, Paypal, L/C
-
Keywords:
-
solar inverter
Product Description
|
Model
|
OPIUP-1K-1
|
OPIUP-1K-1
|
OPIUP-1K-1
|
OPIUP-1K-2
|
OPIUP-1K-2
|
OPIUP-1K-2
|
|||||
|
Rated power
|
1000W
|
|
|
|
|
|
|||||
|
Peak power
|
2000W
|
|
|
|
|
|
|||||
|
Input voltage
|
DC12V
|
DC24V
|
DC48V
|
DC12V
|
DC24V
|
DC48V
|
|||||
|
Output voltage
|
100VAC or 110VAC or 120VAC±5%
|
|
|
220VAC or 230VAC or 240VAC±5%
|
|
|
|||||
|
Unload current less than
|
0.8A
|
0.5A
|
0.2A
|
0.8A
|
0.5A
|
0.2A
|
|||||
|
Output frequency
|
50Hz±0.5Hz or 60Hz±0.5Hz
|
|
|
|
|
|
|||||
|
Output waveform
|
Pure Sine Wave
|
|
|
|
|
|
|||||
|
Waveform distortion
|
THD<3%(Linear load)
|
|
|
|
|
|
|||||
|
USB port
|
5V 1A
|
|
|
|
|
|
|||||
|
Max.efficiency
|
90%
|
|
|
|
|
|
|||||
|
Input voltage range
|
10-15.5V
|
20-31V
|
40-61V
|
10-15.5V
|
20-31V
|
40-61V
|
|||||
|
Low voltage alarm
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
|||||
|
Low voltage protection
|
10±0.5V
|
20±0.5V
|
40±15V
|
10±0.5V
|
20±0.5V
|
40±15V
|
|||||
|
Over voltage protection
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
|||||
|
Low voltage recover
|
13±0.5V
|
24±0.5V
|
48±1V
|
13±0.5V
|
24±0.5V
|
48±1V
|
|||||
|
Over voltage recover
|
14.8V±0.5V
|
29.5V±0.5V
|
59V±1V
|
14.8V±0.5V
|
29.5V±0.5V
|
59V±1V
|
|||||
|
Protection function
|
Low voltage
|
|
Alarm at first, voltage continously reduce. LED Red light on & shut sown.
|
|
|
|
|||||
|
|
Over voltage
|
|
LED Red light on, shut down
|
|
|
|
|||||
|
|
Over load
|
|
LED Red light on, shut down
|
|
|
|
|||||
|
|
Over temperature
|
|
Alarm at first, tempurature continously rise.LED Red light on & shut sown
|
|
|
|
|||||
|
|
Short circuit
|
|
LED Red light on
|
|
|
|
|||||
|
|
Input reverse polarity
|
|
Fuse burn-out
|
|
|
|
|||||
|
Working temperature
|
-10°- +50°
|
|
|
|
|
|
|||||
|
Storage temperature
|
-30°- +70°
|
|
|
|
|
|
|||||
|
Dimension(mm)
|
280x170x120mm
|
|
|
|
|
|
|||||
|
Packing(mm)
|
410x220x170mm
|
|
|
|
|
|
|||||
|
Net./gross weight(g)
|
3600/4310g
|
|
|
|
|
|
|||||
|
QTY/Ctn
|
4 Pcs
|
|
|
|
|
|
|||||
|
Meas./Ctn(mm)
|
430x375x460mm
|
|
|
|
|
|
|||||
|
Gross weight/Ctn(g)
|
17900g
|
|
|
|
|
|
|||||
|
Warranty
|
2 years
|
|
|
|
|
|
|||||
|
Configuration
|
Standard
|
|
|
|
|
|
|||||
|
Cooling method
|
Intelligent air cooling
|
|
|
|
|
|
|||||

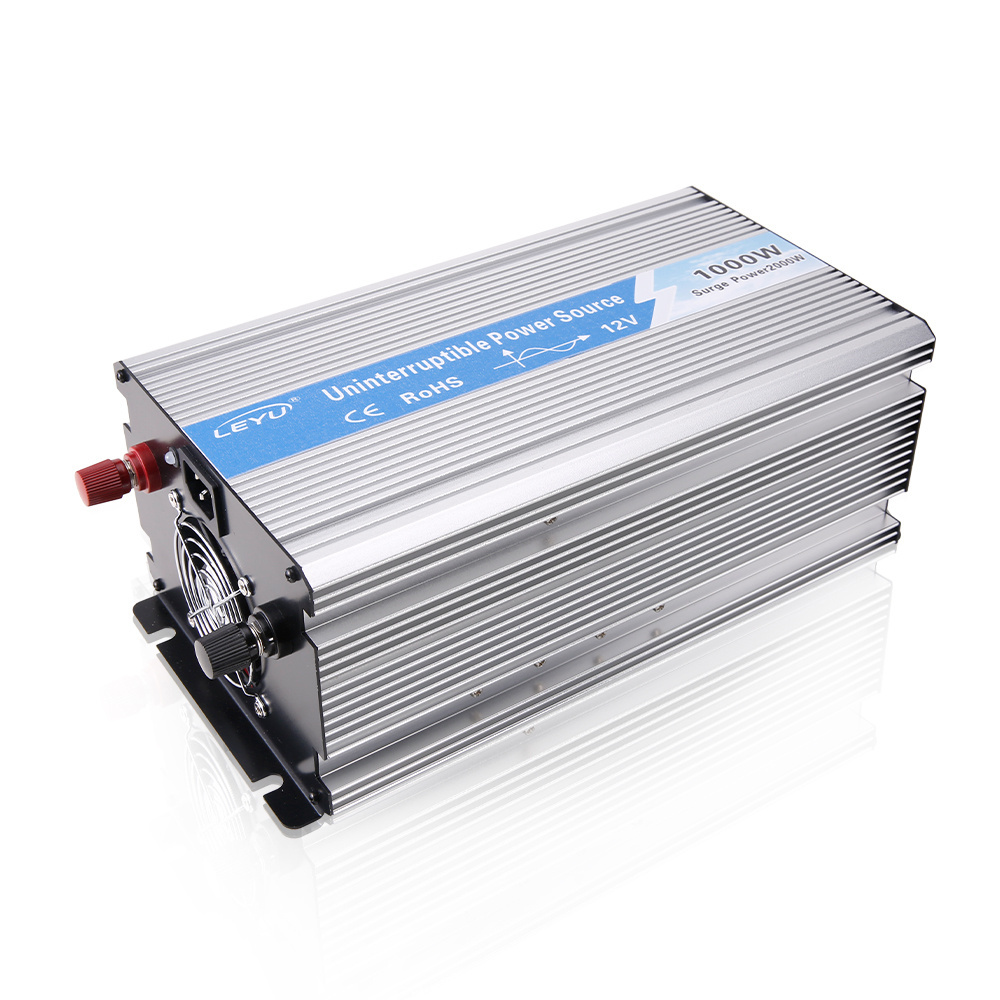

Details Images
