Quick Details
-
Model Number:
-
Q10-B
-
Brand Name:
-
BEST
-
product name:
-

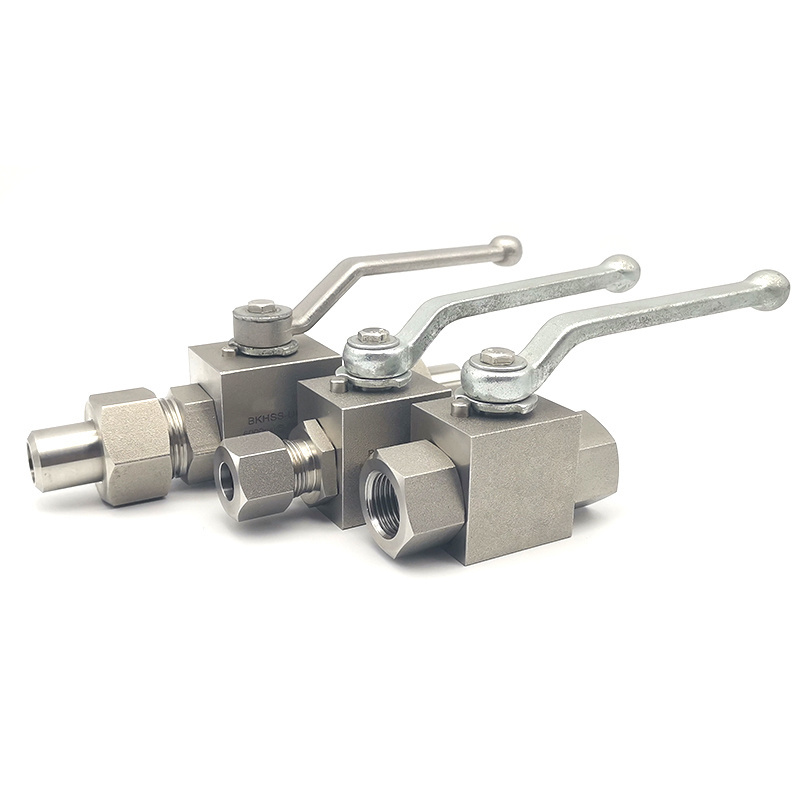

High Pressure ball valve
-
nominal pressure:
-
High Pressure
-
connection:
-
thread
-
function:
-
On-off
-
valve body material:
-
stainless steel
-
sealing material of valve seat:
-
PTFE, PPL, PEEK, metal sealing
-
valve stem packing:
-
PTFE
-
valve spool material:
-
stainless steel
-
valve stem material:
-
stainless steel
-
MOQ:
-
1
Quick Details
-
Port Size:
-
1/4"~4"
-
Warranty:
-
1 year
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
Q10-B
-
Brand Name:
-
BEST
-
product name:
-
High Pressure ball valve
-
nominal pressure:
-
High Pressure
-
connection:
-
thread
-
function:
-
On-off
-
valve body material:
-
stainless steel
-
sealing material of valve seat:
-
PTFE, PPL, PEEK, metal sealing
-
valve stem packing:
-
PTFE
-
valve spool material:
-
stainless steel
-
valve stem material:
-
stainless steel
-
MOQ:
-
1
More Products
Products Description
|
Manufacturer
|
Item
|
Size
|
Customized support
|
Place of Origin
|
|
BEST
|
ball valve
|
DN06~100
|
OEM
|
Shanghai,China
|
Key Specifications/Special Features:
01. Nominal diameter: DN06～100
02. Nominal pressure: Normal PN320bar, special PN420, 560, 760, 900bar
03. Valve body material:Forged steel A105 (code: [C]), forged steel 304 (code: [B]) forged steel 316 (code: [R]), forged steel 316L (code: [L])
04.Applicable medium temp.: Forged steel A105---normal Ⅲa: -29～150℃ (PTFE sealing element) special Ⅳa: -29～250℃ (PPL, PEEK sealing element) Stainless steel---normal Ⅲb: -40～150℃ (PTFE sealing element) special Ⅳb: -40～250℃ (PPL, PEEK sealing element)
05. Valve seat sealing material: Normal PTFE (code: P), special PPL (code: P), PEEK (code: K)
06. Can be installed at any angle, medium without flow direction limit, zero leakage 07. Connection mode: Threaded connection, butt welding with pipe joint
