Quick Details
-
Brand Name:
-
PLK LIFTRE
-
Dimension(L*W*H):
-
1860mm*1200mm*1860mm
-
Weight (KG):
-
1500 kg
-
MAX. load Capacity:
-
600kg 800kg 1000kg
-
safe load Capacity:
-
300kg 400kg 500kg
-
lifting height:
-
1600-2500mm
-
QTY of caps:
-
customized
-
cap diameter:
-
300mm
-
plate size:
-
customized
-
load center:
-
650mm-950mm
-
drive motor:
-
24V/500W
-
hydraulic motor:
-
24V/2000W
-
battery:
-
2*12V/70Ah
Quick Details
-
Warranty:
-
1 Year
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PLK LIFTRE
-
Dimension(L*W*H):
-
1860mm*1200mm*1860mm
-
Weight (KG):
-
1500 kg
-
MAX. load Capacity:
-
600kg 800kg 1000kg
-
safe load Capacity:
-
300kg 400kg 500kg
-
lifting height:
-
1600-2500mm
-
QTY of caps:
-
customized
-
cap diameter:
-
300mm
-
plate size:
-
customized
-
load center:
-
650mm-950mm
-
drive motor:
-
24V/500W
-
hydraulic motor:
-
24V/2000W
-
battery:
-
2*12V/70Ah

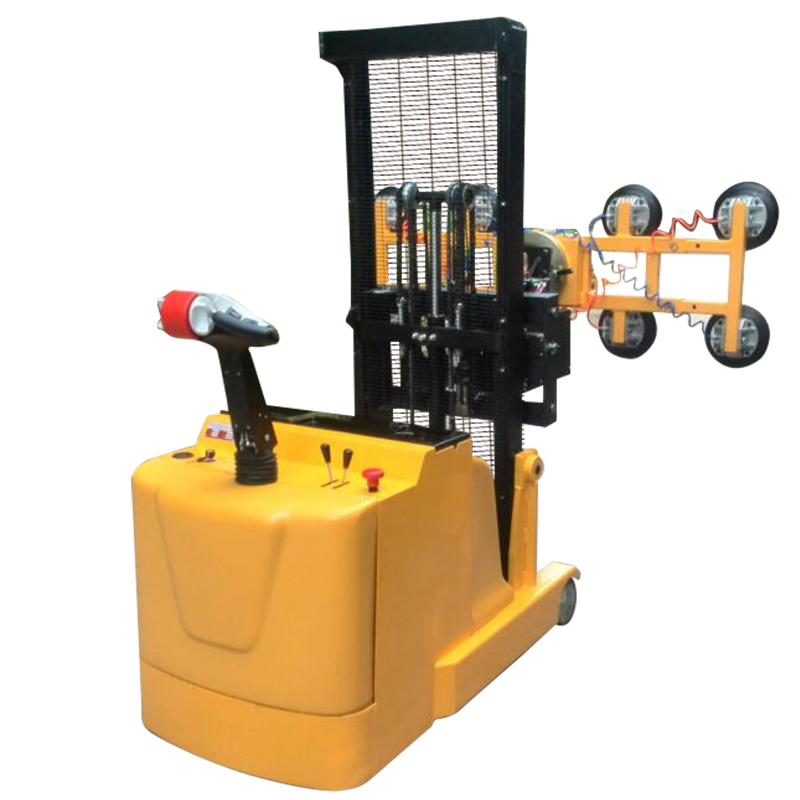

Special designed for handling different kinds of heavy plate, board , glass, useful for installing steel board, glass wall, moving such as granite, marble. Easily handle lifting, moving and rotating with vacuum suction caps and powerful drive system.
The following are the main parameters of this device, we can also customize according to your requirements.
|
Model |
GL-HD-6016 |
GL-HD-8016 |
GL-HD-1016 |
|
|
Max. Load Capacity |
600kg |
800kg |
1000kg |
|
|
Safe Load Capacity |
300kgs |
400kgs |
500kgs |
|
|
Lifting Height |
1600mm |
1600mm |
1600mm |
|
|
QTY of Caps (customized) |
4pcs |
6pcs |
6pcs |
|
|
Cap Diameter |
Ø300mm |
Ø250mm |
Ø300mm |
|
|
Plate Size (customized) |
1220x1830mm |
1220x1830mm |
1220x1830mm |
|
|
Load Center |
650mm |
650mm |
950mm |
|
|
Drive Motor |
24V/500W |
24V/500W |
24V/700W |
|
|
Hydraulic Motor |
24V/2000W |
24V/2000W |
24V/2000W |
|
|
Battery |
2x12V/70Ah |
2x12V/70Ah |
2x12V/100Ah |
|
|
Charger |
24V/10A |
24V/10A |
24V/15A |
|
Model |
GL-HD-6025 |
GL-HD-8025 |
GL-HD-1025 |
||
|
Max. Load Capacity |
600kg |
800kg |
1000kg |
||
|
Safe Load Capacity |
300kg |
400kg |
500kg |
||
|
Lifting Height |
2500mm |
2500mm |
2500mm |
||
|
QTY of Caps (customized) |
4pcs |
6pcs |
6pcs |
||
|
Cap Diameter |
Ø300mm |
Ø300mm |
Ø300mm |
||
|
Plate Size (customized) |
1220x1830mm |
1220 x 1830 mm |
1220 x 1830 mm |
||
|
Load Center |
650mm |
650mm |
950mm |
||
|
Drive Motor |
24V/500W |
24V/500W |
24V/900W |
||
|
Hydraulic Motor |
24V/2000W |
24V/2000W |
24V/2000W |
||
|
Battery |
2x12V/70Ah |
2x12V/70Ah |
2x12V/100Ah |
||
|
Charger |
24V/10A |
24V/10A |
24V/15A |
F unctions :
ü Self-propelled drive. Manual rotating.
ü Electric lift up to 2 .5M
ü Higher lift cap. is available upon request.
ü Electric side shift 100mm both right & left.
ü Electric tilting forwards & backwards from vertical to horizontal or reverse.
