Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZYZG
-
Year:
-
2019
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
2300*1800*4800
-
Weight (T):
-
5 T
-
Model Number:
-
YQ41-20
-
Motor Power (kw):
-
15 kw
-
Nominal force:
-
2000KN
-
worktable size:
-
500*400mm
-
opening height:
-
600mm
-
slide stroke:
-
260mm
-
Certification:
-
CE ISO
-
Nominal Force (kN):
-
200
-
Usage:
-
Metal Processing Machine

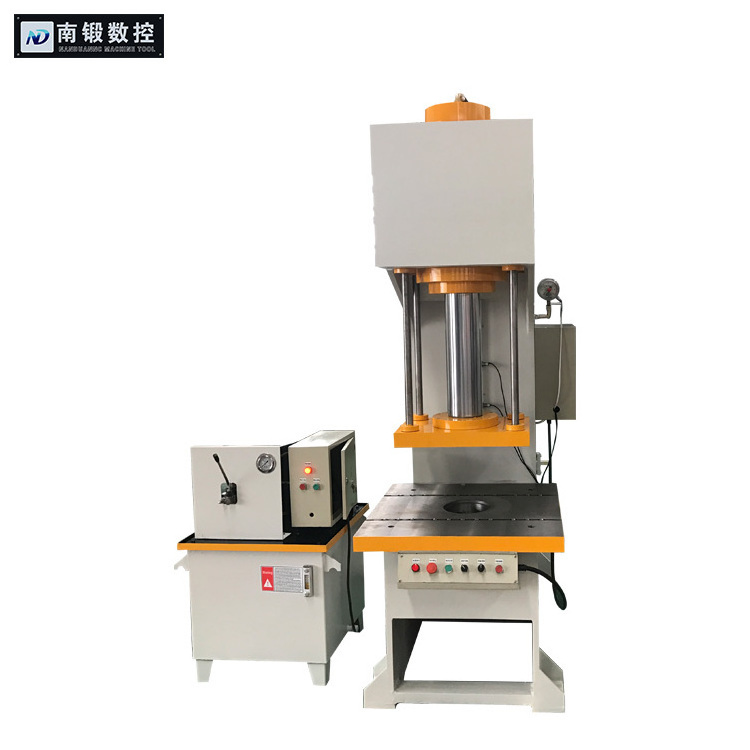

Quick Details
-
Machine Type:
-
Single Column Hydraulic Press
-
Slide Stroke (mm):
-
260
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZYZG
-
Year:
-
2019
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
2300*1800*4800
-
Weight (T):
-
5 T
-
Model Number:
-
YQ41-20
-
Motor Power (kw):
-
15 kw
-
Nominal force:
-
2000KN
-
worktable size:
-
500*400mm
-
opening height:
-
600mm
-
slide stroke:
-
260mm
-
Certification:
-
CE ISO
-
Nominal Force (kN):
-
200
-
Usage:
-
Metal Processing Machine
1. Structure:
it consists of an upper beam, a slide block, a workbench, an upright post, a main cylinder, hydraulic system and electrical system components. The Salt table making hydraulic press machine column uses the high quality 45# forging steel and the surface hardness can reach HRC38-42.The main oil cylinder seals use imported materials to ensure reliable sealing.
2. Hydraulic System:
The hydraulic system device is arranged on the right side of the press, with cartridge integrated system, flexible action, reliable work, good sealing performance. The hydraulic pump comprises an oil tank, a high-pressure pump, motor, cartridge valves and other components.
3. Electrical Control System:
an independent electric cabinet and a centralized control panel.
4. Operation: Two working modes as inches and semi-automatic strokes.
5. Security:
The emergency stop button can stop the machine immediately. The slide has Limit Switch on both up and down of the work table. Hydraulic support safety circuit is arranged in the cylinder piston inside of the hydro-cylinder.
Parameters of 500 ton Hydraulic Press Machine:
| Parameters | YQ32-200 | YQ32-315 | YQ32-500 | YQ32-630 | YQ32-800 |
|
Nominal Force(KN) |
2000 | 3150 | 5000 | 6300 | 8000 |
| System Pressure(Mpa) | 25 | 25 | 25 | 25 | 25 |
| Max opening distance(mm) | 900 | 1000 | 1500 | 1800 | 1800 |
| Slider effective stroke(mm) | 600 | 600 | 900 | 1000 | 1000 |
| Effective worktable size(mm) -L.RXF.B | 800x800 | 800x800 | 1400x1400 | 1500x1500 | 1500x1500 |
| Nominal force of upper ejection clinder(Kn) | 400 | 630 | 1000 | 1000 | 1000 |
| strok of upper ejection cylinder(mm) | 220 | 300 | 300 | 350 | 350 |
PS: Color, Motor power, Workbench size, Opening height, Effective stroke can all be customized,
It adopts centralized control, the button located adjustment (crawl), single (semi-automatic) two kinds of mode of operation. Setting process can be realized, will be two kinds of compression molding process, and have the protection when rolling properties. Working pressure, stroke according to the technical needs within the limits prescribed adjustable.
Applications
This series of presses are for metal materials, deep drawing, bending, flanging, cold extrusion, stamping and other craft, also applies to the correction, press-fit, powder products, abrasive products, as well as the suppression of molding plastic products, insulation materials, repression of molding.
Packaging & Shipping
Packaging Details
Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.
Delivery Time for 200T Hydraulic press Machine for Oil Filter:
Shipped in 30 days after payment
Our services are divided into pre-sale, sales, after-sale three parts.
Pre-sale
to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales
can support samples, support diversified payment methods, the solid forklift tire press machine production process transparent, standardized and quickly stocking.
After-sales
support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
