Quick Details
-
Brand Name:
-
NanYun
-
Weight:
-
65
-
Dimension(L*W*H):
-
800*600*1200mm
-
Function:
-
Bottle Unscrambling
-
Macine Material:
-
Stainless Steel
-
Bottle Material:
-
PET, PE, PP, Glass, Metal, Tin
-
Bottle Shape:
-
Round
-
Bottle Diameter:
-
30-60mm (adjustable)
-
Bottle height:
-
30-120 mm
-
Capacity:
-
1500-2000 bottles/hour
-
Speed:
-
Ajustable
-
Table size:
-
1000mmx800mmx1200mm
Quick Details
-
Voltage:
-
220V/50Hz
-
Power:
-
500W
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
NanYun
-
Weight:
-
65
-
Dimension(L*W*H):
-
800*600*1200mm
-
Function:
-
Bottle Unscrambling
-
Macine Material:
-
Stainless Steel
-
Bottle Material:
-
PET, PE, PP, Glass, Metal, Tin
-
Bottle Shape:
-
Round
-
Bottle Diameter:
-
30-60mm (adjustable)
-
Bottle height:
-
30-120 mm
-
Capacity:
-
1500-2000 bottles/hour
-
Speed:
-
Ajustable
-
Table size:
-
1000mmx800mmx1200mm
♦ Example/Samples:
Disinfectant Bottle /Oval Shampoo Bottle/Wine Bottle

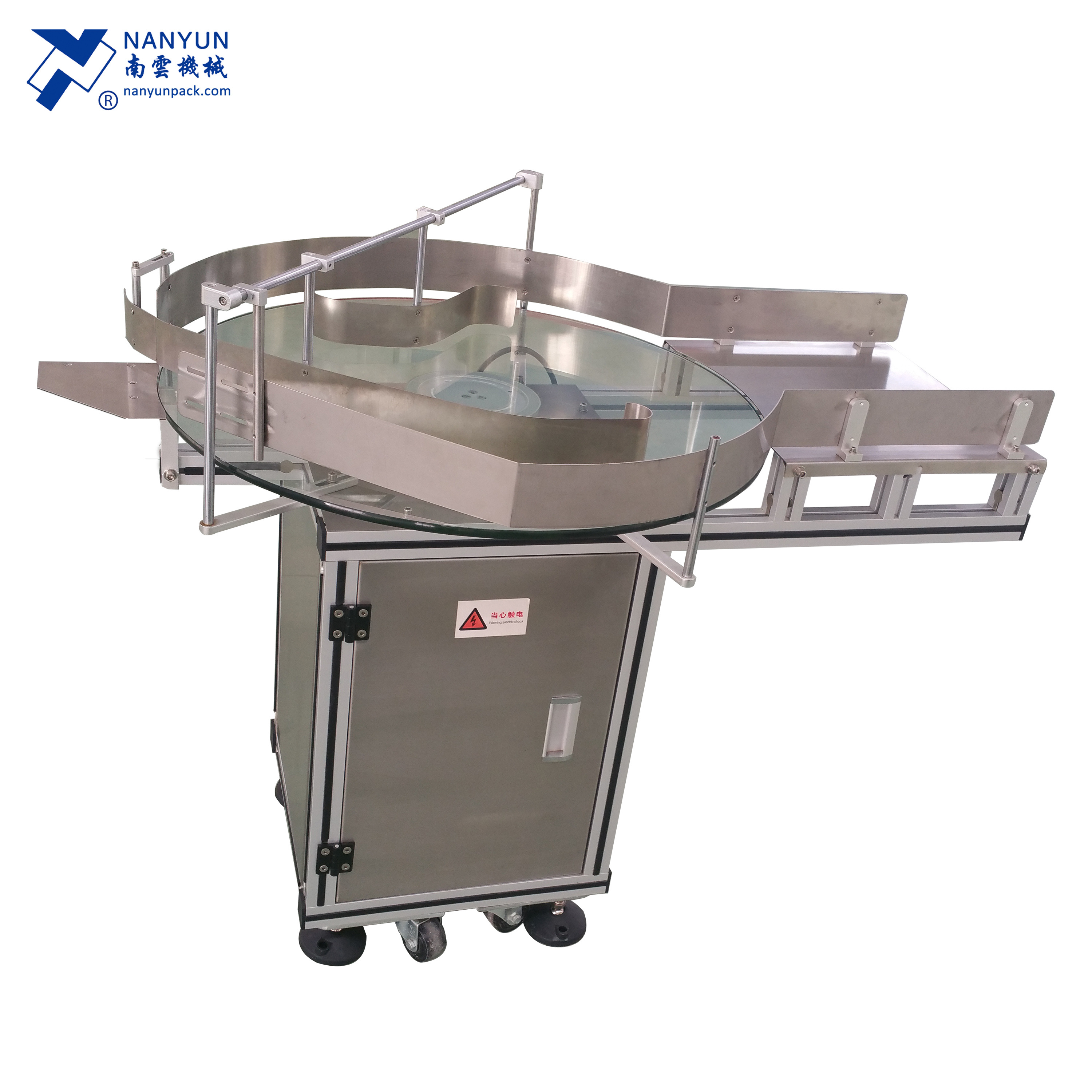

NY-861 automatic bottle-standing machine/unscramble machine/arrange machine
▶
Description
A Bottle Unscrambler is an automatic, variable speed packaging equipment that receives empty bottles in bulk, then orients, processes, and positions them onto a moving conveyor for further downstream processing. The Rotary glass pet bottle feeder machine & glass pet bottle unscrambler is used to unscrambling disorder standing glass pet bottles and make the bottle in order to the filling production line. Also can be customized and operate at high speeds for plastic and glass bottles that are symmetrical or asymmetrical in shape, the unscrambler incorporates servo motor controls for faster, more precise operations.
This popular bottle turntable machine is applicable to many industries including automotive, bottling, bucket/pail, cannabis, chemicals/cleaners, craft beer/wine, dairy/juice, food/bakery, health & beauty, medical, pharmaceutical, etc.
▶
Feature
1. It is suitable for round glass or plastic bottles automatic transmission, can be connected tolabeling machine, filling machine and capping machine etc production line to finish automatic feeding, improving efficiency;
2. Can be applied to the intermediate connection of the assembly line, as a buffer platform, the length of the conveyor belt can be shortened;
3. The applicable bottle range can be adjusted freely. The conveying speed is 30~200 bottles/min. The speed can be adjusted steplessly to facilitate production arrangement.
4. Putting on, collecting and sorting products, reducing labor intensity and improving efficiency.
5. The structure is relatively simple, stable and reliable.Mainly used for the pharmaceutical industry, health care products
industry, food industry and related industries.
6. Made of the 304 stainless steel, this equipment is made accord with GMP requirements.
2. Can be applied to the intermediate connection of the assembly line, as a buffer platform, the length of the conveyor belt can be shortened;
3. The applicable bottle range can be adjusted freely. The conveying speed is 30~200 bottles/min. The speed can be adjusted steplessly to facilitate production arrangement.
4. Putting on, collecting and sorting products, reducing labor intensity and improving efficiency.
5. The structure is relatively simple, stable and reliable.Mainly used for the pharmaceutical industry, health care products
industry, food industry and related industries.
6. Made of the 304 stainless steel, this equipment is made accord with GMP requirements.
▶ Application
♦ Bottle In-feed Table+Grain Multiweigher Machine+ Filling+Seaming+Cover Impressing+ Labeling+ Inkjet Printing
♦
Bottle In-feed Table+Cap Sorter&Capper+Metal Detector+Weighercheck+Labeler+Foil Induction Sealer+Laser Coder
♦
Bottle In-feed Table+Powder Filler+Cap Sorter & Capper+Labeler+Foil Induction Sealer+CIJ Printer+Collecting Table
♦
Bottle In-feed Table+Liquid Filler+Capper+Labeler+Hot Stamp Coder/Laser Coder/CIJ Printer+Collecting Table
▶ Specifications:
|
Technical Data
|
|
|
NY-861
|
|
||||
|
Label Accuracy
|
|
|
±1mm (excluding product and label error)
|
|
||||
|
Speed
|
|
|
0-500 pcs/min (related to product size).
|
|
||||
|
Table Width
|
|
|
800/1000 mm (can customize)
|
|
||||
|
Product Size (Dia. x H)
|
|
|
(20-100)x(25-220)mm (can customize)
|
|
||||
|
Working Height
|
|
|
850 mm (+/-30 mm) (can customize)
|
|
||||
|
Power Supply
|
|
|
220V, 50/60 Hz, Single Phase, 500w
|
|
||||
|
Machine Size (L x W x H)
|
|
|
1000 x800 x1200mm
|
|
||||
|
Weight
|
|
|
Approx 85kgs
|
|
||||
|
Compressed Air
|
|
|
0.5~0.7Mpa, 0.28CBM/min (optional)
|
|
||||
|
Note: If machine are customized, the above data may vary.
|
|
|
|
|
||||
Bottle infeed & outlet
Directly interface with other
machine with adjustable bottle outlet to constitute the packaging production line.
machine with adjustable bottle outlet to constitute the packaging production line.
Motor.
Famous brand and less noise to ensure stable and durable running.
Baffle and Unscramble Mechanism
Make changes based on different bottles size; Ensure all various of bottles and cans be transported smoothly.
Speed controller & Switch
The speed of bottle rotary unscrambel tray is adjustable through the speed controller.One button to operate, easy and simple;
Integrate into any kind of production line.
Can be combined with weight checker, metal detector, filling machine, capping machine, induction foil sealing machine, labeling machine etc.
Labeler &Coder machines come in a range of shapes and designs.
Professional R&D team with 20+ years industry experience, you can find any labeling coding solution from us for your unique products.
