Quick Details
-
Table Travel (Z) (mm):
-
500 mm
-
Max. Table Load(kg):
-
250
-
Travel (W-axis) (mm):
-
950 mm
-
Marketing Type:
-
New Product 2021
-
Range of Spindle Speed(r.p.m):
-
230 r.p.m
-
Production Capacity:
-
25 / week
-
Place of Origin:
-
Kocaeli, Turkey
-
Brand Name:
-
LINEBORTECH Boring & Welding Machine Tools
-
Voltage:
-
220V 50HZ Single Phase
-
Dimension(L*W*H):
-
815*210*320mm
-
Weight (T):
-
0.25 T
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product type:
-
Line Boring Machine
-
Weight:
-
250Kg
Quick Details
-
Table Size (mm):
-
930x1130
-
Table Travel (X) (mm):
-
900 mm
-
Table Travel (Y) (mm):
-
450 mm
-
Table Travel (Z) (mm):
-
500 mm
-
Max. Table Load(kg):
-
250
-
Travel (W-axis) (mm):
-
950 mm
-
Marketing Type:
-
New Product 2021
-
Range of Spindle Speed(r.p.m):
-
230 r.p.m
-
Production Capacity:
-
25 / week
-
Place of Origin:
-
Kocaeli, Turkey
-
Brand Name:
-
LINEBORTECH Boring & Welding Machine Tools
-
Voltage:
-
220V 50HZ Single Phase
-
Dimension(L*W*H):
-
815*210*320mm
-
Weight (T):
-
0.25 T
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product type:
-
Line Boring Machine
-
Weight:
-
250Kg
Portable Boring Machine Manufacturers in Turkey
MODEL:
BD60
PROCESSING DIAMETERS
(Ø52 mm: up to Ø700 mm)
LINEBORTECH has been manufactured to work in the renovation and repair services of various heavy industrial machines.
The first model of the LINEBORECH machine in different concept is LINEBORTECH BD60 is generally manufactured for Ø 52 mm Ø 700 mm for chip lifting, in-hole welding, and turning operations.
Extra equipment is added for work up to Ø 800mm. The machines ergonomic design, easy handling, and light weight are the most outstanding features.
LINEBORTECH We have different features
* Oil-free / silent, system driven speed/torque belt transfer
* Worm gear spindle adjustment and quick traverse button
* 230mm continuous machining distance
* Constant torque output at all set speeds with encoder capacity of the main motor
* Centering set a punch
* Telescopic welding torch
* Control needle. excluding.
Weight 45 kg.
Diameter details
Perforated Machining: Ø52mm - 700mm
External Processing: With Optional Attachments
Perforated Welding: Ø60mm - 700mm
Head Turn: With External Kit
TECHNICAL DATA
BD60 Different Product Features
Motorized Gearbox
Teeth 55
HRC
Hardened And Grinded.
6000 Hours Usage Guarantee
HOLE PROCESSING CAPACITY
In-hole turning
Up to 600mm at 62mm
Intra-Hole Welding
From 80mm up to 450mm
ELECTRICAL ENGINE EQUIPMENT
Main Bar Rotation Motor
Ac 230V Ac Servo Motor
Min 0,20 Rpm Max. 225 RPM
Main Bara Forward Backward Motor
Ac 230V Ac Servo Motor
Moving Speed Min 0,05 Mm / Dk Max 95 Mm / Dk
Strok 250 Mm
Standard Hardware

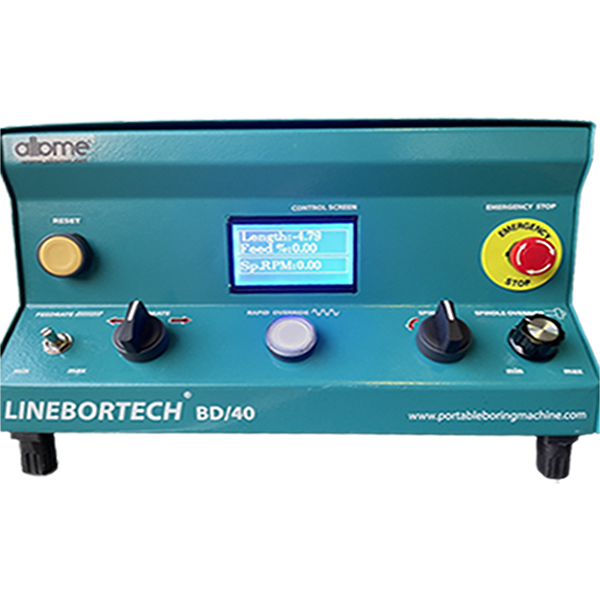

ELECTRONIC CONTROL PANEL
Operating Voltage: Ac 230v 50 / 60Hz -10 amp.
Master On-Off Switch
Emergency Button
Right / Left Rotation Switch
Speed Tuning Button 10 Turn
Forward / Backward Motion Key
Speed Tuning Button 10 Turn
Fast Motion Button
Reset button
Control Screen
STANDARD EQUIPMENT LIST
1 piece 1700 Mm Bar shaft
1 Unit with Electronic Control Panel
1 Portable Boring Machine
1 Carrying Vehicle
4
Main
Beds
12 Short Legs 30x30x60
2 Unit Centers
1 Unit Sag Processing Kateri
1 Unit Left Handle Cart
1 piece Diamond Set 10 pieces
1 Set of
Key Set (2,5-4-5-12)
1 Screwdriver Star Head
1 Number 10 Phillips Screwdriver
2 pieces 20/22 Fork Switch
Optional Accessories
• Additional heads are available which provide a range from
114.3 mm–609.6 mm (4.5"–24") diameter; and are equipped with a fine
radial adjustment allowing for quick and accurate setting of tool position.
• An optional facing/grooving head is available which covers a range
from 57.2 mm–533.4 mm (2.25"–21") diameter. The cutter head is
advanced using a cam tripper which actuates the cutter over an increased
surface range.
• Universal bearing supports increase range of mounting options in tight spaces.
• Intermediate supports are available to assure a ridged set-up. Supports
are available in two sizes covering a range of 147.3 mm (5.8") up
to 660.4 mm (26").
• A bore welding system capable of covering the entire 2250P machining
range is also available.
• Centring cones quickly align the bar and bore.
If you want more information about the portable line boring machine feels free to contact us.
