Quick Details
-
After-sales Service Provided:
-
Online Support
-
Product name:
-
Agricultural Tractor
-
Use:
-
Farm Land
-
Application:
-
Ariculture
Quick Details
-
Brand Name:
-
TWO WHEEL FARM TRACTOR
-
Place of Origin:
-
France
-
Weight:
-
7000 KG
-
After-sales Service Provided:
-
Online Support
-
Product name:
-
Agricultural Tractor
-
Use:
-
Farm Land
-
Application:
-
Ariculture

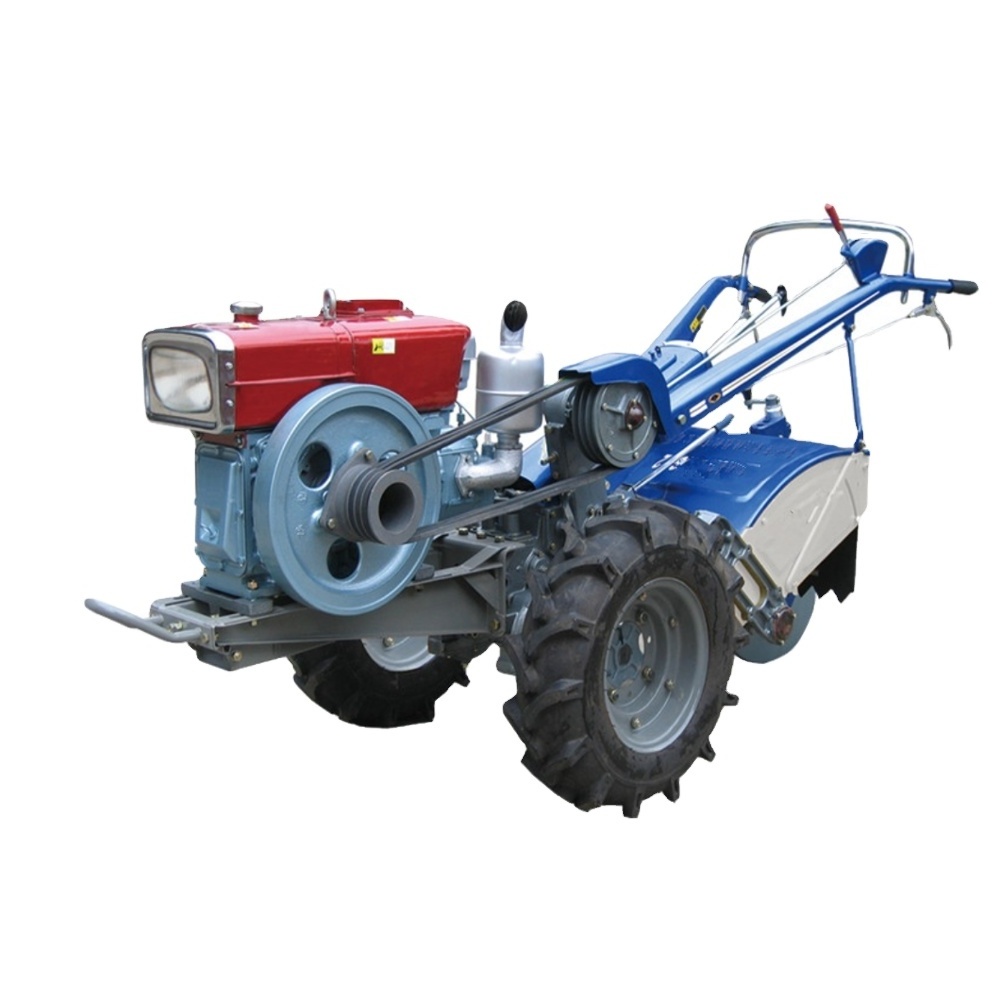

Buy two wheel farm tractor mini tractor for agriculture For Sale
walking tractor with rotary tiller(8-22HP )
1. HR101-1, HR151-1,HR121/HR151/181/201/221 Main model
2. It has anew disignoverallhousing, and upgrade gear box body,
3. And the attached 7-22 HP direct injection diesel engine make it much more powerful.
4. Electrical starting is optional, make it betterhandling performance
5. 90% common gears and spare parts with walkig tractor ,Simplifies the maintenance.
6. Different product colors is optional,toadapttodifferen
It can be used for rototilling,ploughing, harrow-ing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suit-able farm implementa or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
|
Item |
Data |
Item |
Data |
|
|
model |
HR101-1 |
STANDARD TRACTION( N) |
1600N |
|
|
ENGINE |
R180/190/192/195/196 |
Overall dimensions( mm ) |
2130×940×1090 |
|
|
12hours rating |
8hp/10hp/11hp/12hp/13hp |
weight ( Kg ) |
258(with rotary 333kgs) |
|
|
Rated speed |
2300r/min |
Tire sizes |
6.00-12 |
|
Model |
101 |
|
Engine and power |
185N(5.88kw) |
|
Rated Traction(1) |
1700 |
|
Dimensions(mm) |
2170*890*1150 |
|
Min Distance form the ground |
190 |
|
Structure weight(kg) |
247 |
|
Type of clutch |
Single disk dry constant conjunction friction |
|
Type of Steering gear |
Meshing sleeve |
|
Type of brake |
Cricoids,Inside Expansion |
|
Triangle belt |
B1800 2pcs |
|
Capacity of Lubrication oil |
3.5L |
|
Type of tires |
6.00-12(1.4-2.0kgf/cm ² ) |
