Quick Details
-
Voltage:
-
220V-380V, Air driven
-
Dimension(L*W*H):
-
82*82*101cm
-
Power (kW):
-
10
-
Weight (KG):
-
115 KG
-
Certification:
-
ce, CE
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
United States, Argentina, Algeria, South Africa
-
Power(W):
-
No electric
-
Weight:
-
112kg
-
Color:
-
Requirement
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
CNMC
-
Machine Type:
-
glass fiber spray machine
-
Voltage:
-
220V-380V, Air driven
-
Dimension(L*W*H):
-
82*82*101cm
-
Power (kW):
-
10
-
Weight (KG):
-
115 KG
-
Certification:
-
ce, CE
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
United States, Argentina, Algeria, South Africa
-
Power(W):
-
No electric
-
Weight:
-
112kg
-
Color:
-
Requirement

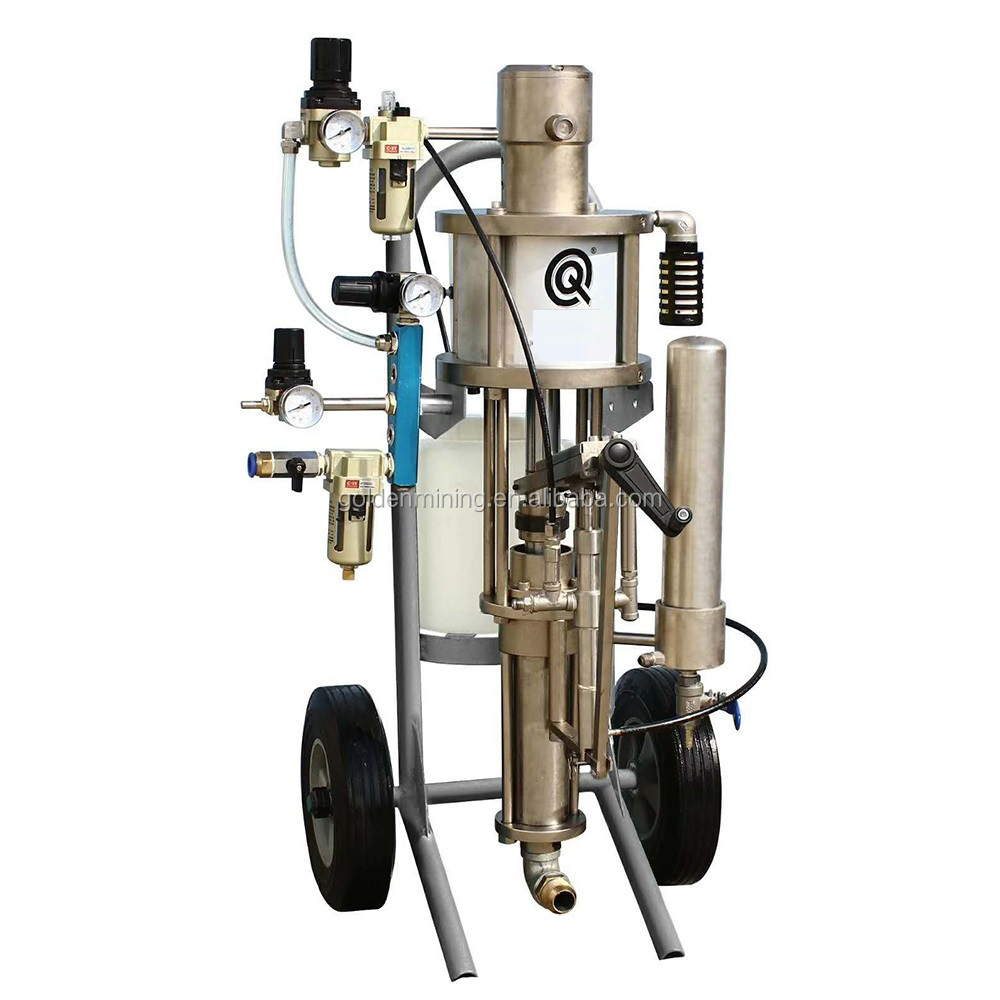

Fiberglass resin spray machine with wheel CNMC-CZ
Introduction of fiberglass spray machine
The CNMC-CZ fiberglass spray equipment machine is used to apply the resin and fiber on work piece
surface simultaneously. It is the modern technology to save resin consumption and
labor cost compare to hand lay-up technology, which is widely used for FRP or GRP
product in mass production.
CNMC-CZ Fiberglass Spray Machine
Fiberglass spray machine cnmc-zj
Standard Nozzle: 1.4 mm
2.5L-6L/min spray resin .
Operating Pressure: 45 to 60 PSI (3.0 to 4.0 bar)
Pattern Width: (200 to 500 mm)
Air Consumption: Above 23cfm .
Heavy Duty Pressure Feed Paint Tank Specifications:
Clamp on Lid with Gasket
Fluid pressure regulator with gauge
Paint Tank Operating Pressure: Optimal 25-30 PSI
Hose Assembly: 15 meters Hoses
Air inlet: 16mm Fluid inlet: 3/8"
Air Pressure Relief Valve for Safety
|
Standard Nozzle |
1.4 mm 2.5L-6L/min spray resin |
|
Operating Pressure |
45 to 60 PSI (3.0 to 4.0 bar) |
|
Pattern Width |
200 to 500 mm |
|
Air Consumption |
Above 23cfm |
|
Paint Tank Operating Pressure |
Optimal 25-30 PSI |
|
Hose Assembly |
15 meters Hoses |
|
Air inlet |
16mm Fluid inlet: 3/8" |
Gravity Fed Catalyst System
Keeps the catalyst pump primed
Air Motor
Shortened stroke on pump for better pattern
Industry proven for reliability
Balanced Air Motor
Provides same output pressure on upstroke and downstroke
Results in more consistent spray pattern
Stable, Lightweight Cart
Easy to maneuver
