Quick Details
-
Roll Ratio(Front/Back):
-
1:1.25
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LINA
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3000* 1200*1800mm
-
Year:
-
2024
-
Power (kW):
-
22
-
Weight (KG):
-
3500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Open Mixing Mill
-
Color:
-
Customers' Demand
-
Weight:
-
800KG
-
Power:
-
3.7kw
-
Certification:
-
ISO9001:2008/CE
-
Marketing Type:
-
New Product 2023
Quick Details
-
Diameter of Roll(mm):
-
300 mm
-
Rotation Speed of Front Roll(rpm):
-
0 - 50 rpm
-
Length of Roll(mm):
-
700 mm
-
Roll Ratio(Front/Back):
-
1:1.25
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LINA
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3000* 1200*1800mm
-
Year:
-
2024
-
Power (kW):
-
22
-
Weight (KG):
-
3500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Open Mixing Mill
-
Color:
-
Customers' Demand
-
Weight:
-
800KG
-
Power:
-
3.7kw
-
Certification:
-
ISO9001:2008/CE
-
Marketing Type:
-
New Product 2023

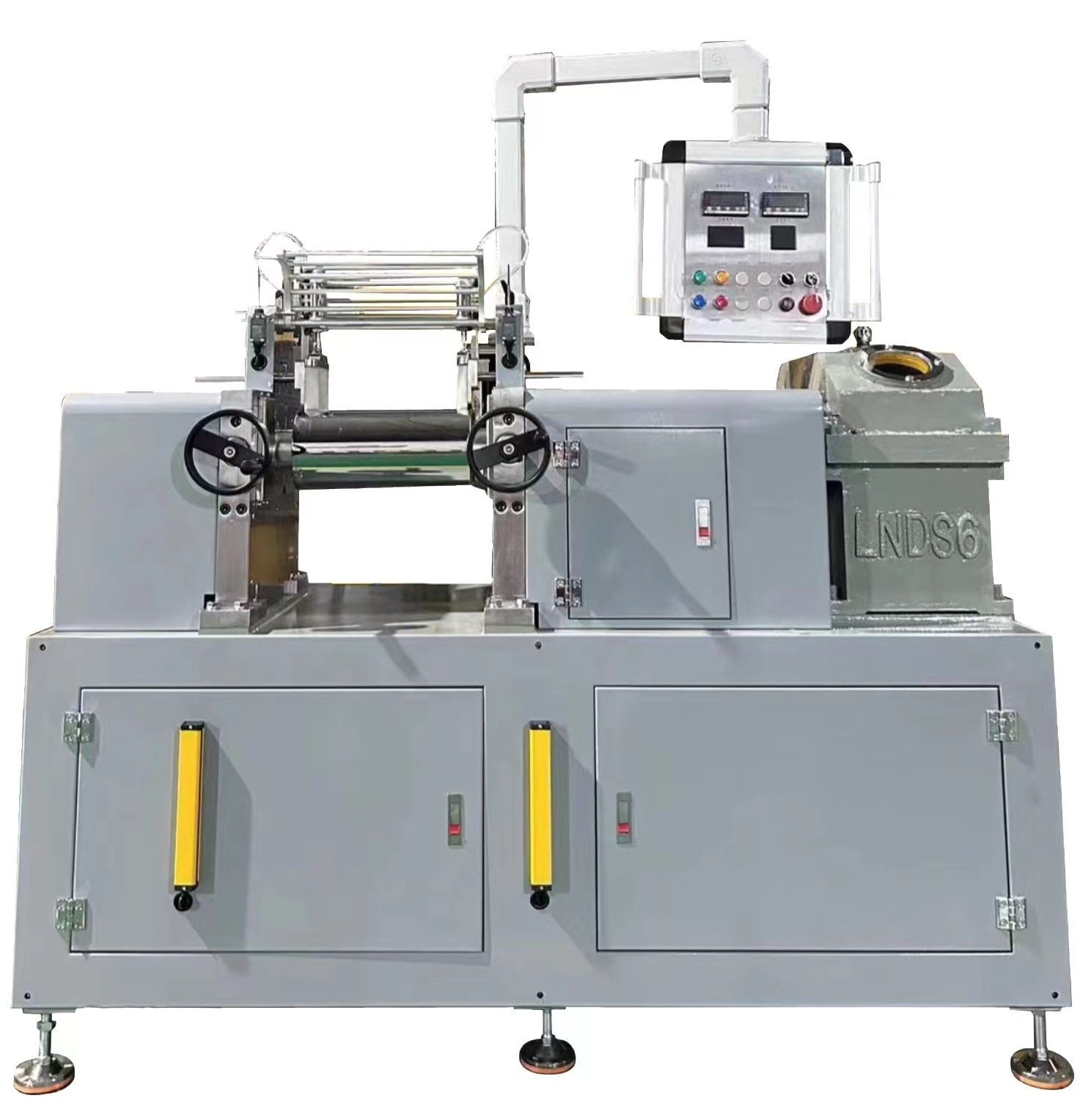

12 Inches six safety measures design DC inverter universal joint driving Rubber Two Roll Mill rubber sheet rolling machine
In the market of China's Laboratory Open Mill , about 47% domestic science and research institution and universities are using LINA LAB TEST Two Roll mills.
Moreover, the design of LINA Two Roll Open Mill takes the lead in China's rubber and plastic machinery industry.
High precision and high safety are LINA's Rubber Two Roll Milling Machine's main advantages.
Besides, user friendly, higher safety, higher control precision, higher durability and excellent temperature control are
LINA Rubber Open Mill 's advantages that make LINA outstanding in the industry.
Specifications of LINA 10 Inch Small Two Roll Mill for Plastic
| Item | Specification | Remarks |
| Type |
LN - K - 300 / 12 |
|
| Roller Diameter |
300mm
|
|
| Roller Width | 700mm | |
| Speed Ratio of Rollers (Front/Rear) | 1:1.25 | |
| Maximum Roller Distance | 0.3-10 mm | |
| Motor Powder | 22KW | |
| Weight | About 3500 KG | |
| Dimensions |
About
30 00 * 1 20 0 * 1 80 0 |
Characteristics of LINA 12 Inch small two roll mill for plastic
1. User friendly
2. Higher safety
3. Higher precision
4. Higher durability
5. Excellent temperature control
LINA Open Mill New Safety System
1. Infrared Sensor : A infrared sensor device for braking is installed to keep the operator's body and the running Two Roll Open Mill in a safe distance.
Many unexpected accidents on the Open Milling Machine are caused by causal and incorrect operations, this infrared sensor is designed to rule the operator's basic actions and protect the user from the roof of the danger.
2. 360 Degrees Emergency Braking Button : Based on human engineering, this safety device is designed to protect the user when an emergency happened.
This technology has applied China's National Patent. When touching the button, the rollers will stop immediately and reverse 1/4 round to maximize the protection.
3. Knee-Hitting Safety Device : According to human engineering, this device is installed to brake the rollers when an unexpected emergency occurred.
4. Hand-Pressing Safety Device : This is the basic safety device installed on all types of Rubber and Plastic Two Roll Mill . Once press the button, the rollers will stop immediately and reverse about 1/4 round.
5. Safety Cover : This safety cover is installed on the top of the rolls, to ensure the user's safety when adding other solid, powder or liquid additives into the mixing materials.
Intelligent control panel and PLC control system
1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.
2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.
3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet communication interface.
4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.
