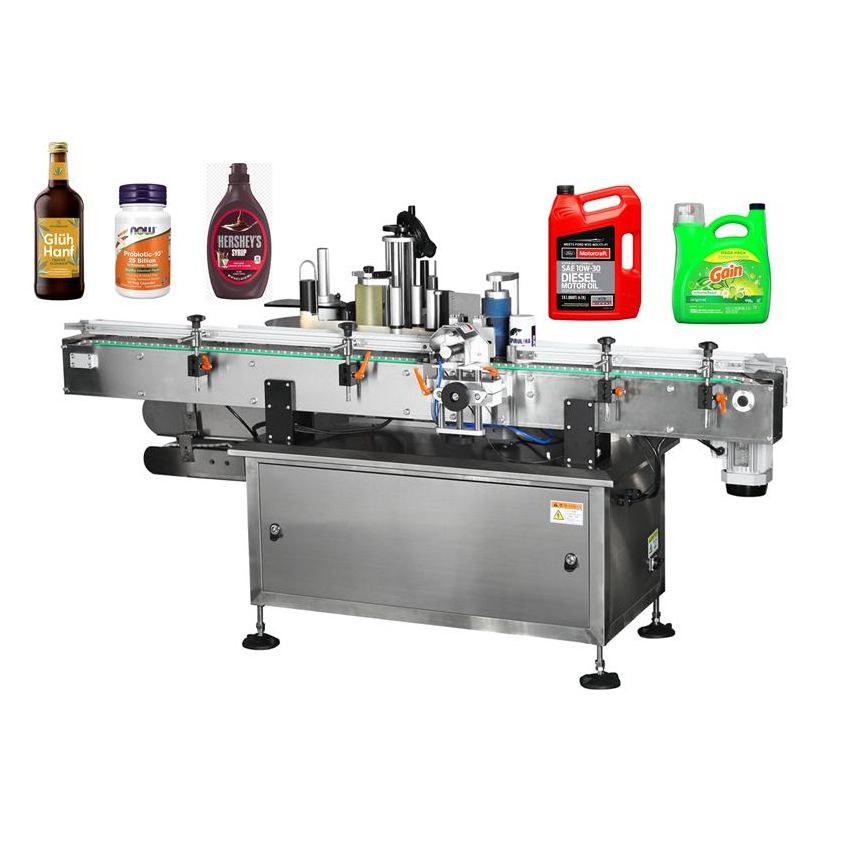

Automatic 1 / 2 / 3 Sides Label Round Square Bottle Labeling Machine

Automatic 1 / 2 / 3 Sides Label Round Square Bottle Labeling Machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $5800

≥5 Pieces

US $5500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220v

Place of Origin:: Zhejiang, China

Brand Name:: ZONPACK

Dimension(L*W*H):: 2500*3500*4600

Weight:: 120 KG

Technical Feature:: Automatic Bottle Division

Feature:: Intelligent Control

Advantage:: Solid Quality

Labeling Speed:: 20-50pcs/min

Labeling Accuracy:: ±1mm

Marketing Type:: New Product 2024

Quick Details

Application:: Food, Chemical, Machinery & Hardware

Packaging Type:: Bottles

Packaging Material:: Plastic, Wood

Voltage:: 220v

Place of Origin:: Zhejiang, China

Brand Name:: ZONPACK

Dimension(L*W*H):: 2500*3500*4600

Weight:: 120 KG

Technical Feature:: Automatic Bottle Division

Feature:: Intelligent Control

Advantage:: Solid Quality

Labeling Speed:: 20-50pcs/min

Labeling Accuracy:: ±1mm

Marketing Type:: New Product 2024

Other Products

Product Description

Technical Specification:
Model			ZH-TB-300
Labeling Speed			20-50pcs/min
Labeling Accuracy			±1mm
Scope of Products			φ25mm～φ100mm,height≤diameter*3
The range			The bottom of the label paper:W：15～100mm，L：20～320mm
Power Parameter			220V 50/60HZ 2.2KW
Dimension(mm)			2000(L)1300(W)1400(H)

Application:

Suitable for labeling round bottles, single label and double label can be pasted, and the distance between front and back double label can be adjusted flexibly. With tapered bottle labeling function; The perimeter location detection device can be used to label the designated position on the perimeter surface. The equipment can be used alone, also can be used with packaging line or filling line.

Technical Feature:

1. Simple adjustment, configuration before and after, left and right and up and down directions, plane inclination, vertical inclination adjustment seat, different bottle shape switch without dead Angle, simple and quick adjustment； 2. Automatic bottle division, star wheel bottle division mechanism, effectively eliminate the bottle itself error caused by the bottle is not smooth, improve the stability； 3. Touch screen control, man-machine interaction interface with operation teaching function, simple operation； 4. Intelligent control, automatic photoelectric tracking, automatic label detection function, to prevent leakage and label waste； 5. Solid health, mainly made of stainless steel and senior aluminum alloy, solid quality, in line with GMP production requirements.

Working principle

The sensor detects the passing bottles and send a signal back to the control system.Atthe appropriate position, the system controls the label to be sent out and attached tothe suitable position .The product pass through the labeling device and the label isattached to bottles well.
