Quick Details
-
Color:
-
bluered,gold etc.Customized
-
Usage:
-
Ore Mining, Coal Mining, well drilling rig
-
Application:
-
water/oil/gas well drilling
-
Transfer:
-
Air/Sea/Express
-
whatsApp:
-
+8617837465060
-
Size:
-
28mm-270mm
Quick Details
-
Weight (KG):
-
15
-
Place of Origin:
-
China
-
Product name:
-
PDC drill bit
-
Color:
-
bluered,gold etc.Customized
-
Usage:
-
Ore Mining, Coal Mining, well drilling rig
-
Application:
-
water/oil/gas well drilling
-
Transfer:
-
Air/Sea/Express
-
whatsApp:
-
+8617837465060
-
Size:
-
28mm-270mm
Products Description

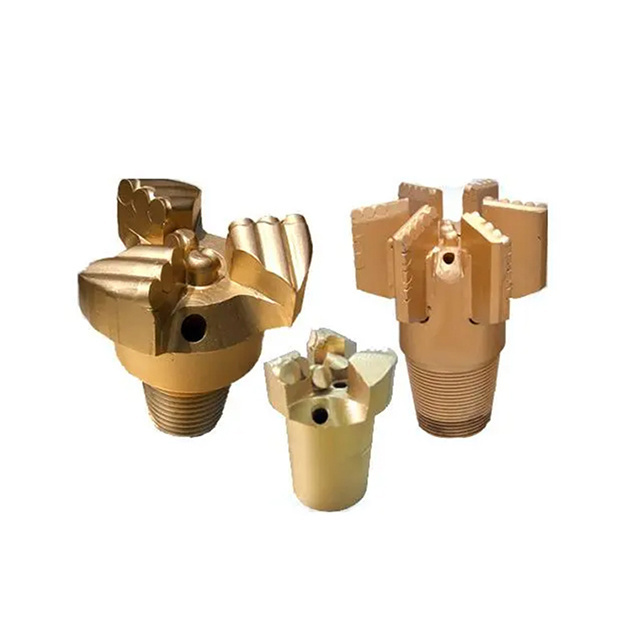

PDC concave drill bits are made of high-quality diamond composite sheets and high-density diamond composite sheets. It can save
drilling cost greatly and has a higher rotary.We can customize any size including non-standard size. And customerscan choose build
high performance wear-resistant materials on the surface of blade or not. It is a first choice for soft formationdrilling.
1. Forgeology, coal field, metallurgy, building materials, mining core drilling;
drilling cost greatly and has a higher rotary.We can customize any size including non-standard size. And customerscan choose build
high performance wear-resistant materials on the surface of blade or not. It is a first choice for soft formationdrilling.
1. Forgeology, coal field, metallurgy, building materials, mining core drilling;
2. It is used for exploration and drilling of
coreprojects such as highways, railways, bridges, housing construction,hydropower, etc.;
coreprojects such as highways, railways, bridges, housing construction,hydropower, etc.;
3. It is used for grouting reinforcement
drilling in soft and dangerous rocks, foundation treatment, broken strata, etc.;
drilling in soft and dangerous rocks, foundation treatment, broken strata, etc.;
4. It is used for large-diameter engineering
drilling, hydrological water well drilling, construction pile foundation, and inverted vertical hole construction drilling;
drilling, hydrological water well drilling, construction pile foundation, and inverted vertical hole construction drilling;
5. It
is used for tunnel ventilation, exhaust, monitoring drilling of rock mass buildings and concrete sampling drilling.
Specification
PDC Core Drilling Bit
PDC core bit incorporating PDC(Polycrystalline Diamond Compact) cutters can be very cost effective and very productive, which are
applied to rock formations of f≤10,mainly used for geological exploration and hydrology drilling. PDC core bit include:PDC single
tube core bit,PDC double tube core bit,PDC wire line core bit
applied to rock formations of f≤10,mainly used for geological exploration and hydrology drilling. PDC core bit include:PDC single
tube core bit,PDC double tube core bit,PDC wire line core bit
|
line number
|
Specification (mm）
|
Drilling procedure parameters
|
|
|
||
|
|
|
Drill pressure
|
Rotating speed
|
pump volume
|
||
|
1
|
28
|
300-700kg
|
300-350rpm
|
150-200/min
|
||
|
2
|
30
|
300-700kg
|
300-350rpm
|
150-200/min
|
||
|
3
|
32
|
300-700kg
|
300-350rpm
|
150-200/min
|
||
|
4
|
48
|
300-700kg
|
300-350rpm
|
120-160/min
|
||
|
5
|
56
|
320-800kg
|
250-350rpm
|
130-180/min
|
||
|
6
|
75
|
480-1200kg
|
200-300rpm
|
150-200/min
|
||
|
7
|
94
|
640-1600kg
|
150-250rpm
|
200-250/min
|
||
|
8
|
110
|
880-2200kg
|
120-200rpm
|
200-300min
|
||
|
9
|
152
|
1500-3000kg
|
100-200rpm
|
500-850/min
|
||
|
10
|
190
|
1800-4000kg
|
100-200rpm
|
600-1200/min
|
||
|
11
|
230
|
2200-4500kg
|
100-200rpm
|
750-1400/min
|
||
|
12
|
270
|
2400-5000kg
|
100-200rpm
|
1000-1500/min
|
||
