Quick Details
-
Material:
-
Aluminum Alloy
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BLD
-
Model Number:
-
BLD-L-7003
-
Blade Size:
-
100MM/150MM/200MM/250MM/300MM/400MM/450MM
-
Surface Treatment:
-
Powder coated/PVDF/Anodized/Mill finish
-
Color:
-
Customized Colors
-
Function:
-
Sunproof / Air Ventilation / Decoration
-
Max Span:
-
6meters
-
Guarantee:
-
15~20 years for Aluminum alloy material
-
Material Thickness:
-
1.0/1.5/2.0/3.0/4.0mm
-
Product name:
-
Outdoor operable aluminium louvre
Quick Details
-
Project Solution Capability:
-
3D model design
-
Application:
-
all, Residential or Commercial buildings
-
Design Style:
-
Modern
-
Material:
-
Aluminum Alloy
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BLD
-
Model Number:
-
BLD-L-7003
-
Blade Size:
-
100MM/150MM/200MM/250MM/300MM/400MM/450MM
-
Surface Treatment:
-
Powder coated/PVDF/Anodized/Mill finish
-
Color:
-
Customized Colors
-
Function:
-
Sunproof / Air Ventilation / Decoration
-
Max Span:
-
6meters
-
Guarantee:
-
15~20 years for Aluminum alloy material
-
Material Thickness:
-
1.0/1.5/2.0/3.0/4.0mm
-
Product name:
-
Outdoor operable aluminium louvre

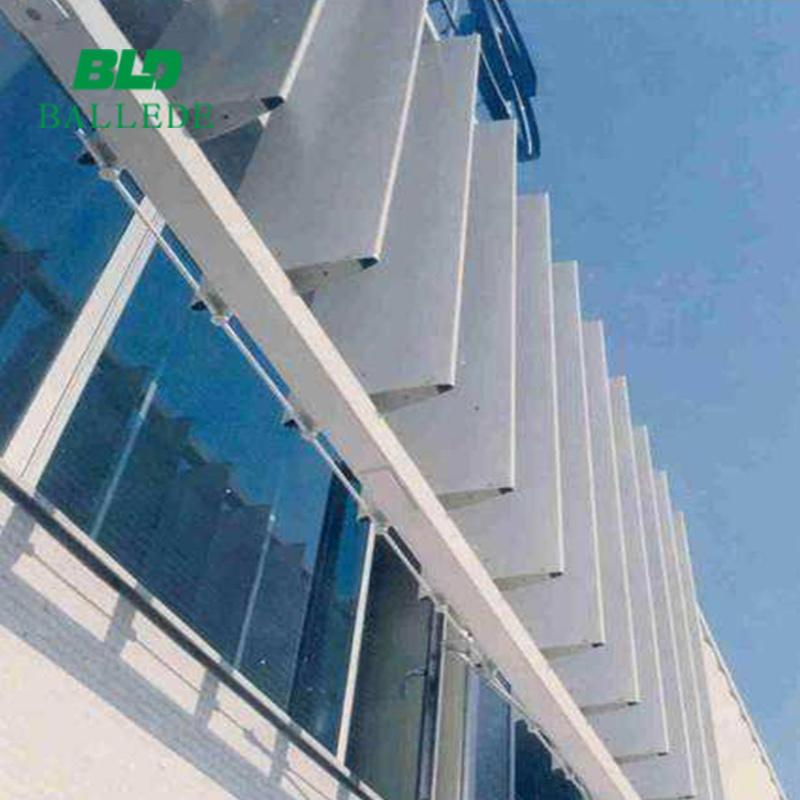

BALLEDE airfoil louver systems can be fixed or adjustable, allowing the angle of the louvers to be changed to provide increased levels of solar control. This type of system is more appropriate for east / south-east or west / south-west facing elevations .
| MATERIALS: | Aluminum alloy 6063-T5 |
| OPERATION SYSTEM : | Fixed / Motorized / Manual |
| BLADES DIRECTION : | Vertical and Horizontal |
| BLADE ANGLES : | Adjusted 0~180 degree |
| BLADE SIZES : | 100/150/200/250/300/400/450/600MM |
| BLADES SPAN : | 1000 ~ 6000MM |
| SURFACE FINISH : | Customized Colors in Powder coated/PVDF/Anodized/Mill finish |
BLADES OPTIONS
TYPES(Fixed/Motorized/Manual for options)
End Fixed Mounting to Building
End Fixed Overhead Bracket Fixed Vertical
Bracket Fixed Overhead Sliding Screen
Aluminum extruded wing-shaped profiles - 8 different standard profiles from 100 to 600 mm wide - Fins fixed at a chosen angle between 0 and 180 degrees in increments of 5 degrees - Adjustable fins with motorized operation, suitable for Building Management Systems - V-bracket fixtures, available in 0, 30 and 45 degrees for the 200 – 300 - Cup bracket fixtures, available in 0, 30 and 45 degrees for the 350 – 600 - Two standard supporting structures are available, tube or flat bar - Corner solutions are available for fixed systems - Available anodized, in polyester or PVDF coating (RAL) or in wood tones.
APPLICATIONS
-----------------------------------------------------------------------------
WE ARE PROFESSIONAL ON CUSTOM MADE LOUVERS FOR CUSTOMERS.
FOR MORE INFORMATION, PLEASE KINDLY CONTACT US
