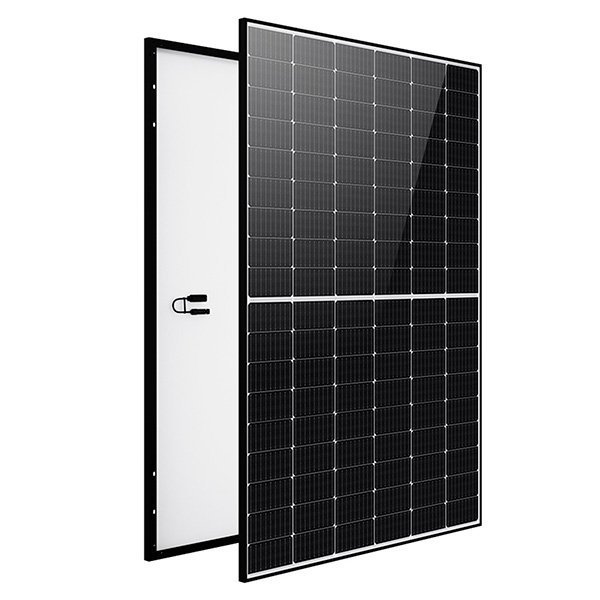

Quick Details
-
Warranty:
-
25 years warranty
-
Brand Name:
-
Longi
-
Model Number:
-
LR5-54HTH-410M
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Item name:
-
Longi solar 410w
-
Solar cell:
-
Mono-crystalline 9BB 182*182mm
-
Weight:
-
20.8 kg
-
Front Glass:
-
single glass, 3.2mm coated tempered glass
-
Backsheet:
-
White TPT
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
Potted, IP68, 1500VDC, 3 Schottky bypass diodes
-
Cable:
-
TUV 1*4.0mm2 (+): 400mm , (-): 200mm
-
Connector:
-
IP68
-
Application:
-
Solar Power System
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
Half Cell
-
Panel Efficiency:
-
21.5%
-
Warranty:
-
25 years warranty
-
Brand Name:
-
Longi
-
Model Number:
-
LR5-54HTH-410M
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Item name:
-
Longi solar 410w
-
Solar cell:
-
Mono-crystalline 9BB 182*182mm
-
Weight:
-
20.8 kg
-
Front Glass:
-
single glass, 3.2mm coated tempered glass
-
Backsheet:
-
White TPT
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
Potted, IP68, 1500VDC, 3 Schottky bypass diodes
-
Cable:
-
TUV 1*4.0mm2 (+): 400mm , (-): 200mm
-
Connector:
-
IP68
-
Application:
-
Solar Power System
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO
Product description
|
Mechanical Data
|
|
|
|
|
||||
|
Model:
|
LR5-54HTH-420M
|
|
|
|
||||
|
Cell type:
|
Mono-crystalline 9BB
|
|
|
|
||||
|
Cell number:
|
108 cells
|
|
|
|
||||
|
Dimensions:
|
1722*1134*30mm
|
|
|
|
||||
|
Weight:
|
20.8 kg
|
|
|
|
||||
|
Front glass:
|
3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
|
|
|
|
||||
|
Back glass:
|
White TPT
|
|
|
|
||||
|
Junction box:
|
Potted, IP68, 1500VDC, 3 Schottky bypass diodes
|
|
|
|
||||
|
Connector:
|
MC4 Compatible
|
|
|
|
||||
|
Frame:
|
Anodized Aluminium Alloy, silver color
|
|
|
|
||||
|
Cable:
|
TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length
|
|
|
|
||||
|
Standard Test Conditions:
|
AM1.5 100MW/cm 25°C
|
|
|
|
||||
|
Electrical Data(STC)
|
|
|
|
|
||||
|
Rated Power Watt- Pmax (W)
|
LR5-54HTH-415M
|
LR5-54HTH-420M
|
LR5-54HTH-425M
|
LR5-54HTH-430M
|
||||
|
Maximum Power Voltage-Vmp(V)
|
32.24
|
32.44
|
32.64
|
32.84
|
||||
|
Maximum Power Current- Imp (A)
|
12.88
|
12.95
|
13.03
|
13.10
|
||||
|
Open Circuit Voltage- Voc (V)
|
38.53
|
38.73
|
38.93
|
39.31
|
||||
|
Short Circuit Current- Isc (A)
|
13.92
|
14.00
|
14.07
|
14.15
|
||||
|
Module Efficiency (%)
|
21.3
|
21.5
|
21.8
|
22.0
|
||||
|
STC
|
Irradiance 800W/m², Ambient temperature 20℃,Wind speed 1m/s
|
|
|
|
||||
|
Maximum System Voltage
|
1500VDC
|
|
|
|
||||
|
Max Series Fuse Rating
|
25A
|
|
|
|
||||
|
Limiting Reverse Current
|
30A
|
|
|
|
||||
|
Operational Temperature
|
40°C~+85°C
|
|
|
|
||||
Packing & Payment Terms
|
Packaging
|
36pcs/pallet. 936pcs/40'HQ
|
|
|
|
|||
|
Payment terms
|
EXW
|
|
|
|
|||
|
|
FOB
|
|
|
|
|||
|
|
CFR(C&F)
|
|
|
|
|||
|
|
CIF
|
|
|
|
|||
|
Delivery time
|
7~10days after receiving deposit payment
|
|
|
|
|||
Certificate
Cases Study
Bifacial Solar Panel Project
Ground Mounted
7.2MW
in Poland
Solar power Station project
Ground Mounted
11.08 MW
in Germany
in Germany
Roof top Project
Q3,2020
89.5KW
in
Vietnam
Black Solar Panel Project
Roof top
3.79 MW
in
Spain
