Quick Details
-
Brand Name:
-
Apure
-
Model Number:
-
AYT
-
Name:
-

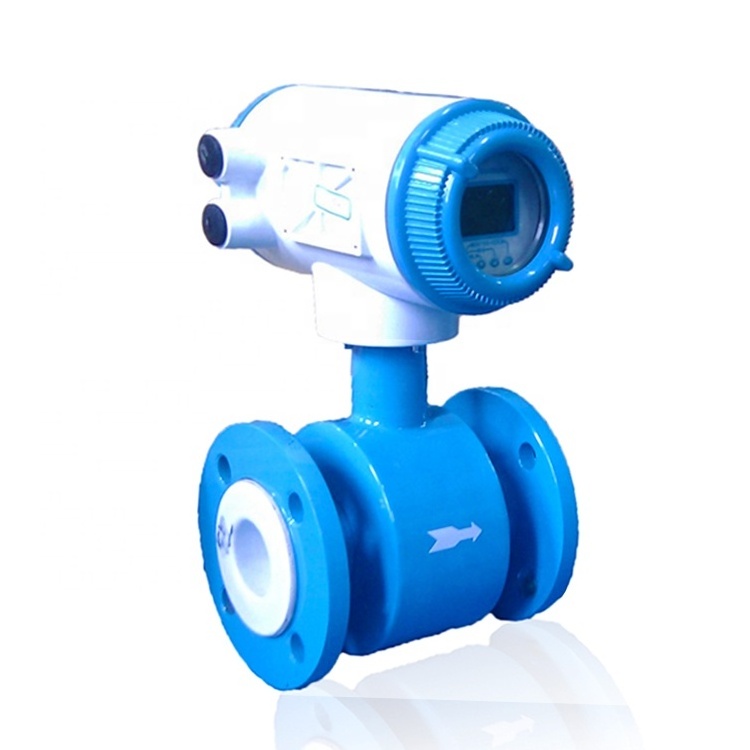

sewage waste water electromagnetic split type flow meter
-
Application:
-
Measuring Liquids
-
Accuracy:
-
High precision
-
Output:
-
4-20mA
-
Connection:
-
Flange Clamp
-
Pipeline caliber:
-
10-3200
-
Power supply:
-
DC24 V/220VAC
-
Usage:
-
Liquid
-
Keywords:
-
Magnetic flowmeter
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1 year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Apure
-
Model Number:
-
AYT
-
Name:
-
sewage waste water electromagnetic split type flow meter
-
Application:
-
Measuring Liquids
-
Accuracy:
-
High precision
-
Output:
-
4-20mA
-
Connection:
-
Flange Clamp
-
Pipeline caliber:
-
10-3200
-
Power supply:
-
DC24 V/220VAC
-
Usage:
-
Liquid
-
Keywords:
-
Magnetic flowmeter
Product Description
Flow Parameter Setting
|
PV Unit
|
option: L/s L/m L/h m3/s m3/m m3/h USG/s USG/m USG/h Kg/s Kg/m Kg/h t/s t/m t/h
default = m3/h ;define the unit of the flow rate L (liter), h(hour), t(ton), s(second) , m(minute) |
|
PV Decimal
|
option: 0 1 2 3 ,default = 1
define the decimal point position of the flow rate. |
|
Flow range
|
Float point: 99999999.00-0.00 m3/h ,default = 100.0 m3/h
When the instantaneous flow rate reaches this set value, the output current is 20mA, Change this parameter will affect: current output, high and low flow alarm, etc. |
|
Low flow cut-off
|
Float point: 9.90 ~ 0.00 % ,default = 0.0 %
The set value is a percentage.of flow range |
|
Low alarm
|
Float point: 99.00 ~ 0.00 % ,default = 0.0 %
This value is a percentage of flow range. for example, if this value is setup to ten(10), then Equivalent to ten percent(10%) of flow range. If the Absolute value of instantaneous flow < (flow range × 10%),then the reansmitter willl otput the high alarm signal ,the contact of high alarm will close . |
|
High alarm
|
Float point: 99.00 ~ 1.00 % ,default = 90.0 %
This value is a percentage of flow range. for example, if this value is setup to ten(10), then Equivalent to ten percent(10%) of flow range. If the Absolute value of instantaneous flow > (flow range × 10%),then the reansmitter willl otput the high alarm signal ,the contact of high alarm will close . |
|
Damping time
|
Float point: 30.0 ~0.1 ,default = 0.1
NOTE: for this type transmitter , no need to set damping time, flow measurement is very stable. So you can keep the damptime is default "0.1".
|
|
Bid direction
|
Option:bid,reverse,positive ;default = bid
When set to positive, the reverse flowrate will not be displayed (display zero);When set to reverse, the forward flow rate will not be displayed (display zero);When set to Bi-directional,the positive and negative flow can be displayed. |
|
Actual direction
|
Option:reverse,positive;default = positive
|
Features:
1.
There is no movable part in the pipes ,hence ,nothing resista the flow and to cause pressure loss or jamming.
2.
Measurement is free from series of influences e.g medium density,elasticity ,temperature or electrical conductivity.
3.
Corrosion resistance and wearability standard among other indexes are met via selecting different materials for lining and electrodes
4.
The products are equipped with high resoluction backlighted LCD display, which is integrated with menus with both language of english and chinese, it is up to the users' needs to modify the measuring range on site.
5.
The devices have also been integrated with series of communiction prorocals i.e.RS485. RS232 ,HART and MODBUS.
6.
With programmable low frequency rectangular wave excitation,flow stability is promoted on less power loss.
7.
Both power off protection and overrang alarming orients for measured calue,besides,it is also possible to change medium flow direction via programming the integrated sensor,which means installation of sensors are not limited to flow direction and messuring is operatable with both the flow directions.
8.
Thers instrument do not suit for measuring gas flw or nonconductive liquids.
Main technical parameter
Nominal path series DN(mm)
Piped PTFE Lining:
10 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 450 500 600
Piped rubber lining:
40 50 65 80 100 125 150 200 250 300 350 400 500 600 800 1000 1200
1
.
Flow direction:
positive and negative net flow
2.Measure extention ratio: 150:1
3.Repeating erro: ±0.1% of the meterage
4.Accuracy grade: pipeline style: 0.5 1.0
5.The temperature of themeasured medium:
Ordinary rubber underlay:-20~+60
High temperature rubber underlay:-20~+90
Polythene underlay: -30~+100
High temperature underlay:-30~+180
6.Rating work pressure:
Pipeline style : DN10-65:≤2.5MPA
DN80-DN150:≤1.6MPA
DN200- DN 1200:≤1.0MPA
2. Measurement is free from series of influences e.g medium density,elasticity ,temperature or electrical conductivity.
3. Corrosion resistance and wearability standard among other indexes are met via selecting different materials for lining and electrodes
4. The products are equipped with high resoluction backlighted LCD display, which is integrated with menus with both language of english and chinese, it is up to the users' needs to modify the measuring range on site.
5. The devices have also been integrated with series of communiction prorocals i.e.RS485. RS232 ,HART and MODBUS.
6. With programmable low frequency rectangular wave excitation,flow stability is promoted on less power loss.
7. Both power off protection and overrang alarming orients for measured calue,besides,it is also possible to change medium flow direction via programming the integrated sensor,which means installation of sensors are not limited to flow direction and messuring is operatable with both the flow directions.
8. Thers instrument do not suit for measuring gas flw or nonconductive liquids.
Main technical parameter
Nominal path series DN(mm)
Piped PTFE Lining:
10 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 450 500 600
Piped rubber lining:
40 50 65 80 100 125 150 200 250 300 350 400 500 600 800 1000 1200
1 . Flow direction: positive and negative net flow
Ordinary rubber underlay:-20~+60
High temperature rubber underlay:-20~+90
Polythene underlay: -30~+100
High temperature underlay:-30~+180
6.Rating work pressure:
Pipeline style : DN10-65:≤2.5MPA
DN80-DN150:≤1.6MPA
DN200- DN 1200:≤1.0MPA
