Quick Details
-
Memory Type:
-
DDR3
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
SOC
-
FSB / HT:
-
2.00GHz
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Integrated celeron J1900 quad core 2.0GHz processor
-
Ram:
-
1*DDR3L Ram socket up to 8GB
-
COM:
-
2 * COM
-
Display:
-
Intel HD Graphics,VGA+HD-MI
-
Power Supply:
-
DC 12V
-
Expansion Slot:
-
1* Mini-PCIE (Support Wifi/3G/4G),1* MSATA
-
Dimension:
-
12*12cm
-
Warranty:
-
2 Years
-
OS:
-
WIN7/WIN10/LINUX
Quick Details
-
Maximum Ram Capacity:
-
8GB
-
Application:
-
Mini PC;Thin Client;Digital Signage etc.
-
Form Factor:
-
120mm x 120mm
-
Memory Type:
-
DDR3
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
SOC
-
FSB / HT:
-
2.00GHz
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Integrated celeron J1900 quad core 2.0GHz processor
-
Ram:
-
1*DDR3L Ram socket up to 8GB
-
COM:
-
2 * COM
-
Display:
-
Intel HD Graphics,VGA+HD-MI
-
Power Supply:
-
DC 12V
-
Expansion Slot:
-
1* Mini-PCIE (Support Wifi/3G/4G),1* MSATA
-
Dimension:
-
12*12cm
-
Warranty:
-
2 Years
-
OS:
-
WIN7/WIN10/LINUX
|

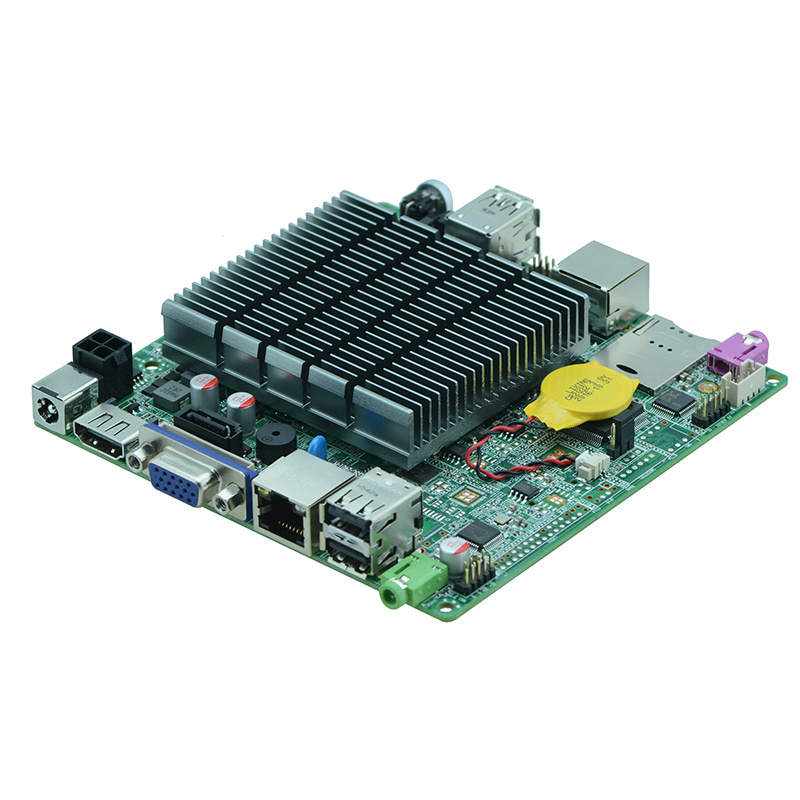

Model No. |
STX-N29 VER:1.5 |
|
CPU |
Integrated I ntel J1900/2.00GHz Quad core processor, TDP1 0 W |
|
Chipset |
Based on Intel Bay trail SOC platform |
|
Memory |
1 * DDR3 SODIMM,Support 1 600/1333MHz DDR3L/1.35V Memory , up to 8 GB |
|
Graphics
|
Integrated Intel HD Graphics |
|
Provide 1*VGA,1*HDMI (LVDS optional) |
|
|
Supprot VGA+HDMI Synchronous/asynchronous display |
|
|
LAN |
1* RTL8111 F Gigabit Ethernet support wake on LAN/PXE |
|
Storage |
1* SATA;1*mSATA |
|
Audio
|
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out, amplifier |
|
Advise 2 Ω 5W speaker |
|
|
Expansion Slots
|
1 * Mini- PCIE slot support 3G/WIFI module |
|
1* MSATA slot support SSD/WIFI.SSD transfer rate up to 3Gbps |
|
|
Rear I/O
|
3*USB2.0,1*USB3.0 |
|
1* HDMI |
|
|
1* VGA |
|
|
1* RJ-45 Gigabit Ethernet connector |
|
|
1* Line out(Green),1* MIC(Violet) |
|
|
1* RJ45 COM(Console) |
|
|
1* Power switch |
|
|
1* 12V DC_JACK power input |
|
|
Internal I/O
|
1* J VGA1 (1 * 12 pin ) same signal with DB15 |
|
1 * RS232 serial port |
|
|
2 * USB2.0 (2*5pin) |
|
|
1* PS/2 KB/MS Connector(1* 6Pin ) |
|
|
1*Front panel audio connector 2*5pin |
|
|
1* SIM card socket |
|
|
1* PWROUT (H DD power supply connector) 1*4pin |
|
|
1* f ront panel function buttons and indicator connector 2*5Pin |
|
|
1* 4pin ATX 12V power input |
|
|
1* Power amplifier interface(1*4pin) |
|
|
FAN interface |
1* 4pin CPU FAN |
|
GPIO |
Support 4 way input and output GPIO |
|
BIOS |
64Mb Flash ROM |
|
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
|
Power Input |
DC_12V s ingle power supply |
|
Operating Temp. |
-10℃~6 0℃ |
|
Storage Temp. |
- 2 0℃~ 85 ℃ |
|
Humidity |
5%-95% (relative humidity; non-condensing) |
|
Dimension |
120mm x 120mm |
