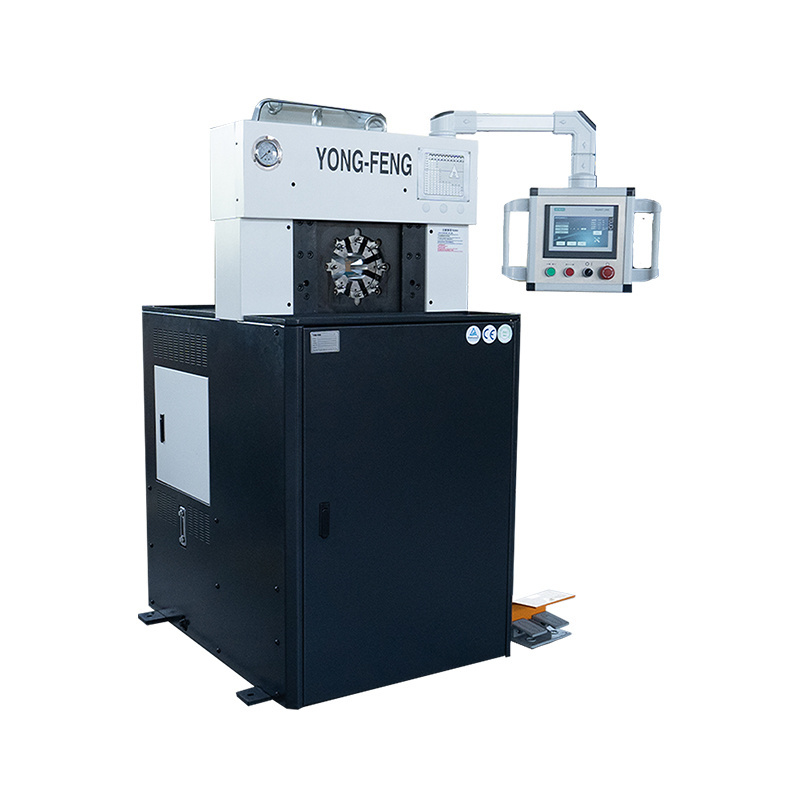

The Y160D hose crimping machine is equipped with Back-crimp Device and Rearview Mirror, which are very convenient for back end crimping.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
730*1000*1620mm
-
Weight:
-
1230
-
Power (kW):
-
5.5kW
-
Model:
-
Y160D
-
Max Hydraulic Hose Size:
-
2" 6SP (ID 51mm)
-
Crimping Range:
-
3mm-89mm
-
Max Opening:
-
+65mm
-
Accessible Diameter:
-
160mm
-
Master Dies Length:
-
100mm
-
weight:
-
1230kg
-
Maxi. Crimping Force:
-
2800kN/280T
-
Size:
-
730*1000*1620mm
-
System Pressure:
-
31.5Mpa
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YONG-FENG
-
Voltage:
-
110/220/380/400/415V
-
Dimension(L*W*H):
-
730*1000*1620mm
-
Weight:
-
1230
-
Power (kW):
-
5.5kW
-
Model:
-
Y160D
-
Max Hydraulic Hose Size:
-
2" 6SP (ID 51mm)
-
Crimping Range:
-
3mm-89mm
-
Max Opening:
-
+65mm
-
Accessible Diameter:
-
160mm
-
Master Dies Length:
-
100mm
-
weight:
-
1230kg
-
Maxi. Crimping Force:
-
2800kN/280T
-
Size:
-
730*1000*1620mm
-
System Pressure:
-
31.5Mpa
Product Description
Main Features
Y160D crimiping machine hydraulic hose 2 is leading in terms of speed, precision, reliability and durability.
She's suitable for high strength pressure hydraulic hoses and industrial hoses,
and designed to handle the high production volumes hoses.
Y160D crimiping machine hydraulic hose 2 is strong and compact, easy to move from one place to another.
|
Product Parameter
|
|
|
|
|||
|
Specifications
|
H.C. Material
|
Forge Steel(Cr40)
|
|
|||
|
|
Crimping Range
|
3mm-89mm
|
|
|||
|
|
Max. Hydraulic Hose
|
2" 6SP (ID 51mm)
|
|
|||
|
|
Max Opening
|
+65mm
|
|
|||
|
|
Opening without Dies
|
160mm
|
|
|||
|
|
Crimping Force
|
2800kN/280T
|
|
|||
|
|
Length of Master Dies
|
100mm
|
|
|||
|
|
Length of Dies
|
45/50/65/80mm
|
|
|||
|
|
System Pressure
|
31.5Mpa
|
|
|||
|
|
Operation Mode
|
SIEMENS PLC
|
|
|||
|
|
Power Voltage
|
110V-480V
|
|
|||
|
|
Matching Power
|
5.5kw
|
|
|||
|
|
Dimension (L*W*H)
|
730×1000×1620mm
|
|
|||
|
|
Net Weight
|
1230kg
|
|
|||
|
|
Die Sets
|
14sets
|
|
|||
Detailed Images
Product Application
YONG-FENG Y160D Advantage: SIEMENS PLC System, Pressure Control, Database Memory, Energy Saving Mode, Multilingual Interface.
It makes crimping more accurate, faster and simpler.
Attribute: Forge Steel
Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC26-30°, hardness of inside layer is HRC59-63°, Eht 2mm.
Attribute: Strong Connection
Use Cr12 standard die steel which is a classical alloy tool steel, domestic implementation standard is GB/T 1299-2000.
Easy Crimping
Siemens PLC System
The Y160D is equipped with Siemens PLC system, which makes the machine can crimping by Pressure Control, and have new features such as Database Memory, Energy Saving Mode, Multilingual Interface and so on.
Radial Crimping
The special design of Y160D is Radial-crimp Master Dies, and it have 160mm Large Opened Diameter, which is very sutiable for the flange and 90° elbow fittings crimping works.
Packing & Delivery
|
Packing
|
|
|
|
Size
|
830(L) * 1100 (W) * 1720 (H)mm
|
|
|
Gross Weight
|
1250kg
|
|
|
Packaging Details
|
The normal package for our hydraulic hose crimper is Wooden Plywood Crate. The outside package is standard export wooden case, and the inner package is stretch film or packaged according to customers special request.
|
|
Delivery
* The normal models of hydraulic hose crimper are in stock, they can be delivered once the payment is finished. As for the customized ones, we promise that they can be deliverd within a week after we received the payment.
* Transportation, the first choice is shipping, air or land is also avaliable if customers have special request.
Certifications
Company Strength
Yongfeng,the professional manufacturer of hydraulic hose crimpers, cutter, skiving machine, test bench, hoses & fittings assembly and accessories for over 20 years.
Yongfeng
hydraulic hose crimpers supply the Portable, On-site mobile, Workshop and Industrial hose crimpers, which have widely used in industries of hydraulic repair service of construction machinery, agricultural machinery, vehicle repair, production of industrial hoses, hydraulic equipments, On-site service, oil fields, mining hydraulic prop, greenhouse, galvanized steel pipes etc.
Yongfeng
hydraulic hose crimpers
have covered more than 20 domestic provinces and cities in China's markets and exported to more than 80 countries as follows: European market, such as Poland, Bulgaria, Germany, Italy, Denmark, Russia, Malta; American market, such as Uruguay, Mexico, Bolivia, Columbia, Canada; Oceania market, such as Vanuatu, New Zealand, Australia; Asia market, such as Sri Lanka, India, Pakistan, Philippines; Middle East market, such as Kuwait, UAE; African market, such as Algeria, South Africa, and so on.
Our services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory & Office.
After-Sales Service
* Warranty for 3 years.
* Training how to instal and use the machine.
* Provide free quick-wear part.
Payment Term
Trade Assurance
* PAY to our company's CITIBANK account designated by Alibaba.com with credit card or bank transfer.
* 100% product quality protection; 100% on-time shipment protection; 100% payment protection.
T/T
* 100% T/T in advance(normal models in stock).
* 50% T/T in advance, balance paid before delivery(for the customized models).
FAQ
1.Q: What's the difference of your machine with others?
A: FORGE Steel machine head, 3 times stronger than general machine.
CNC operation system, high crimp accuracy which is within 0.01mm.
2.Q: Are you the manufacturer or trading company?
A: We are the manufacturer for crimping machine over 20 years, since 1992.
3.Q: What about the price?
A: Competitive price, the advanced technology and high quality you ever have.
4.Q: Why we choose YONG-FENG?
A: CE & ISO certifications, Alibaba Assessed Supplier and every hydraulic hose crimper warranted for 3 years.
5.Q: What is the MOQ of 8mm hydraulic crimping machine ?
A: We would like to provide 1 set for you test.
6.Q: If I can not find the machine which I need,what should I do?
A: Pls contact me on line or inquiry, write down your request and email, I will reply you as soon as possible.
