•Fence wire panels are galvanized
with the best technology to make
them strong corrosion resistant.
•Welded mesh panels are often
crimped to add more lateral strength to the
panels.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
YQ
-
Model Number:
-
YQ-W1116
-
Product name:
-
Galvanized wire mesh fence
-
Material:
-
galfan steel wire, hot dip galvanized iron wire
-
Packing:
-
on pallet
-
Surface treatment:
-
heavy zinc coating , hot dip galvanized
-
Length:
-
2.0m, 2.5m, 3.0m, etc
-
Height:
-
0.5m---2.5m, etc
-
Wire diameter:
-
4.0mm, 5.0mm, 6.0mm,
-
post size:
-
50mm*50mm, 60mm*60mm, 80*80mm
-
post thickness:
-
1.5mm, 2.0mm, 2.5mm, 3.0mm
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, ECO FRIENDLY, Waterproof
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YQ
-
Model Number:
-
YQ-W1116
-
Product name:
-
Galvanized wire mesh fence
-
Material:
-
galfan steel wire, hot dip galvanized iron wire
-
Packing:
-
on pallet
-
Surface treatment:
-
heavy zinc coating , hot dip galvanized
-
Length:
-
2.0m, 2.5m, 3.0m, etc
-
Height:
-
0.5m---2.5m, etc
-
Wire diameter:
-
4.0mm, 5.0mm, 6.0mm,
-
post size:
-
50mm*50mm, 60mm*60mm, 80*80mm
-
post thickness:
-
1.5mm, 2.0mm, 2.5mm, 3.0mm
Products Description
Livestock fence horse fence cattle fence Farm Gate
1.Surface treatment:Hot dipped/Electro galvanized,Electrostatic spraying
2.Material:three types:round pipe,square pipe,oval pipe
3.Advantage:good oxidation resistance,strong,durable and flexible construction Corral fence
4.Process:
1)galvanizing before welding or made of galvanized steel tube and then welded
2)welding before galvanizing (only feasible for guardrail with relatively small size)
2.Material:three types:round pipe,square pipe,oval pipe
3.Advantage:good oxidation resistance,strong,durable and flexible construction Corral fence
4.Process:
1)galvanizing before welding or made of galvanized steel tube and then welded
2)welding before galvanizing (only feasible for guardrail with relatively small size)
Products details

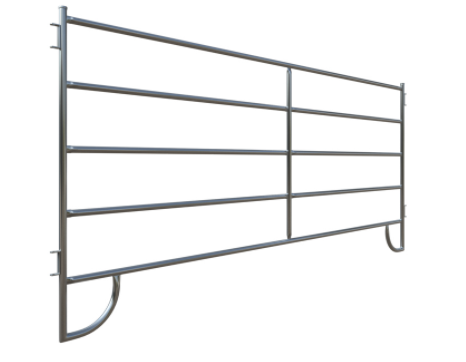

Livestock Sheep Fence Panels
Round tube stype
Round tube stype
|
Popular size
|
1.8m highx2.1m wide, 1.6m highx2.09m wide
|
|
Horizontal rails
|
1.8m high with 6 rails,1.6m high with 5 rails
|
|
Fence post
|
32mm,40mm,48mm
|
|
Rails
|
32mm,40mm 48mm
|
|
Wall thickness
|
1.5mm,2.0mm
|
|
Zinc coating
|
40-60g/m2,80-100g/m2
|
|
Accessories
|
with caps,lugs,pins and feet
|
Sq
uare Corral Fence
|
Height×Length
|
1800mm×2100mm(6 rails); 1600mm×2100mm(5 rails)
Different specifications are available according to customers' special inquiry or detailed drawings. |
|
Vertical Pipe
|
40×40×1.6mm/2.0mm; 50×50×1.6mm/2.0mm
|
|
Horizontal Pipe
|
40×40×1.6mm/2.0mm; 50×50×1.6mm
|
|
|
|
|
Height×Length
|
1800mm×2100mm ( 6 rails ); 1600mm×2100mm ( 5 rails )
Different specifications are available according to customers' special inquiry or detailed drawings. |
|
Vertical Pipe
|
40×40×1.5mm/2.0mm; 50×50×1.5mm/2.0mm square pipes
|
|
Horizontal Pipe
|
30×60×1.5mm/2.0mm; 40×80×1.5mm/2.0mm oval rails
|
|
|
|
wire mesh fence install with H type post
wire mesh fence with Peach type post
wire mesh fence with square post
358 high security wire mesh fence
358 Anti Climb Security Fence is one security fence that is extremely difficult to penetrate through, because the small mesh
aperture is effectively finger proof, and extremely difficult to attack with traditional hand tools.
Anti climb fence is also called clear view fence, providing the highest degree of security with excellent see through
visibility.Anti climb fence has toe and finger proof profile. With spacing specification of 75mm x 12.5mm, it is hard for adult
fingers and toes to go through. It has exclusive thickness, anti-cutting materials and its framework is strongly resistant.
358 fencing Surface treatment: 1) Use the hot-dipped galvanized (or electro galvanized) wire as material,after welding,begin PVC or plastic spraying.
2) Use the low carbon steel wire welded the panel,then electro or hot-dipped galvanized treatment, finally PVC treatment.
3) In Europe,generally choose the galvanized after welding or PVC after welding.
Electric galvanization
Hot dipped galvanization
PVC/PE dipped coating
Powders sprayed coating
aperture is effectively finger proof, and extremely difficult to attack with traditional hand tools.
Anti climb fence is also called clear view fence, providing the highest degree of security with excellent see through
visibility.Anti climb fence has toe and finger proof profile. With spacing specification of 75mm x 12.5mm, it is hard for adult
fingers and toes to go through. It has exclusive thickness, anti-cutting materials and its framework is strongly resistant.
358 fencing Surface treatment: 1) Use the hot-dipped galvanized (or electro galvanized) wire as material,after welding,begin PVC or plastic spraying.
2) Use the low carbon steel wire welded the panel,then electro or hot-dipped galvanized treatment, finally PVC treatment.
3) In Europe,generally choose the galvanized after welding or PVC after welding.
Electric galvanization
Hot dipped galvanization
PVC/PE dipped coating
Powders sprayed coating
Product features
Normally wire mesh fence panel and posts are packed on pallet
•Easy and quick installation.
•Excellent aesthetic appeal.
•Dual coated.
•Excellent aesthetic appeal.
•Dual coated.
•The V branch on each panel adds
extra strength to it
•Long life due to polyester powder
coating.
extra strength to it
•Long life due to polyester powder
coating.
•Fence wire panels are galvanized
with the best technology to make
them strong corrosion resistant.
•Welded mesh panels are often
crimped to add more lateral strength to the
panels.
Product packaging
Product application
Wire Mesh Fence is used to fence buildings, agriculture field, fence prison, or for military fence .
