Quick Details
-
Brand Name:
-
E-link
-
Model Number:
-
ETH-DIMC2416MP
-
Place of Origin:
-
Guangdong, China
-
Forward & Filtering Rate:
-
1,488,000,000pps (10000Mbps)
-
Power Input Overload:
-
Automatic Resettable
-
Processing Type:
-
Store-and-Forward
-
Max Packet Length:
-
10K Bytes Jumbo Frame
-
Connector:
-
16 x RJ45
-
Optical Port::
-
4 x 1000Base-X SFP
-
Operating Temperature:
-
-40°C to 80°C (-40°F to 176°F)
-
Dimensions (WxDxH)::
-
155 x 115 x 85 mm
-
Input Power:
-
48~57VDC, Redundant Power (6-pin Terminal Block)
-
PoE Budget:
-
Up to 480-watt PoE budget
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
110Gbps
-
Brand Name:
-
E-link
-
Model Number:
-
ETH-DIMC2416MP
-
Place of Origin:
-
Guangdong, China
-
Forward & Filtering Rate:
-
1,488,000,000pps (10000Mbps)
-
Power Input Overload:
-
Automatic Resettable
-
Processing Type:
-
Store-and-Forward
-
Max Packet Length:
-
10K Bytes Jumbo Frame
-
Connector:
-
16 x RJ45
-
Optical Port::
-
4 x 1000Base-X SFP
-
Operating Temperature:
-
-40°C to 80°C (-40°F to 176°F)
-
Dimensions (WxDxH)::
-
155 x 115 x 85 mm
-
Input Power:
-
48~57VDC, Redundant Power (6-pin Terminal Block)
-
PoE Budget:
-
Up to 480-watt PoE budget
Products Description

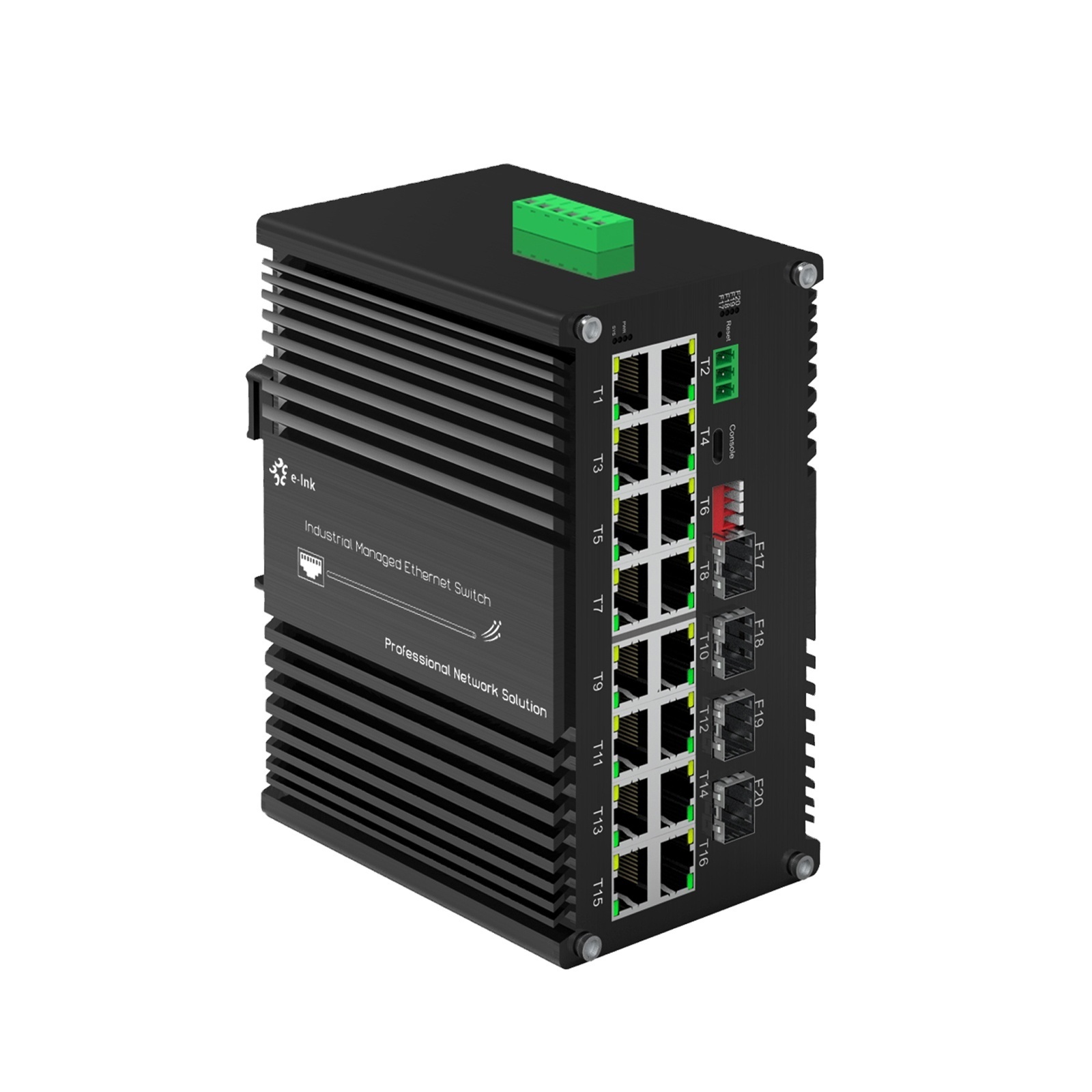

ETH-IMC2416MP Series is the L2+ managed 16-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened Ethernet switch. The Switch has 16 TP ports and 4 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP support 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
|
Product Name
|
Industrial L2+ 16-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP Managed Ethernet Switch
|
|
|
|
|
Connector
|
16 x RJ454 ports
4 x 1000Base-X SFP |
|
|
|
|
PoE Budget
|
Up to 480-watt PoE budget
|
|
|
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
|
|
|
Input Power
|
48~57VDC, Redundant Power (6-pin Terminal Block)
|
|
|
|
|
Casing
|
IP40 Aluminum Case
|
|
|
|
|
Installations
|
DIN-Rail / Wall-mount
|
|
|
|
|
Dimensions (WxDxH)
|
155 x 115 x 85 mm
|
|
|
|
|
Weight
|
1.2Kg
|
|
|
|
