Quick Details
-
Optical Resolution:
-
5mil(0.127mm)@PCS90%
-
Scan Speed:
-
1500 times/s&75scans/s
-
Brand Name:
-
NAITING
-
Place of Origin:
-
China
-
Materials:
-
ABS+PC
-
Bite Error Rate:
-
Less than 1/5million
-
Light source:
-
650nm laser(Safe visible laser diode)
-
Scan type:
-
20lines 5 field of 4 parallel lines
-
Print of contrast:
-
30%( UPC/EAN 100%)
-
Scan Angle:
-
5 directional
-
Laser Class:
-
Meet the Grade I National Criteria for Laser Safety
-
Application:
-
Good stability,suitable for various commercial uses, and industrial
-
Product Name:
-

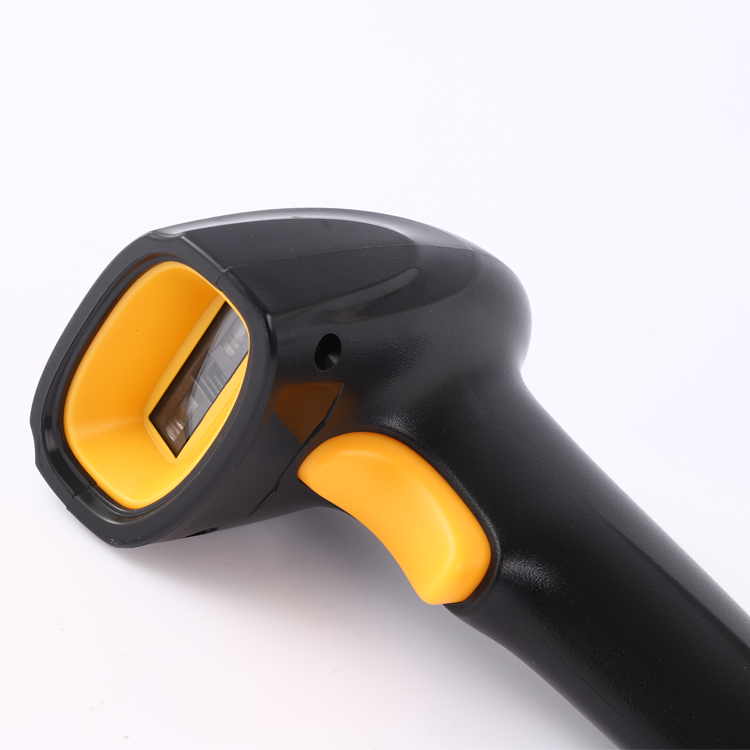

NATING Handheld Laser 1d Barcode Scanner
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
A4 SIZE
-
Optical Resolution:
-
5mil(0.127mm)@PCS90%
-
Scan Speed:
-
1500 times/s&75scans/s
-
Brand Name:
-
NAITING
-
Place of Origin:
-
China
-
Materials:
-
ABS+PC
-
Bite Error Rate:
-
Less than 1/5million
-
Light source:
-
650nm laser(Safe visible laser diode)
-
Scan type:
-
20lines 5 field of 4 parallel lines
-
Print of contrast:
-
30%( UPC/EAN 100%)
-
Scan Angle:
-
5 directional
-
Laser Class:
-
Meet the Grade I National Criteria for Laser Safety
-
Application:
-
Good stability,suitable for various commercial uses, and industrial
-
Product Name:
-
NATING Handheld Laser 1d Barcode Scanner
|
OPERATIONAL PARAMETER
|
|
|
|
Light Source
|
Aiming: 617nm LED
|
|
|
Image (Pixels)
|
640 pixels (H)*480 pixels (v)
|
|
|
Depth of Filed
|
55~320mm (0.33mm pcs 0.9, EAN13)
|
|
|
Scan Angle
|
Yaw 55°, rotation 30°, pitch 65°
|
|
|
Field of View
|
45° horizontally, 35° vertical
|
|
|
Read Resolution
|
≥ 4mil
|
|
|
Print Contrast
|
≥ 20%
|
|
|
Visual Indicator
|
Blue LED light, buzzer
|
|
|
Interface
|
RS-232; USB
|
|
|
PHYSICAL CHARACTERISTICS
|
|
|
|
Dimension (L*W*H）
|
95mm*70mm*162mm (L*W*H）
|
|
|
Weight
|
128g
|
|
|
Cable
|
Standard 1.6M
|
|
|
Material
|
ABS + PC
|
|
|
Shock
|
Designed to 2.0m drops
|
|
|
POWER PARAMETER
|
|
|
|
Input Voltage
|
5VDC
|
|
|
Working Current
|
400mA
|
|
|
ENVIRONMENTAL PARAMETER
|
|
|
|
Operating Temperature
|
-20℃~+60℃
|
|
|
Working Humidity
|
5%to 95% relative humidity, non-condensing
|
|
|
Storage Temperature
|
-40℃~+70℃
|
|
|
Light Levels
|
0 to 100,000 Lux (daylight)
|
|
1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5.
2D: PDF417, QRCode (Model1/2), HanXin Code, DataMatrix, Aztec, Maxicode.
