- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ASO FENCE
-
Model Number:
-
chain link fence 003
-
Wire Gauge:
-
2.5mm-4mm
-
Product name:
-
9 gauge steel wire 6ft x 50ft roll galvanised steel chain link fence
-
Keyword:
-
6ft galvanised chain link fence
-
type:
-
chain link fence
-
Wire diameter:
-
2-5mm
-
Mesh size:
-
2''x2'', 60x60, 75x75mm etc
-
Roll length:
-
10m-30m
-
Height:
-
4ft/5ft/6ft/7ft/8ft
-
Post:
-
48*2mm,60x2mm,76*3mm
-
Surface treatment:
-
Galvanized, PVC Coated
Quick Details
-
Material:
-
Galvanized Iron Wire
-
Type:
-
Wire Cloth
-
Application:
-
Fence Mesh
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ASO FENCE
-
Model Number:
-
chain link fence 003
-
Wire Gauge:
-
2.5mm-4mm
-
Product name:
-
9 gauge steel wire 6ft x 50ft roll galvanised steel chain link fence
-
Keyword:
-
6ft galvanised chain link fence
-
type:
-
chain link fence
-
Wire diameter:
-
2-5mm
-
Mesh size:
-
2''x2'', 60x60, 75x75mm etc
-
Roll length:
-
10m-30m
-
Height:
-
4ft/5ft/6ft/7ft/8ft
-
Post:
-
48*2mm,60x2mm,76*3mm
-
Surface treatment:
-
Galvanized, PVC Coated
Amazon top sale 9 gauge steel wire 6ft x 50ft roll galvanised steel chain link fence
Product Overview
Chain-link fence
(also referred to as wire netting, wire mesh fence, chain wire fence, cyclone fence, hurricane fence or diamond mesh fence)
is a type of woven fence usually made from galvanized or LLDPE-coated steel wire. The wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other. This forms the characteristic diamond pattern seen in this type of fence.
Product Specification
|
Specification of Chain Link Fence
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Opening
|
1"
|
1.5"
|
2"
|
2-1/4"
|
2-3/8"
|
2-1/2"
|
2-5/8"
|
3"
|
4"
|
|||||||||
|
Wire Diameter |
25mm
|
40mm
|
50mm
|
57mm
|
60mm
|
64mm
|
67mm
|
75mm
|
100mm
|
|||||||||
|
|
18Ga-13Ga
|
16Ga-8Ga
|
|
|
|
|
|
18Ga-7Ga
|
|
|||||||||
|
|
1.2-2.4mm
|
1.6mm-4.2mm
|
|
|
|
|
|
2.0mm-5.0mm
|
|
|||||||||
|
Length of Roll
|
0.5m-100m(or more)
|
|
|
|
|
|
|
|
|
|||||||||
|
Width of Roll
|
0.5m-5m
|
|
|
|
|
|
|
|
|
|||||||||
|
Surface treatment
|
Hot dipped galvanized or PVC coated
|
|
|
|
|
|
|
|
|
|||||||||
|
Material and specification can be made according to customers' detailed requirements inqury us ！
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Specifications of Galvanized Chain Link Fence（ASTM A392）
|
|
|
|
|
|
|
|
|
||||||||
|
Nominal Coated Wire Diameter
|
|
|
Allowable Variance
|
|
Zinc Coating Weight, minimum
|
|
Breaking Strength, minimum
|
|
||||||||
|
|
|
|
|
|
Class 1
|
Class 2
|
|
|
||||||||
|
Gauge
|
Inch
|
mm
|
Inch
|
mm
|
g/m2
|
g/m2
|
lbf
|
Newtons
|
||||||||
|
6
|
0.192
|
4.88
|
±0.005
|
±0.13
|
366
|
610
|
2170
|
9650
|
||||||||
|
9
|
0.148
|
3.76
|
±0.005
|
±0.13
|
366
|
610
|
1290
|
5740
|
||||||||
|
11
|
0.12
|
3.05
|
±0.005
|
±0.13
|
366
|
–
|
850
|
3780
|
||||||||
Product Details

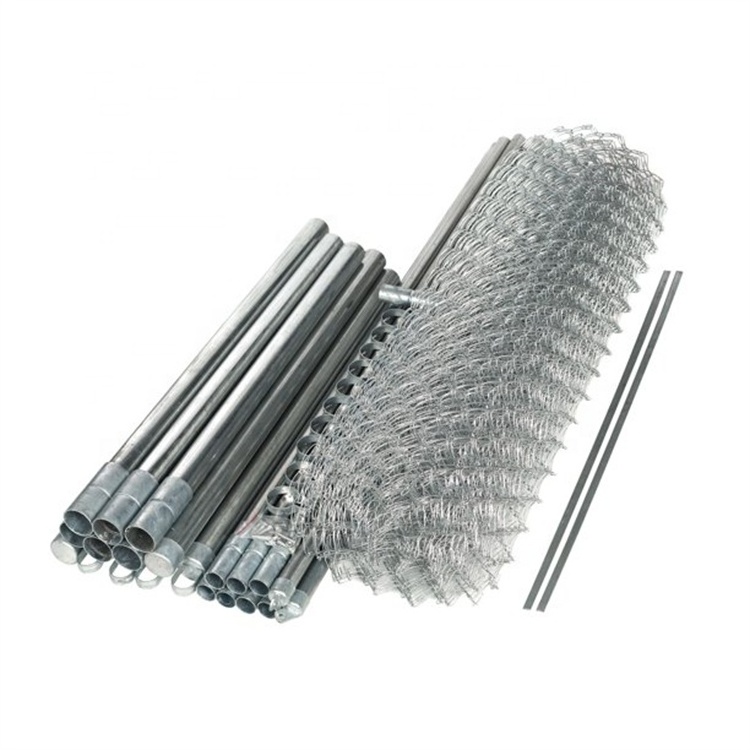

This is our 6 x 50 feet galvanized steel chain link fence. It includes the 6 x 50 feet chain link fabric made of steel which has been galvanized before weaving to eliminate burrs and sharp surfaces. It's a roll-out design for easy installation, and the top and bottom of the fabric ends are bent over to eliminate sharp edges.They are 8 ft x 1-5/8x 2-3/8 inches.High quality, easy installation and great value.
Chain link fence mesh with 6 gauge wire and 1/4" mesh is the strongest and most secure option.
High security chain link mini mesh fencing can be installed with razor barbed wire plus on the topping for higher safety.
Thicker gauge pipe is used as end posts, line posts and top rail to support the heavy weight of mini-mesh and razor barbed wire.
Accessories
Advantage of chain link fence
* Durable, high-security mini mesh fence.
* Mini mesh with heavy duty and tightly woven, anti-climbing, anti-cut with bolt cutters.
* With vinyl coated or aluminized coated, corrosive-resistant, rust-resistant, attractive and secure for many years.
* Matching framework, fittings and gates available.
* Low Maintenance.
* 15-Year Limited Warranties.
* Mini mesh with heavy duty and tightly woven, anti-climbing, anti-cut with bolt cutters.
* With vinyl coated or aluminized coated, corrosive-resistant, rust-resistant, attractive and secure for many years.
* Matching framework, fittings and gates available.
* Low Maintenance.
* 15-Year Limited Warranties.
More type
Application
Chain link fence applications
chain link fence is ideal for peace and high security fencing solution. It is recommended for the following situations：
* Prison, road, dock, airport, housing, forestry, and military use.
* Highways and bridges to help keep pedestrians safe.
* Residential, agricultural, commercial, institutional or industrial jobs.
* Highways and bridges to help keep pedestrians safe.
* Residential, agricultural, commercial, institutional or industrial jobs.
Why Choose Us
Loading container
Chain link fence Loading container
Chain link fence Loading container
Chain link fence Loading container
