1. The series welding machine adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation.
2. Speed control adopts PWM automatic voltage and speed regulation circuit, driven by DC servo motor . It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load.
3. Also this series welding machine is stable in performance despite of external temperature and voltage variation.
4. This series welding machine is easy operating ,high welding speed and good work quality.
- Product Details
- {{item.text}}
Quick Details
-
Frequency:
-
50HZ
-
Welding Area:
-
100000m2
-
Dimensions:
-
3.0mm-3.5mm
-
Usage:
-
HDPE,LDPE,LLDPE,PVC welding
-
Weight (KG):
-
9 KG
-
Power (kW):
-
800
-
color:
-
red
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RH
-
Voltage:
-
220V
-
Frequency:
-
50HZ
-
Welding Area:
-
100000m2
-
Dimensions:
-
3.0mm-3.5mm
-
Usage:
-
HDPE,LDPE,LLDPE,PVC welding
-
Weight (KG):
-
9 KG
-
Power (kW):
-
800
-
color:
-
red
high frequency manual welding pvc machine hdpe sheet plastic liners geomembrane welding machine
Product Description

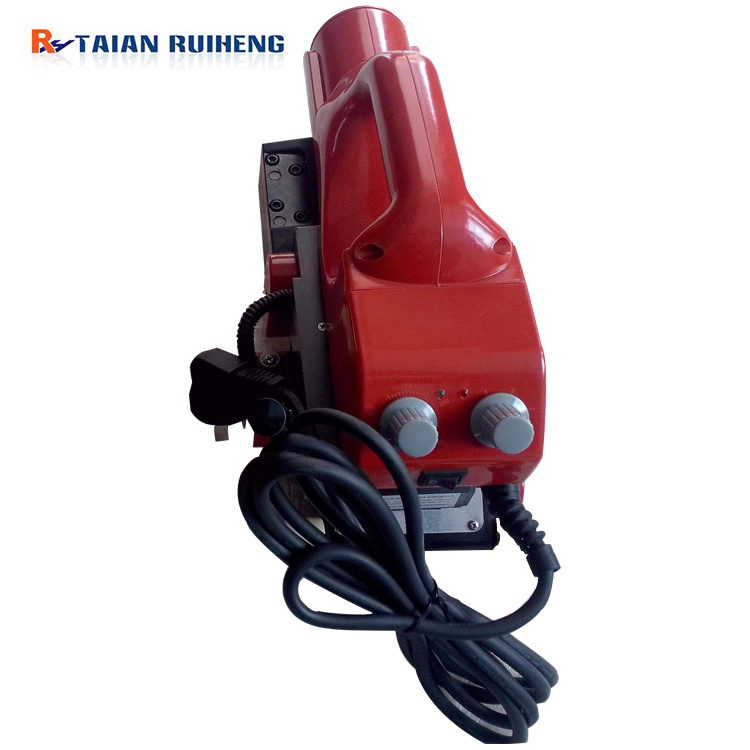

1.0mm HDPE geomembrane wedge welder
Geomembrane welding machine can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.
The control of this series of welding machine adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation; speed control adopts PWM automatic voltage and speed regulation circuit, driven by DC servo motor, with great output torque and the operating is stable.
It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load. Also this series of welding machine is stable in performance despite of external temperature and voltage variation.
Specification
|
ITEM
|
TECHNICAL PARAMETERS
|
|
Voltage
|
220V
|
|
Frequency
|
50/60Hz
|
|
Power
|
800W
|
|
Welding speed
|
0.5-5m/min
|
|
Heating temperature
|
0-450℃
|
|
Thickness of material to be welded
|
0.2mm-1.5mm
|
|
Overlap width
|
10cm
|
|
Welding width
|
12.5mm×2, interior cavity 12mm
|
|
Seam strength
|
≥85% base material (tensile resistant in shear direction)
|
|
Weight
|
5Kg
|
|
Insulation class
|
class II
|
Packing & Delivery
Size:
345(L) * 200(W) * 245 (H)
Weight:
8.5KG
Port:
Qingdao
Packaging Details:
Packing by aluminium box, if customers have the special requests, then we can do it as the customer's requests.
Application
Main Features
Company Profie
Tai’an City RuiHeng Building Materials Co., Ltd
is specialized in the research, development, production and sales of geosynthetic materials, plastic products and plastic machinery. Our company is devoted to geosynthetic material research and development and application.
Our main products are hdpe geomembrane liner,plastic geogrid, geotextile,3D geomat,geocell,geomembrane welding machine,extrusion welder and welding rod,etc. Our products have been widely used by clients in more than 20 countries and regions. Our products are applied in aquaculture, railways, highways, water conservancy, electric power, metallurgy, ports and municipal engineering
construction. We have won the praises of customers.
Our main products are hdpe geomembrane liner,plastic geogrid, geotextile,3D geomat,geocell,geomembrane welding machine,extrusion welder and welding rod,etc. Our products have been widely used by clients in more than 20 countries and regions. Our products are applied in aquaculture, railways, highways, water conservancy, electric power, metallurgy, ports and municipal engineering
construction. We have won the praises of customers.
FAQ
Q: Are you a factory or trading company?
Q: How to solve the technical problems?
We have one professional technicians team who can solve problems.
A: We are the professional factory in China.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How to ship the machines?
We cooperate with FEDEX,TNT,DHL,UPS,EMS for long term,the machines arrive at your hand in 5 or 7 days.
Q: How does your factory do regarding quality control?
A: Quality is priority. All people always attach great importance to quality controlling from the very beginning to the very end.
Our factory has gained ISO9001;CPI authentication,We are the National High-Tech Enterprise.We have the professional technical personnel team,advanced equipments;Skilled production technology by ten years.
