Quick Details
-
Brand Name:
-
pansheng
-
Dimension(L*W*H):
-
896x745x935mm
-
Weight:
-
700 KG
-
Marketing Type:
-
Hot Product 2022
-
Feed port size:
-
15-45(mm)
-
feeding side:
-
≤130mm
-
Color:
-
Customer Requirement
-
Model:
-
Mining machine crusher
-
Price:
-
Negotiable
-
The Machines classification:
-
Stone Crusher Plant
-
Online Service Time:
-
24 Hours Online
-
Delivery Time:
-
stock
-
Advantage:
-
High Efficiency Low Energy
-
After sale Service:
-
Life-long Service
Quick Details
-
Application:
-
Quarry, Mining, Metallurgy, Energy & Mining Etc
-
Capacity(t/h):
-
1-4t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
pansheng
-
Dimension(L*W*H):
-
896x745x935mm
-
Weight:
-
700 KG
-
Marketing Type:
-
Hot Product 2022
-
Feed port size:
-
15-45(mm)
-
feeding side:
-
≤130mm
-
Color:
-
Customer Requirement
-
Model:
-
Mining machine crusher
-
Price:
-
Negotiable
-
The Machines classification:
-
Stone Crusher Plant
-
Online Service Time:
-
24 Hours Online
-
Delivery Time:
-
stock
-
Advantage:
-
High Efficiency Low Energy
-
After sale Service:
-
Life-long Service
Product Description

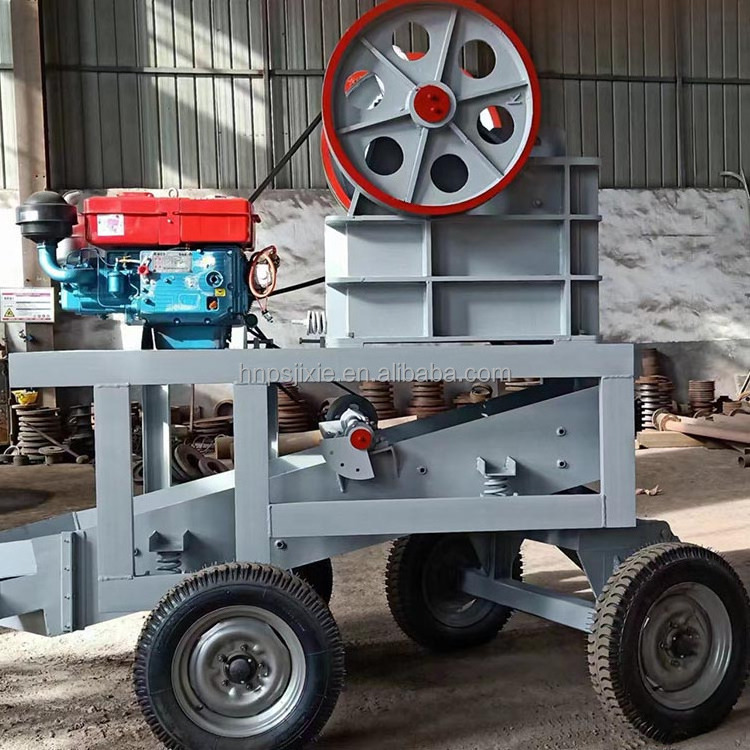

Jaw Crusher
The Stone Crushing Plant mainly consists of Vibrating Feeder, Jaw Crusher, Cone Crusher or Impact Crusher, Vibrating Screen, Belt Conveyor and Control System, etc. It is completely capable to crush and screen limestone, marble, granite, basalt, river gravel and other hard stone materials, and produce sand & gravels with various granularities for construction and building industry. We are able to design and manufacture complete crusher plants with capacity from 1-1000t/h, and to provide optimum and most economical solutions according to customers' requirements on stone specifications, output, application, etc.
Jaw crusher is a kind of stone crushing machine which is widely used as primary or secondary crusher. Baichy manufactures coarse jaw crusher and fine jaw crusher in stationary type or mobile type.
How to Work
The electric motor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or split when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electric motor rotates continuously and the movable jaw crushes and discharges the raw material periodically.
Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa, such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.
Specification
|
item
|
value
|
|
Applicable Industries
|
Manufacturing Plant, Construction works , Energy & Mining, Other
|
|
Showroom Location
|
None
|
|
Condition
|
New
|
|
Type
|
Jaw Crusher
|
|
Application
|
Quarry, Mining, Metallurgy, Energy & Mining Etc
|
|
Motor Type
|
AC Motor
|
|
Capacity(t/h)
|
Max.150-650t/h
|
|
Place of Origin
|
China
|
|
|
Henan
|
|
Brand Name
|
pansheng
|
|
Dimension(L*W*H)
|
1450*1350*1500mm
|
|
Weight
|
2800KG
|
|
Warranty
|
1 Year
|
|
Marketing Type
|
Hot Product 2022
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Gear, Motor, Engine, Gearbox
|
|
Key Selling Points
|
High Productivity
|
|
Discharge particle size:
|
30-70(mm)
|
|
Color:
|
Customizable
|
|
Maximum feeding side length:
|
150mm
|
|
Price:
|
Negotiable
|
|
After sale Service:
|
Life-long Service
|
|
The Machines classification:
|
Stone Crusher Plant
|
|
Spare parts supply:
|
Lifelong Time
|
|
Weight:
|
Depend model on
|
|
Rotation Speed:
|
260 r/min
|
|
Capacity:
|
1-3t/h
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
