The transmission of synchronous belt is a new transmission mode and transmits the dynamic force by the meshing of the belt teeth and pul- ley,It combines respective advantages of gear transmission,chanin t- ransmission and belt transmission.
- Product Details
- {{item.text}}
Quick Details
-
Type:
-
TIMING BELT
-
Material:
-
Rubber
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
BoShuo
-
Product name:
-
Industrial Rubber Timing Belt
-
Application:
-
Transmission Device
-
Color:
-
Black
-
Name:
-
Convey-v Belt
-
Keyword:
-
Transmision Belt
-
Feature:
-
Flexibility
-
Size:
-
Customise
-
Quality:
-
High Level
Quick Details
-
Warranty:
-
3 years
-
Applicable Industries:
-
Manufacturing Plant, Retail, Other, Advertising Company
-
Standard or Nonstandard:
-
Standard
-
Type:
-
TIMING BELT
-
Material:
-
Rubber
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
BoShuo
-
Product name:
-
Industrial Rubber Timing Belt
-
Application:
-
Transmission Device
-
Color:
-
Black
-
Name:
-
Convey-v Belt
-
Keyword:
-
Transmision Belt
-
Feature:
-
Flexibility
-
Size:
-
Customise
-
Quality:
-
High Level
Products Description
PRODUCT INTRODUCTION

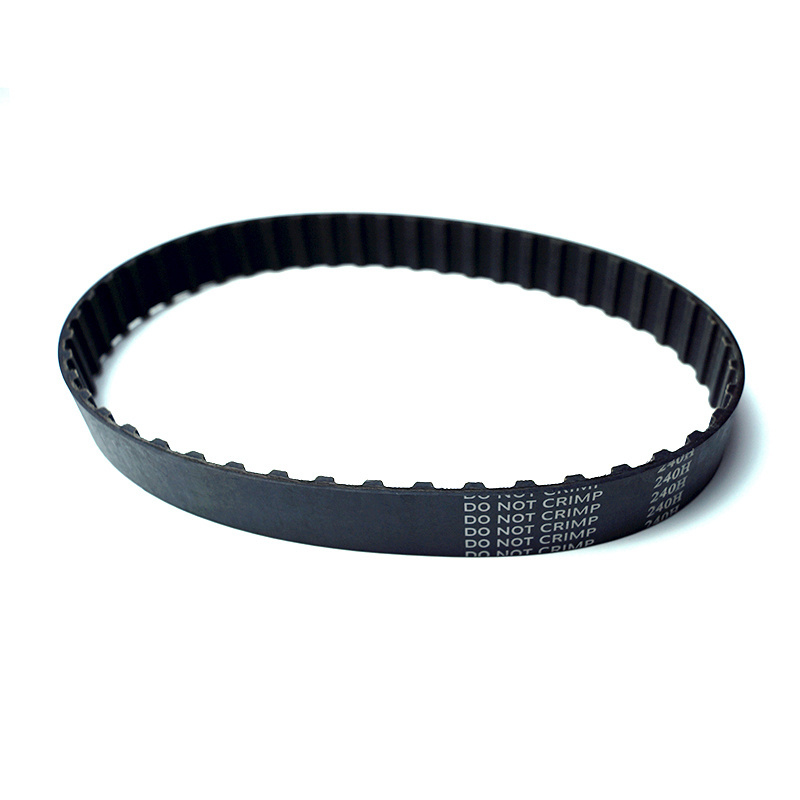

Industrial timing belt
Welcome to Xingtai Boshuo, our industrial belts are based on our knowledge and professional services, with 10 years of experience in the field of mechanical parts, industrial timing belts are one of our main products, we can do pu, rubber. .....and other materials. Our industrial belts can comply with ISO, GB standards. We can produce different types of industrial belts, and we can also accept OEM/ODM according to your requirements.
PRODUCT STRUCTURE
1.Top Rubber
To product the lining tensilemember
2.Tensile Member
To product the tensile member,maintain the shape of the rubber,and prevent the rubber from stretching
3.TeethRubber
To product the tensile member and maintain the shape of the rubber.
4.Teeth Fabric
Excellent frictional resistancewhich prolongs the service life of products.
PRODUCT FEATURES
● Low noise operation;
● No lubrication needed;
● Prevention of skidding;
● Fuel economy in automobiles;
● Ultrahigh mechanical effiency
● No lubrication needed;
● Prevention of skidding;
● Fuel economy in automobiles;
● Ultrahigh mechanical effiency
Product Paramenters
|
Arc tooth industrial rubber timing belt
|
|
|
|
|
|
|
||||||
|
Gear code
|
STPD/STS
|
|
|
|
|
|
||||||
|
Type
|
S2M
|
S3M
|
S4.5M
|
S5M
|
S8M
|
S14M
|
||||||
|
Picth
|
2
|
3
|
4.5
|
5
|
8
|
14
|
||||||
|
Tooth height
|
0.76
|
1.14
|
1.71
|
1.91
|
3.05
|
5.3
|
||||||
|
belt thickness
|
1.36
|
1.9
|
2.81
|
3.4
|
5.3
|
10.2
|
||||||
|
Gear code
|
RPP/HPPD
|
|
|
|
|
|
||||||
|
Type
|
RPP2M
|
RPP3M
|
RPP5M
|
RPP8M
|
RPP14M
|
|
||||||
|
Pitch
|
2
|
3
|
5
|
8
|
14
|
|
||||||
|
Tooth height
|
0.76
|
1.15
|
1.95
|
3.2
|
6.00
|
|
||||||
|
belt thickness
|
1.36
|
1.9
|
3.5
|
5.5
|
10
|
|
||||||
|
Gear code
|
HTD
|
|
|
|
|
|
||||||
|
Type
|
3M
|
5M
|
8M
|
14M
|
20M
|
|
||||||
|
Pitch
|
3
|
5
|
8
|
14
|
20
|
|
||||||
|
Tooth height
|
1.17
|
2.06
|
3.36
|
6.02
|
8.4
|
|
||||||
|
belt thickness
|
2.4
|
3.8
|
6
|
10
|
13.2
|
|
||||||
|
Type industrial rubber timing belt
|
|
|
|
|
|
|
|
|||||||
|
Type
|
MXL
|
XXL
|
XL
|
L
|
H
|
XH
|
XXH
|
|||||||
|
Picth
|
2.032
|
3.175
|
5.080
|
9.525
|
12.70
|
22.225
|
31.750
|
|||||||
|
Tooth height
|
0.51
|
0.76
|
1.27
|
1.91
|
2.29
|
6.35
|
9.53
|
|||||||
|
Belt thinkness
|
1.14
|
1.52
|
3.36
|
6.02
|
8.4
|
11.20
|
15.70
|
|||||||
|
Type
|
T2.5
|
T5
|
T10
|
T20
|
AT5
|
AT10
|
AT20
|
|||||||
|
Picth
|
2.5
|
5
|
10
|
20
|
5
|
10
|
20
|
|||||||
|
Tooth height
|
0.7
|
1.20
|
2.50
|
5.00
|
1.20
|
2.50
|
5.00
|
|||||||
|
Belt thinkness
|
1.30
|
2.20
|
4.50
|
8.00
|
2.70
|
5.00
|
8.00
|
|||||||
If you have special requirements, Please contact us and we will try to satisfy your needs.
