Quick Details
-
Brand Name:
-
KINDING
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainless Steel 304/316L
-
Max. pressure:
-
0.6MPa/1.0MPa
-
Max. temperture:
-
150℃
-
Sealing ring:
-
EPDM/PTFE/FKM/Slicone
-
Polishing precision:
-
0.6um~0.8um
-
Finish type:
-
Mechanical/Electrolytical polishing/Sand blasting
Quick Details
-
Weight (KG):
-
30
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KINDING
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainless Steel 304/316L
-
Max. pressure:
-
0.6MPa/1.0MPa
-
Max. temperture:
-
150℃
-
Sealing ring:
-
EPDM/PTFE/FKM/Slicone
-
Polishing precision:
-
0.6um~0.8um
-
Finish type:
-
Mechanical/Electrolytical polishing/Sand blasting
Products Description

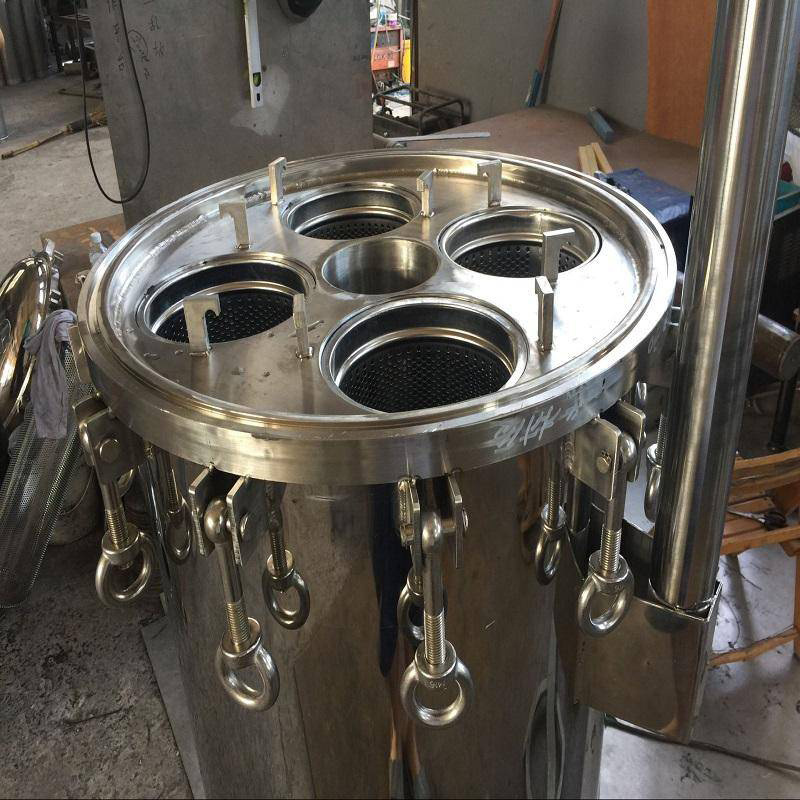

● Multi bags filter for some coarse filtration and pre-filtration process.
● Standard 1#bag or 2#bag, the standard model for 2~12 bags, the maximum production customized to 24 bags.
● Large flow, Long service life.
● Compact design can reduce occupied space and the loss of liquid.
● Side entry and bottom out ensure that liquid medium can be completely discharged, convenient to be operating.
● The unique three-point clamp device ensures good sealing and avoid liquid side leakage.
● The filter housing can add swing arm and the eye bolt or quick open design, operating conveniently and economically.
|
Working temperature
|
-10℃~150℃
|
|
Max. working pressure
|
1.0MPa
|
|
Filtering accuracy
|
0.1-40um
|
|
Filter Bag type
|
1#Bay, 2#Bag
|
|
Inlet/Out Dimension
|
1", 1.5", 2", 2.5", 3", 3.5", 4"
|
|
Shell material
|
Stainless steel 304 / 316L
|
|
Sealing ring material
|
EPDM/PTFE/FKM/Slicone
|
|
Connection of shell
|
Flange connect
|
|
Surface Treatment
|
Mechanical/ Electrolytical polishing/Sand blasting
|
|
Polishing accuracy
|
Inner Ra≤0.6μm
Outside Ra≤0.8μm
Basket Ra≤0.6μm |
|
Bag type
|
2#bag
|
|
2#bag
|
|
2#bag
|
|
|||
|
Filter Bag Qty.
|
2pcs
|
|
4pcs
|
|
6pcs
|
|
|||
|
Total height
|
1880
|
1530
|
2030
|
1600
|
2130
|
1700
|
|||
|
The distance from inlet to center
|
300
|
|
360
|
400
|
440
|
450
|
|||
|
Shell diameter
|
Φ400
|
|
Φ500
|
Φ550
|
Φ650
|
|
|||
|
The height from inlet to ground
|
1330
|
950
|
1425
|
975
|
1480
|
1000
|
|||
|
The height from outlet to ground
|
300
|
|
400
|
350
|
400
|
|
|||
|
Inlet/Outlet size
|
4"
|
|
4"
|
|
5"
|
|
|||
Filter Bag Type
Economical needled felt filter bag (EBF)
High melt blown polypropylene filter bag (HEBF)
Large flow needled felt filter bag (HFBF)
Surface nylon filter bag filter (SBF)
