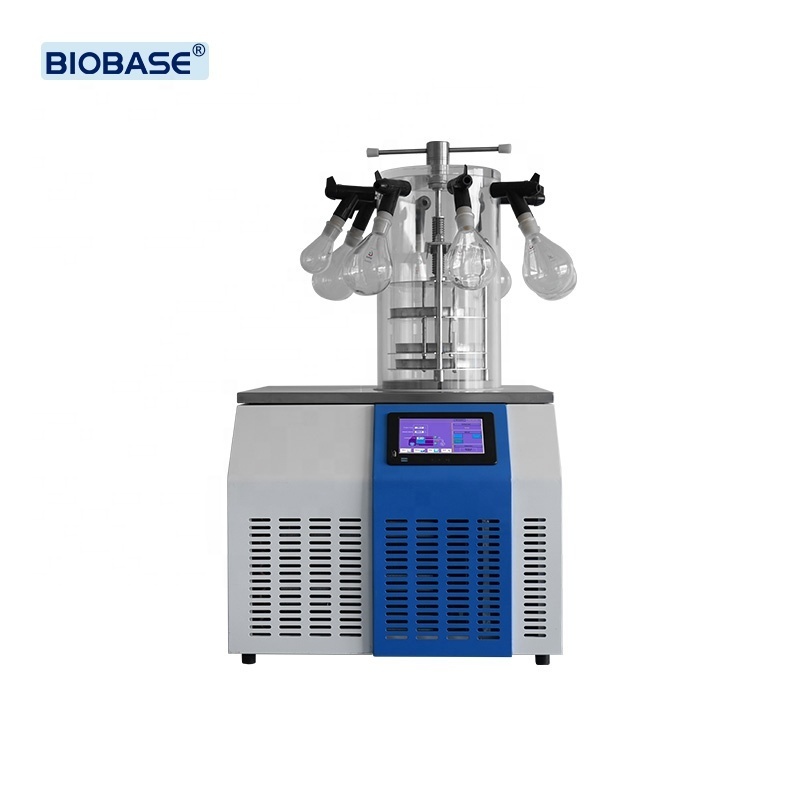

Model
|
|
BK-FD10S
|
BK-FD10P
|
BK-FD10T
|
BK-FD10PT
|
|
Type
|
|
Standard chamber
|
Standard chamber
With 8 port manifold
|
Stoppering chamber
|
Stoppering chamber
with 8 port manifold
|
|
Freeze Drying Area
|
|
0.12m²
|
|
0.08m²
|
|
|
Tray
|
|
4 pcs
|
|
3 pcs
|
|
|
Height Between Trays
|
|
50mm
|
|
|
|
|
Cold Trap Temperature
Cold Trap Capacity
|
|
≤-60℃(No load)(-80℃ optional)
6L
|
|
|
|
|
Cold Trap Size (Diameter*H)
Vacuum Degree
Water Capture Capacity
|
|
φ 2 1 9 * 1 4 0 m m
≤5 Pa
3-4L/24h
|
|
|
|
|
Tray Size (D*H)
|
|
φ200*20mm
|
|
φ180*20mm
|
|
|
Freeze Drying Time
|
|
36h
|
|
|
|
|
Loading Capacity/Shelf (Liquid)
Total Loading Capacity (Liquid)
|
|
1.2L
2.4L
|
|
0.9L
1.6L
|
|
|
Drying Chamber Size (Diameter*H)
|
|
φ 2 6 0 * 4 2 0 mm
|
φ260*465mm
|
|
|
|
Total Qty.Of Vial φ22
Total Qty.Of Vial φ16
Total Qty.Of Vial φ12
|
|
/
/
/
|
/
/
/
|
147
297
492
|
147
297
492
|
|
Refrigerant
Cooling System
Power Supply
Power Consumption
|
|
-60℃:R600a,R23 -80℃:R404a、R23
Standard:Air cooling Optional:Water cooling
Standard:220V 50Hz Optional:220V 60Hz
1300W
|
|
|
|
|
Standard Accessory
|
|
Vacuum pump 2L/S,Material tray*4(Material tray*3 for T/PT),Drying rack*1,Cover*1,Acrylic bucket*1(all models)
Conical-mouth flask100ml*2pcs,200ml*2pcs,250ml*2pcs,500ml*2pcs,Switch valve*8 pcs (only for model BK-FD10P/PT)
|
|
|
|
|
Optional Function &Accessory
|
|
Equipment moving frame,vacuum pump of other specifications,vacuum regulation,oil mist filter, automatic air intake,automatic water
discharge and other customization(for all models)
600ml/1200ml Wide-mouth flask (for BK-FD10P/PT)
|
|
|
|
|
External Size (W*D*H),mm
|
|
640*610*550
|
|
|
|
|
Package Size(W*D*H),
mm
|
Main body
|
735*720*760mm
|
|
|
|
|
|
Accessory
|
720*605*560mm
|
|
|
|
|
Gross Weight(kg)
|
Main body
|
-60℃:80kg
-80℃:98kg
|
|
|
|
|
|
Accessory
|
45kg
|
49kg
|
54kg
|
56kg
|
