Quick Details
-
Power Source:
-
Electric, Manual
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Diamond H
-
Model Number:
-

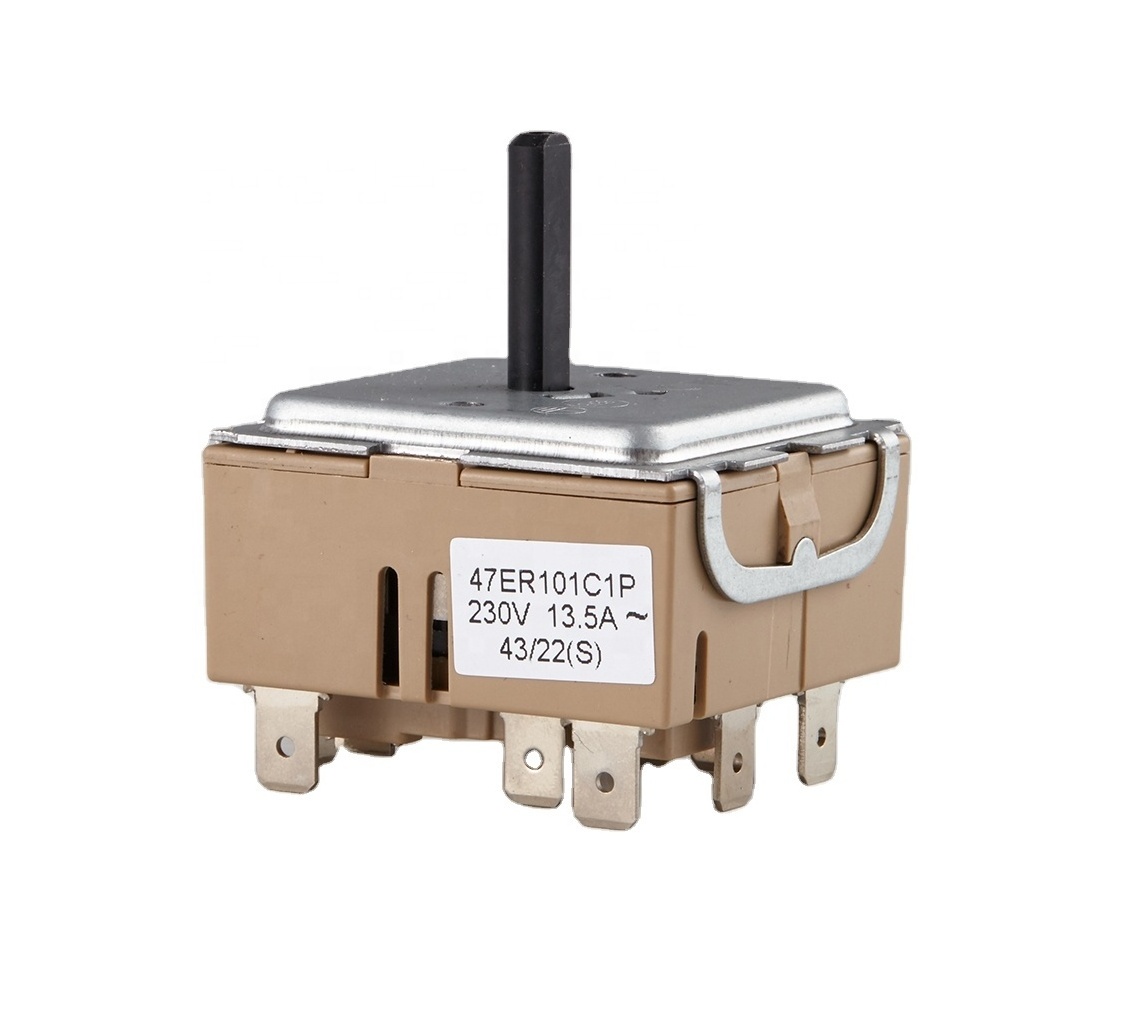

47ER101C1P
-
Max Temperature:
-
T125
-
Current:
-
13.5A
-
Voltage:
-
230V
-
Types:
-
Double Circuit
-
Spindle:
-
Nylon spindle
-
Mounting:
-
Two screw fixing-2XM4 screws at 28mm center
-
Working Range:
-
24~400 V ac / 13.5 A and 24~240 V ac / 16A
-
Automatic Cycles:
-
100 000
-
Manual Cycles:
-
100 00
Quick Details
-
After-sales Service Provided:
-
Return and Replacement
-
Warranty:
-
2 years
-
Application:
-
Commercial, Household
-
Power Source:
-
Electric, Manual
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Diamond H
-
Model Number:
-
47ER101C1P
-
Max Temperature:
-
T125
-
Current:
-
13.5A
-
Voltage:
-
230V
-
Types:
-
Double Circuit
-
Spindle:
-
Nylon spindle
-
Mounting:
-
Two screw fixing-2XM4 screws at 28mm center
-
Working Range:
-
24~400 V ac / 13.5 A and 24~240 V ac / 16A
-
Automatic Cycles:
-
100 000
-
Manual Cycles:
-
100 00
Product Description
ENERGY REGULATORS
The 4*ER Series low profile energy regulators have been designed to meet the demands of modern cooking appliances where controls compartment space is limited. These energy regulators are manufactured to a high performance specification with an ambient temperature rating of 125℃.
Certificate
Certificate Introduction
Certificate Introduction
Certificate Introduction
Packing&Shipping
|
|
Qty/Carton
|
NW(kg)
|
GW(kg)
|
Dimension(m)/Carton
|
|
Single Circuit (EN Certificate)
|
90
|
6.1
|
6.8
|
35*25*21cm
|
|
Dual Circuit (EN Certificate)
|
90
|
6.3
|
7.0
|
35*25*21cm
|
|
Single Circuit (UL Certificate)
|
90
|
6.2
|
7.0
|
35*25*21cm
|
|
Dual Circuit (UL Certificate)
|
90
|
6.3
|
7.1
|
35*25*21cm
|
|
Triple Circuit (UL Certificate)
|
60
|
4
|
4.7
|
35*25*21cm
|
