- Product Details
- {{item.text}}
Quick Details
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
UN38.3/CE/MSDS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEADYO
-
Model Number:
-
LP12V100
-
Output Voltage (V):
-
12.8V
-
Voltage:
-
12.8V
-
Capacity:
-
100Ah
-
Dimension:
-
330*175*210mm(Group 31)
-
Weight:
-
13kg
-
Function Optional:
-
Blutooth & LCD
-
BMS(Battery Management System):
-
Yes
-
OEM/ODM/Customized:
-
Acceptable
-
Certification:
-
Yes
Quick Details
-
Application:
-
soalr traier, solar light towe,mobile light tower
-
Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
-
Battery Type:
-
LITHIUM IRON
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
UN38.3/CE/MSDS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEADYO
-
Model Number:
-
LP12V100
-
Output Voltage (V):
-
12.8V
-
Voltage:
-
12.8V
-
Capacity:
-
100Ah
-
Dimension:
-
330*175*210mm(Group 31)
-
Weight:
-
13kg
-
Function Optional:
-
Blutooth & LCD
-
BMS(Battery Management System):
-
Yes
-
OEM/ODM/Customized:
-
Acceptable
-
Certification:
-
Yes

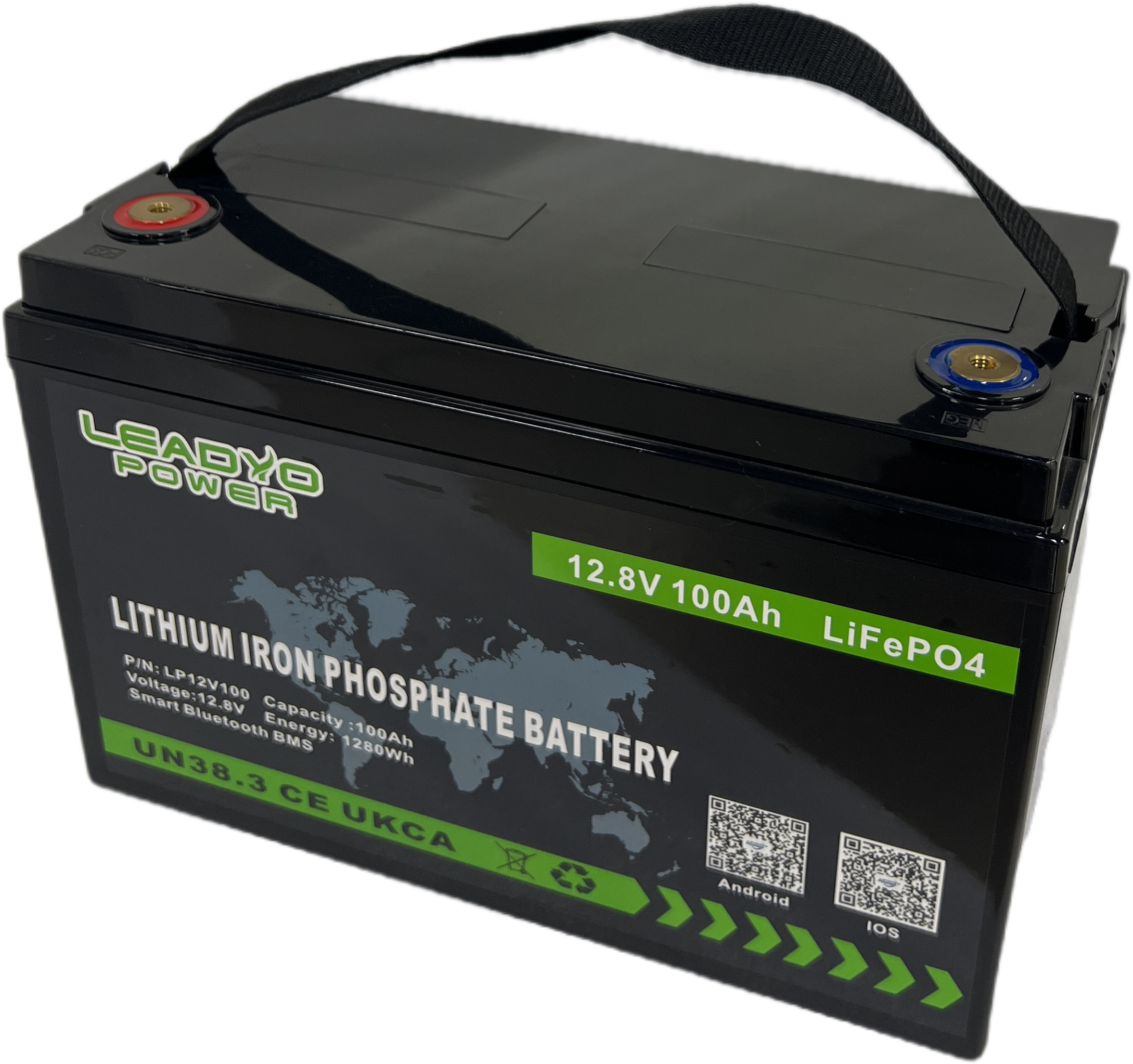

Products Description
Perfect Internal Structure
For each battery,we
not only concern about for production quality ,but also for production assembly structure.The perfect assembly structure can improve the production
performance
and ensure the production more safety!
|
ELECTRICAL SPECIFICATIONS
|
Nominal Voltage
|
12.8V
|
Nominal Capacity
|
100Ah
|
||
|
|
Nominal Energy
|
1280Wh
|
Internal Resistance
|
≤30 @50% SOC
|
||
|
|
Capacity
|
@25A: 300minutes(5hours)
|
Self Discharge
|
5% /per month
|
||
|
|
Maximum In Series
|
4PCS
|
Maximum In Parallel
|
No limit
|
||
|
MECHANICAL SPECIFICATIONS
|
Terminal Type
|
M8
|
Weight
|
16kg
|
||
|
|
Case Size(L*W*H mm)
|
330*175*210mm |
Case Type
|
ABS |
||
|
|
Cell type / Chemistry
|
LiFePO4
|
LCD or Bluetooth Function
|
Optional |
||
|
|
BMS
|
low voltage,high voltage,over temperature
|
|
|
||
|
|
Over current,short-circuit protection .etc
|
|
|
|
||
|
Discharge Current and Voltage Specifications
|
MAX Continuous Discharge Current
|
150A |
|
|
||
|
|
Discharge pulse current
|
500±50A (31±10ms)
|
BMS Low Voltge Cut-off
|
10V
|
||
|
|
Short Circuit Protection
|
200-800 µs Auto recover or charge release
|
|
|
||
|
Charge Current and Voltage Specifications
|
Max Charge Current
|
150A
|
Recommended Charge Current
|
25A -60A
|
||
|
|
End of Charge voltage
|
14.4V±0.2V
|
End of discharge voltage
|
10V
|
||
|
|
Balancing Voltage
|
3.6V±0.05v pc
|
|
|
||
|
Temperature Ranges
|
Discharge Temperature
|
-20～+65℃
|
Charge Temperature
|
-20～+45℃
|
||
|
|
Storage Temperature Range
|
-20～+45℃
|
BMS High Temperature Protection
|
90℃
|
||
|
|
Battery High Temperature Protection
|
60℃
|
|
|
||
|
COMPLIANCE SPECIFICATIONS
|
Certifications
|
CE for Battery Pack,UL1642 & IEC62133 for cells
|
|
|
||
|
|
Shipping classification
|
UN 3480
|
|
|
||
Product Remark :
1.Drop-in replacement for lead acid batteries
2.Maintenance-free, modular, and lightweight
3.Holds a charge for up to 1 year without a load, and no need for a trickle charger - great for unattended storage
4.Can be wired in series up to 48V and unlimited in parallel
5.Built-in Battery Management System (BMS) protects the cells against excessively high or low voltages, high currents, short
circuits, and excessive heat or cold
6.Protections: high/low voltage; short circuit; high/low temperature
7.Designed and assembled in Shenzhen, China
2.Maintenance-free, modular, and lightweight
3.Holds a charge for up to 1 year without a load, and no need for a trickle charger - great for unattended storage
4.Can be wired in series up to 48V and unlimited in parallel
5.Built-in Battery Management System (BMS) protects the cells against excessively high or low voltages, high currents, short
circuits, and excessive heat or cold
6.Protections: high/low voltage; short circuit; high/low temperature
7.Designed and assembled in Shenzhen, China
Product Application :
ESS, mobile power battery ,Recreational Vehicle ,Yachts,Marine, Electric Vehicle(Ebike,Escooer,Golf Carts) , Telecom Energy Storage,Solar Off-Grid,UPS,Medical Equipment, Power Tools, Lighting, Intelligent Robots and other fields...
support customized based on your requirement
.
Product Warranty :
The period of warranty is 24 months from the date of shipment;
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
The period of warranty is 24 months from the date of shipment;
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
Product Bluetooth Function(Two versions for optional) :
SOC, Cycles, Working Current , Working Voltage , Temperature , Remaining Capacity ,Fully Charge,Capacity,Manufacturer Date .etc .
How to download:
When you bought our battery with Bluetooth , Please remember to go to the Google app and apple store to install our bluetooth system to better monitor your battery ,or you can scan the QR code in instruction manual for downloading or the following QR code.
If you'd like to develop your own Bluetooth APP ,please contact us to confirm more details:
Email: sales6@leadyo-battery.com
Whatapp/Tel: +86137 1379 2964
If you'd like to develop your own Bluetooth APP ,please contact us to confirm more details:
Email: sales6@leadyo-battery.com
Whatapp/Tel: +86137 1379 2964
