Quick Details
-
Tolerance:
-
±1%
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
taixin
-
Model Number:
-
200/300/400/Alloy
-
Application:
-
construction,decoration,All Industry, Shipbuilding
-
certificated:
-
ISO,BV,ABS,JIS
-
Material:
-
200/300/400/Alloy
-
Package:
-
Standard Sea-worthy Packing
-
MOQ:
-
100KG
-
Technology:
-
Hot Rlloed
-
Payment:
-
T/T 30%+70%balance
-
Thickness:
-
2.0mm-25mm
-
Delivery Terms:
-
FOB
-
Surface treatment:
-
Customers's Requirements
Quick Details
-
Standard:
-
AiSi, ASTM, bs, DIN, GB, JIS
-
Grade:
-
200/300/400/Alloy
-
Type:
-
Equal
-
Tolerance:
-
±1%
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
taixin
-
Model Number:
-
200/300/400/Alloy
-
Application:
-
construction,decoration,All Industry, Shipbuilding
-
certificated:
-
ISO,BV,ABS,JIS
-
Material:
-
200/300/400/Alloy
-
Package:
-
Standard Sea-worthy Packing
-
MOQ:
-
100KG
-
Technology:
-
Hot Rlloed
-
Payment:
-
T/T 30%+70%balance
-
Thickness:
-
2.0mm-25mm
-
Delivery Terms:
-
FOB
-
Surface treatment:
-
Customers's Requirements
Product Description
|
Standard |
ASTM, BS, GB, JIS |
|
Dimensions |
20*20*3mm-200*200*24mm |
|
Grade |
Q195-Q420 Series |
|
Place of Origin |
Zhejiang, China (Mainland) |
|
Brand Name |
TAIXIN |
|
Model Number |
Q235/Q345/SS400/S235/S275 |
|
Type |
Angle |
|
Application |
Construction |
|
Name |

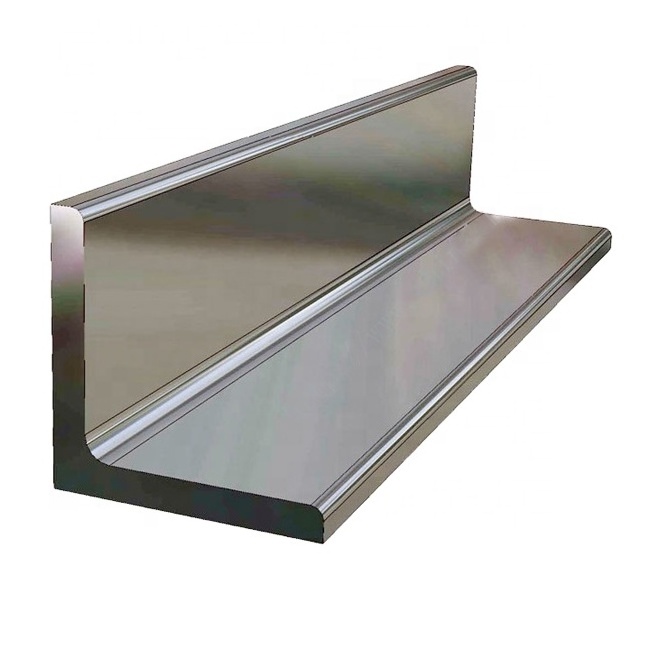

angle iron steel angle bar |
|
Other name |
top grade angle iron steel angle bar |
|
Standard |
AISI, ASTM, BS, DIN, GB, JIS, AISI,A |
|
Dimensions |
(20*20*2mm)-(200*200*25mm) |
|
Grade |
SS400,Q235A,Q235B,Q345,Q345 |
|
Production Technics |
Hot rolled,cold-bend profile angle steel |
|
Tolenrance |
according to the standard |
|
Length |
6m-12m as you require |
|
Surface treatment |
BLACK/hot dip galvanised profile angle steel |
|
Application |
Construction Building |
Chemical Composition
|
Grade |
C |
Cr |
Ni |
Mn |
P |
S |
Mo |
Si |
Cu |
N |
Other |
|
201 |
≤0.15 |
16--18 |
3.5-5.5 |
5.5-7.5 |
≤0.06 |
≤0.03 |
-- |
≤1.00 |
-- |
≤0.25 |
|
|
201L |
≤0.03 |
16--18 |
3.5-5.5 |
5.5-7.5 |
≤0.06 |
≤0.03 |
-- |
≤1.00 |
-- |
≤0.25 |
|
|
202 |
≤0.15 |
17--19 |
4--6 |
7.5-10 |
≤0.06 |
≤0.03 |
-- |
≤1.00 |
-- |
≤0.25 |
|
|
301 |
≤0.15 |
16--18 |
6--8 |
≤2.00 |
≤0.065 |
≤0.03 |
-- |
≤1.00 |
-- |
-- |
|
|
301L |
≤0.03 |
18--20 |
8—10.5 |
≤2.00 |
≤0.045 |
≤0.03 |
-- |
≤1.00 |
-- |
-- |
|
|
302 |
≤0.15 |
17--19 |
8--10 |
≤2.00 |
≤0.035 |
≤0.03 |
-- |
≤1.00 |
-- |
-- |
|
|
303 |
≤0.15 |
17--19 |
8--10 |
≤2.00 |
0.20 |
≤0.03 |
-- |
≤1.00 |
-- |
-- |
|
|
304 |
≤0.07 |
17--19 |
8--10 |
≤2.00 |
≤0.035 |
≤0.03 |
-- |
≤1.00 |
-- |
-- |
|
|
304L |
≤0.03 |
18--20 |
8--10 |
≤2.00 |
≤0.035 |
≤0.03 |
-- |
≤1.00 |
-- |
-- |
|
|
305 |
≤0.12 |
17--19 |
10.5--13 |
≤2.00 |
≤0.035 |
≤0.03 |
-- |
≤1.00 |
-- |
-- |
|
|
309S |
≤0.08 |
22--24 |
12--15 |
≤2.00 |
≤0.035 |
≤0.03 |
-- |
≤1.00 |
-- |
-- |
|
|
310S |
≤0.08 |
24--26 |
19--22 |
≤2.00 |
≤0.035 |
≤0.03 |
-- |
≤1.00 |
-- |
-- |
|
|
316 |
≤0.08 |
16--18.5 |
10--14 |
≤2.00 |
≤0.035 |
2--3 |
2--3 |
≤1.00 |
-- |
-- |
|
|
316L |
≤0.03 |
16--18 |
12--15 |
≤2.00 |
≤0.035 |
≤0.03 |
2--3 |
≤1.00 |
-- |
-- |
|
|
316N |
≤0.08 |
16--18 |
10--14 |
≤2.00 |
≤0.035 |
≤0.03 |
2--3 |
≤1.00 |
-- |
0.1-0.22 |
|
|
317 |
≤0.12 |
18--20 |
11--15 |
≤2.00 |
≤0.035 |
≤0.03 |
3--4 |
≤1.00 |
-- |
-- |
|
|
317L |
≤0.08 |
18--20 |
11--15 |
≤2.00 |
≤0.035 |
≤0.03 |
3--4 |
≤1.00 |
-- |
-- |
|
|
321 |
≤0.12 |
17--19 |
8--11 |
≤2.00 |
≤0.035 |
≤0.03 |
-- |
≤1.00 |
-- |
-- |
Ti5(%-0.02)~0.08 |
|
410 |
≤0.15 |
11.5--13.5 |
≤0.6 |
≤1.00 |
≤0.035 |
≤0.03 |
-- |
≤1.00 |
-- |
-- |
|
|
430 |
≤0.12 |
16--18 |
≤0.6 |
≤1.25 |
≤0.035 |
≤0.30 |
-- |
≤0.75 |
-- |
-- |
|
|
430A |
≤0.06 |
14--17 |
≤0.25 |
≤0.50 |
≤0.030 |
≤0.50 |
-- |
≤0.50 |
-- |
-- |
|
|
430F |
≤0.12 |
16--18 |
-- |
≤1.00 |
≤0.035 |
≤0.15 |
-- |
≤1.00 |
-- |
-- |
|
Products Show
Products Test
Application
Construction field and ships building industry
Petroleum, chemical, war and electricity industries
Food processing and medical industry
Boiler heat exchanger, machinery and hardware fields
