Quick Details
-
Model Number:
-
WS11-FDSW0-W150-R300-C3
-
Max. Current:
-
5A
-
Operating Temperature:
-
-40℃ ~ 85℃
-
Protection Level:
-
IP67
-
Product name:
-
Mini Snap Action Microswitch
-
Product type:
-
WS11-FDSW0-W150-R300-C3
-
Contact Resistant:
-
50mΩ MAX
-
Insulation Resistance:
-
100MΩ MIN
-
Weight:
-
13g
-
Color:
-
black
-
Material:
-
plastic
-
Configuration:
-
SPST
-
Terminal form:
-
wire type
-
Mounting:
-
via side mounting holes
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SWITECH
-
Model Number:
-
WS11-FDSW0-W150-R300-C3
-
Max. Current:
-
5A
-
Operating Temperature:
-
-40℃ ~ 85℃
-
Protection Level:
-
IP67
-
Product name:
-
Mini Snap Action Microswitch
-
Product type:
-
WS11-FDSW0-W150-R300-C3
-
Contact Resistant:
-
50mΩ MAX
-
Insulation Resistance:
-
100MΩ MIN
-
Weight:
-
13g
-
Color:
-
black
-
Material:
-
plastic
-
Configuration:
-
SPST
-
Terminal form:
-
wire type
-
Mounting:
-
via side mounting holes
-
Certification:
-
CE
Products Description
|
Specification & Drawing
|
|
|
|
|||
|
Name
|

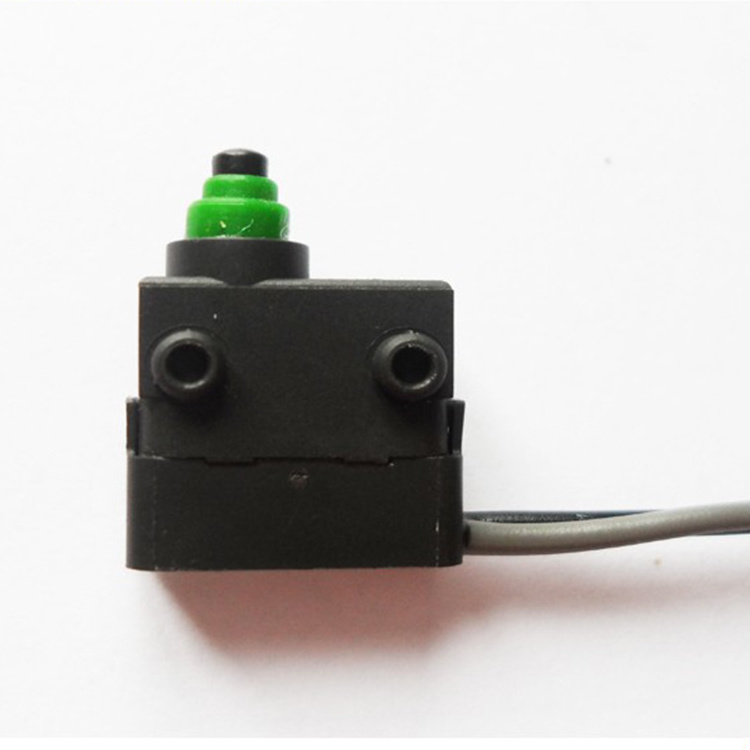

WS11-FDSW0-W150-R300-C3 Mini Snap Action Switch replace Burgess /Omron/ Cherry SPST
|
|
|
|||
|
Model
|
WS11-FDSW0-W150-R300-C3
|
|
|
|||
|
Rating
|
5A 250VAC
|
|
|
|||
|
Contact resistance
|
50mΩ MAX
|
|
|
|||
|
Insulation resistance
|
100MΩ MIN
|
|
|
|||
|
Operation force
|
1.8 Max N
|
|
|
|||
|
Operation life
|
100,000 cycles
|
|
|
|||
|
Terminal form
|
wire type
|
|
|
|||
|
Solder ability
|
235±5℃ for 3±0.5s
|
|
|
|||
|
Operation temperature
|
-40℃~85℃
|
|
|
|||
|
Storage temperature
|
-50℃ ～95℃
|
|
|
|||
|
Material & Color
|
|
|
|
NC Terminal
|
Cu Alloy
|
|
|
Case
|
PA
|
|
|
NO Terminal
|
Cu Alloy
|
|
|
Lever
|
Stainless Steel
|
|
|
Cover
|
PA
|
|
|
Plunger
|
POM
|
|
|
Moving Piece
|
Cu Alloy
|
|
|
Spring
|
SWC
|
|
|
Contact
|
Ag Alloy
|
|
|
Seal ring
|
Silicone Rubber
|
|
|
Arm
|
Stainless Steel
|
|
