Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BCAMCNC
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
2000*3000*200mm
-
Power (kW):
-
9
-
Weight (KG):
-
2600
-
Table structure:
-
T-slot+Vacuum table
-
Control system:
-
Syntec Control System
-
Spindle power:
-
Italy 9.6kw (optional 12.0kw)
-
Spindle speed:
-
6000-24000rpm/min
-
Driving system:
-
Japan servo motor and drivers
-
Tool magazine:
-
8 tools with Linear tool magazine
-
Application:
-
Wood-working industry, Decoration industry, Advertisement
-
Working speed:
-
50m/min
-
After-sales Service Provided:
-
Online support
-
Marketing Type:
-
Hot Product 2019
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BCAMCNC
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
2000*3000*200mm
-
Power (kW):
-
9
-
Weight (KG):
-
2600
-
Table structure:
-
T-slot+Vacuum table
-
Control system:
-
Syntec Control System
-
Spindle power:
-
Italy 9.6kw (optional 12.0kw)
-
Spindle speed:
-
6000-24000rpm/min
-
Driving system:
-
Japan servo motor and drivers
-
Tool magazine:
-
8 tools with Linear tool magazine
-
Application:
-
Wood-working industry, Decoration industry, Advertisement
-
Working speed:
-
50m/min
-
After-sales Service Provided:
-
Online support
-
Marketing Type:
-
Hot Product 2019
Product Description
Advantages:

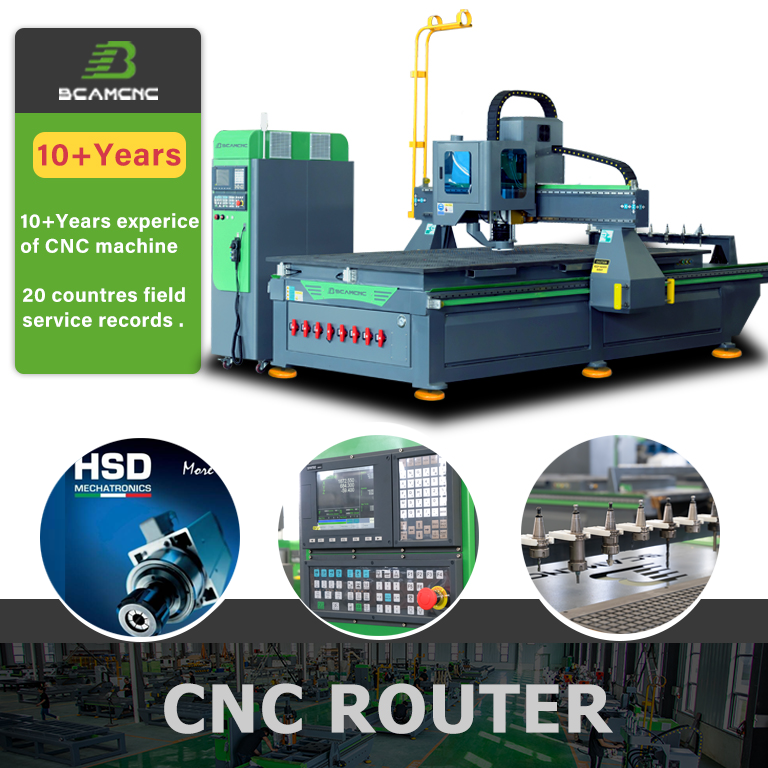

This is an automatic tool changer engraving machine with atc spindles. It has the advantages of fast tool change speed, high production efficiency, and good processing quality . It is suitable for users with large production volume and high processing accuracy requirements.
This is an automatic tool changer engraving machine with atc spindles. It has the advantages of fast tool change speed, high production efficiency, and good processing quality . It is suitable for users with large production volume and high processing accuracy requirements.
Features :
1. Adopting
9.6kw Italy air cooled spindle
and imported bearings, which effectively prolongs the service life of the machine.
2.
Linear tool changer
magazine saves more time and makes workpiece processing more efficient;
3.
8mm Heavy-duty frame
,which makes the machine operate more stably;
4. Adopting
850w Japan Yaswaka servo motor
, it has the features of sufficient power, fast speed, which ensure the better performance of the machine;
5. Vacuum worktable is divided into 4/6 zones, with strong absorption ability.
|
Specification
|
Parameter
|
|
Machine Model
|
BCM1530C
|
|
Working Area
|
1500*3000*200mm|5*10FT
|
|
Spindle Power
|
9.6kw Italy air cooling spindle
|
|
Drilling
|
5+4 vertical drilling(Optional:9 vertical +3 horizontal+1 saw drilling bank )
|
|
X,Y,Z Traveling Positioning Accuracy
|
±0.02/2000mm
|
|
Table Surface
|
Vacuum table+T-solt table
|
|
X,Y,Z Rail and Transmission
|
X Y axis Helical rack and pinion transmission,
|
|
Z Transmission
|
Z axis TaiwanTBI Ball Screw
|
|
Spindle Speed
|
6000-24000RPM
|
|
Drive Motors
|
Japanese Yaskawa servo motor and drivers
|
|
Operating System
|
Taiwan Syntec control system
|
|
Command Language
|
G Code
|
|
Interface
|
USB
|
|
Voltage
|
380V/50HZ/3Phase
|
|
Dimension(L*W*H)
|
3930*2300*2100mm
|
|
Software Compatibility
|
Option:BCAMPro/VCarve/VCarve Pro/ArtCAM/UCANCAM,etc.
|
Machine Display
Taiwan Syntec control system
Human - machine touch screen is easy to operate
. Can support *.g;*.nc*.ug;*.demo;*.iso; *.eng;*.cut; *.dxf;*.plt; *.txt etc.it has
break-point continuous carving,power failure recovery,processing time prediction
,etc.
Japan Yaskawa servo motor and drivers
With high-performance Japan YASKAWA servo motor, the machine can work in
high precision
. servo motor runs smoothly, no vibration phenomenon even in the low speed. it has a
strong ability of overload.
Active safety system
When people enter machine working area and impacted by the gantry, the machine would stop immediately to keep safe.
Provide external emergency stop function for equipment users.
meets European safety CE standards, and is very popular among users.
Galvanized
Z axis board and T-slot use galvanized: aluminum alloy, more
durable, beautiful, and strong.
Linear tools changer
Configured with Linear tool magazine of 8 tools the machine can change tools speedy and freely. Changing tools in 5 seconds.
Italt 9.6kw air cooling spindle
Italy automatic tool changer spindle makes machine with
high precision, long service time and stable movement
. one best brand and has many after service department all over the world.
Application
Application industry:
furniture, furniture decoration, woodworking decoration, musical instrument, wooden handicraft fields, woodworking, advertising, craft and gift, art mold, mold industries, etc.
Application material:
wood, plywood, solid wood, acrylic, doublecolor board, PVC, EVA,ABS board, plastic, rubber, aluminum sheet, aluminium composite panels etc.
