Quick Details
-
Jacket:
-
PE
-
Place of Origin:
-
Guangxi, China
-
Model Number:
-
YJV
-
Name:
-

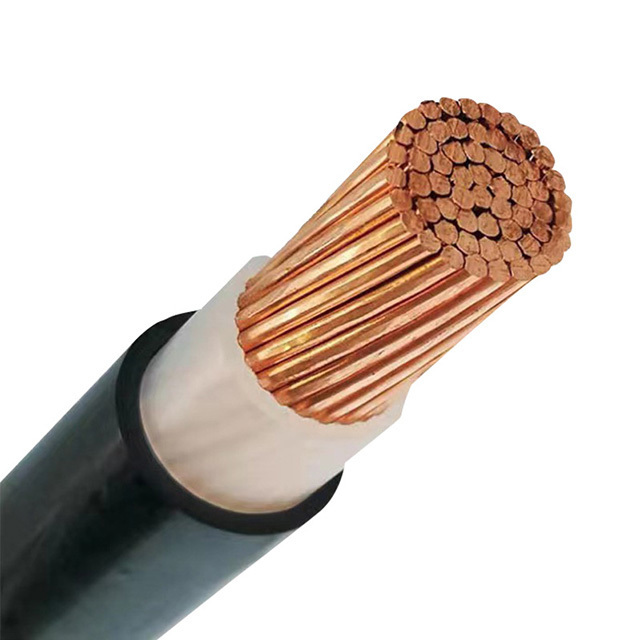

single copper core XLPE power cable
-
Conductor:
-
copper
-
Color:
-
black
-
Package:
-
wood drum
-
Core:
-
1 Core, 2 Core, 3 Core, 4 Core, 5 Core
-
Delivery time:
-
within15 days
-
Usage:
-
power transmission
-
Standard:
-
IECA, BS, DIN
-
Certification:
-
ISO9001/CCC/CE
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Underground
-
Conductor Material:
-
Copper
-
Jacket:
-
PE
-
Place of Origin:
-
Guangxi, China
-
Model Number:
-
YJV
-
Name:
-
single copper core XLPE power cable
-
Conductor:
-
copper
-
Color:
-
black
-
Package:
-
wood drum
-
Core:
-
1 Core, 2 Core, 3 Core, 4 Core, 5 Core
-
Delivery time:
-
within15 days
-
Usage:
-
power transmission
-
Standard:
-
IECA, BS, DIN
-
Certification:
-
ISO9001/CCC/CE
1.executive standard
GB/T 12706.1-2020
2.use
The product is suitable for power supply, transmission and distribution lines with rated AC voltage U0/U 26/35kV and below.
3.character
A) during normal operation of cable, the maximum conductor temperature shall be 70℃ for PVC insulation and 90℃ for XLPE insulation.
B) Maximum temperature of conductor during short circuit (maximum duration not exceeding 5 seconds) :
PVC insulation -- 160℃ for conductor cross section ≤300mm2, 140℃ for conductor cross section > 300mm2; Crosslinked PVC insulation at 250℃.
C) When laying cables, the ambient temperature shall not be less than 0℃, and the minimum allowable bending radius is as follows:
Single core cable: unarmored 20D, armored 15D
Multi-core cable: 15D for unarmored, 12D for armored
Where: D- actual outer diameter of cable.
D) Cable breaking force:
Aluminum core cable: 40×S (N)
Copper core cable: 70×S (N)
Note: S is the total cross-sectional area of the conductor
4.model and application
|
Model
|
|
Name
|
Usage
|
|
|
Copper core
|
aluminium core
|
|
|
|
|
VV
|
VLV
|
PVC insulated and sheathed power cable
|
Can be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force
|
|
|
VY
|
VLY
|
PVC insulated PE sheathed power cable
|
Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force
|
|
|
VV22
|
VLV22
|
PVC insulated steel tape armored PVC sheathed power cable
|
Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
|
|
|
VV23
|
VLV23
|
PVC insulated steel tape armored PE sheathed power cable
|
Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
|
|
|
VV32
|
VLV32
|
PVC insulated fine steel wire armored PVC sheathed power cable
|
Can be laid at indoor, underground and mining well. Cable can undertake mechanism outside force
|
|
|
VV33
|
VLV33
|
PVC insulated fine steel wire armored PE sheathed power cable
|
Can be laid at indoor, underground .Cable can under take mechanism outside force
|
|
|
YJV
|
YJLV
|
XLPE insulated PVC sheathed power cable
|
Can be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force
|
|
|
YJY
|
YJLY
|
XLPE insulated PE sheathed power cable
|
Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force
|
|
|
YJV22
|
YJLV22
|
XLPE insulated steel tape armored PVC sheathed power cable
|
Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
|
|
|
YJV23
|
YJLV23
|
XLPE insulated steel tape armored PE sheathed power cable
|
Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
|
|
|
YJV32
|
YJLV32
|
XLPE insulated fine steel wire armored PVC sheathed power cable
|
Can be laid at indoor, underground and mining well. Cable can undertake mechanism outside force
|
|
|
YJV33
|
YJLV33
|
XLPE insulated fine steel wire armored PE sheathed power cable
|
Can be laid at indoor, underground .Cable can under take mechanism outside force
|
|
