- Product Details
- {{item.text}}
Quick Details
-
Size:
-
customised
-
Place of Origin:
-
Shandong, China
-
Name:
-
Low bed / lowboy trailer
-
Function:
-
Transport Heavy Equipments
-
axle brand:
-
BPW,FUWA,YORK,etc.
-
Condition:
-
New
-
Brake System:
-
Dual Line Braking System
-
Suspension system:
-
mechanical/air suspension
-
color:
-
customised
-
Accessory:
-
Spare tyre carrier, Tool box
-
King pin:
-
2"or 3.5"
-
Keywords:
-
Low Bed Trailer Dimensions
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
100 Tons
-
Brand Name:
-
Aotong
-
Size:
-
customised
-
Place of Origin:
-
Shandong, China
-
Name:
-
Low bed / lowboy trailer
-
Function:
-
Transport Heavy Equipments
-
axle brand:
-
BPW,FUWA,YORK,etc.
-
Condition:
-
New
-
Brake System:
-
Dual Line Braking System
-
Suspension system:
-
mechanical/air suspension
-
color:
-
customised
-
Accessory:
-
Spare tyre carrier, Tool box
-
King pin:
-
2"or 3.5"
-
Keywords:
-
Low Bed Trailer Dimensions

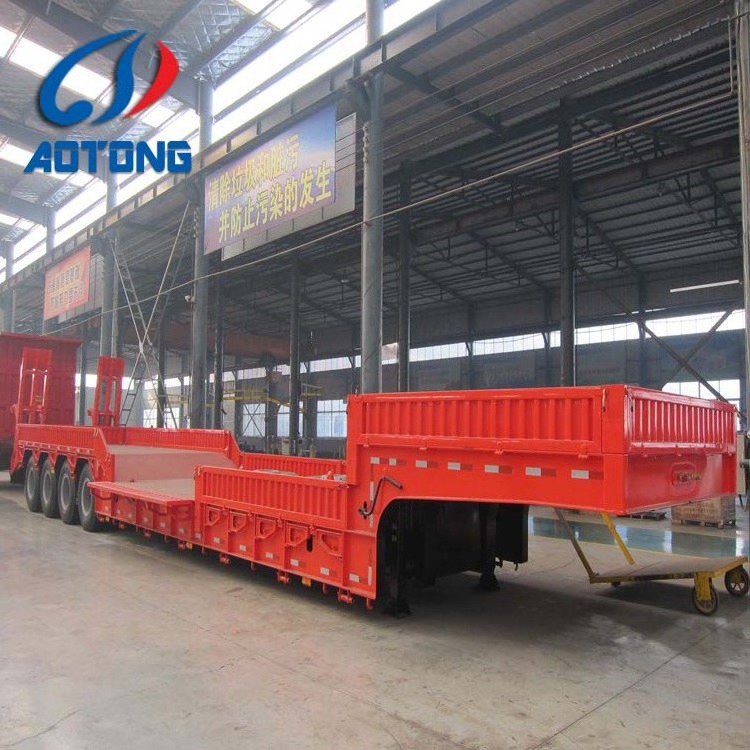

China manufacturer 2 axle 3 axles 4 axles multi-axle 30tons 40ton 50ton 60tons 80tons 100 tons excavator transportation extendable hydraulic low loader drop deck semi trailer, lowbed lowboy trailer, low bed truck trailer for sale
Low bed low loader lowboy truck trailer specification for reference
|
Model |
Outside Dimension |
No. of Axle |
Tire size |
Tare Weight |
Rated Load |
|
|
(L×W×H)(mm) |
(kg) |
(kg) |
||||
|
LAT932 5 TDP |
13000,12500X3000,2800X3150,1710 |
3 |
11.00R20 /12R22.5 |
85 00 |
6 0000 |
|
|
Brand Name |
Aotong Brand |
|||||
|
Manufacture |
Liangshan Juyuan special vehicle manufacturing Co.,Ltd |
|||||
|
Main Frame |
Q3 4 5B manganese plates,automatic submerged arc welded |
|||||
|
Floor |
Steel Sheet 3mm thickness or diamond plate |
|||||
|
(Also can choose other thickness,such as 2mm,2.3mm,4mm,5mm,6mm) |
||||||
|
Axle |
Brand: FUWA(BPW optional) |
|||||
|
Suspension |
Independent stamping steel rigid suspension( air suspension) |
|||||
|
King Pin |
2"or 3.5"traction pin made in China( Jost optional) |
|||||
|
Landing Gear |
chinese brand loading 28000kg (JOST optional) |
|||||
|
Spare Wheel Carrier |
One set of spare wheel carrier including a riser. |
|||||
|
Braking System |
Kemi or other Brand of China; ABS (optional ) |
|||||
|
Brake Air Chamber |
Four double and two single chamber |
|||||
|
Electrical System |
1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness) |
|||||
|
Painting |
Sand blasting processing clean rust |
|||||
|
1 coat of anticorrosive primer |
||||||
|
2 coats of finish urethane paint |
||||||
|
Color as customer choice |
||||||
|
Accessory |
One tooling box with a set of standard trailer tool |
|||||
|
Usage |
Is applicable for the transportations of the mechanical equipment, |
|||||
|
large objects, highway construction equipment, large tanks, |
||||||
|
power plant equipment or machine, and all sorts of steel products. |
||||||
|
Other Descriptions |
The cargo platform is lower than others, |
|||||
|
is applicable for unsound road condition, |
||||||
|
ensuring the stablenessof the transportation. |
||||||
|
Other Specifications |
It's concave structured with tyre appeared style, |
|||||
|
the height of the cargo's carrying platform from ground is 900mm, |
||||||
|
(ladders belong to optional components), with the overall height of 1710 mm |
||||||
|
Remark |
We can design model according to client's requirement |
|||||
1. Over 14 years manufacturing experiences provide qualified truck trailers & competitive price.
2. Rest assured after-sale service.
3.
Experienced
Design &
QC
team, strict quality control.
4. CCC, ISO9001, SGS, BV, WMI and other certificates.
Please kindly send your inquiry and contact me directly via email, mobile, whatsapp... We will give you a quick response within 12 hours. Welcome to visit our factory.
