Quick Details
-
Dimension(L*W*H):
-
6300*2000*2500 mm
-
Weight:
-
8000 KG
-
Drilling Diameter:
-
125- 250 mm
-
Mobility:
-
yes
-
Product name:
-
220RC Reverse Circulation Drilling Rig for mining investigation 200m
-
Application:
-
mining, construction,coal,rock mining
-
Function:
-
Deep Core Drilling Rig
-
Drilling Hole Diameter:
-
125-250 mm
-
Diesel engine:
-
Cummins TIER II engine
-
Drilling depth:
-
150-200 m
-
Drill rod length:
-
3M
-
Engine power:
-
132 KW
-
Feature:
-
High Drilling Efficiency
-
Dust collector:
-
YES
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
newton
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
6300*2000*2500 mm
-
Weight:
-
8000 KG
-
Drilling Diameter:
-
125- 250 mm
-
Mobility:
-
yes
-
Product name:
-
220RC Reverse Circulation Drilling Rig for mining investigation 200m
-
Application:
-
mining, construction,coal,rock mining
-
Function:
-
Deep Core Drilling Rig
-
Drilling Hole Diameter:
-
125-250 mm
-
Diesel engine:
-
Cummins TIER II engine
-
Drilling depth:
-
150-200 m
-
Drill rod length:
-
3M
-
Engine power:
-
132 KW
-
Feature:
-
High Drilling Efficiency
-
Dust collector:
-
YES
Product Overview
200RC 150RC Reverse Circulation Drill Machine RC
diamond core sample drilling rig

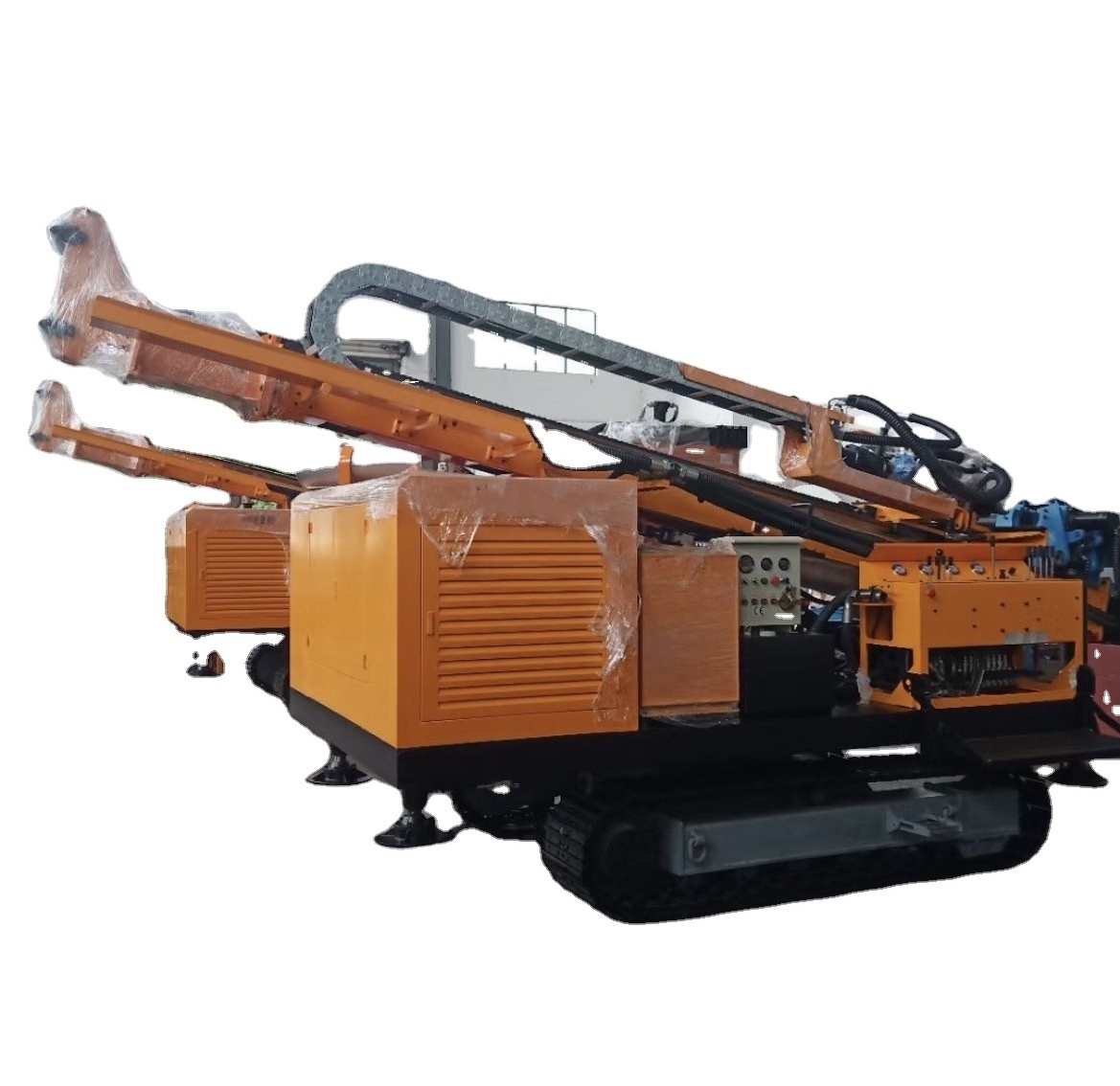

This 220RC drilling rig is
full hydraulic top drive crawler drilling rig ,be used for mining investigation, geological investigation, borehole for water well and observation well, borehole drilling for GSHP system and so on.
PRODUCT SPECIFICATIONS
Features:
All parts of the drilling rig are installed together on the turning platform with crawler chassis. It moves
convenient and has good maneuverability.
Rig with power head has long feed stroke so that it can shorten the time of installing or unloading drill rods
and improve the drilling efficiency.
Rig with full hydraulic transmission and control operates easily and flexibly. It can show smooth operation
and reliable work.
Rig with dual-channel power head has strong torque as well as pulling force. It has strong ability to deal
with accidents.
Patent design of telescoping system(National Patent: ZL03222451.6)in output shaft will effectively project2
drill tools.
Machine installed a hydraulic clamping&breakout system in order to automatic wrench the drill pipe and
tools. Both assistant time and lobar intensity are reduced during the drill work.
Drill head with dual motor drive has a variable speed and wide speed range. It is suitable for the
application of pneumatic DTH hammer drilling and alloy drilling
All parts of the drilling rig are installed together on the turning platform with crawler chassis. It moves
convenient and has good maneuverability.
Rig with power head has long feed stroke so that it can shorten the time of installing or unloading drill rods
and improve the drilling efficiency.
Rig with full hydraulic transmission and control operates easily and flexibly. It can show smooth operation
and reliable work.
Rig with dual-channel power head has strong torque as well as pulling force. It has strong ability to deal
with accidents.
Patent design of telescoping system(National Patent: ZL03222451.6)in output shaft will effectively project2
drill tools.
Machine installed a hydraulic clamping&breakout system in order to automatic wrench the drill pipe and
tools. Both assistant time and lobar intensity are reduced during the drill work.
Drill head with dual motor drive has a variable speed and wide speed range. It is suitable for the
application of pneumatic DTH hammer drilling and alloy drilling
