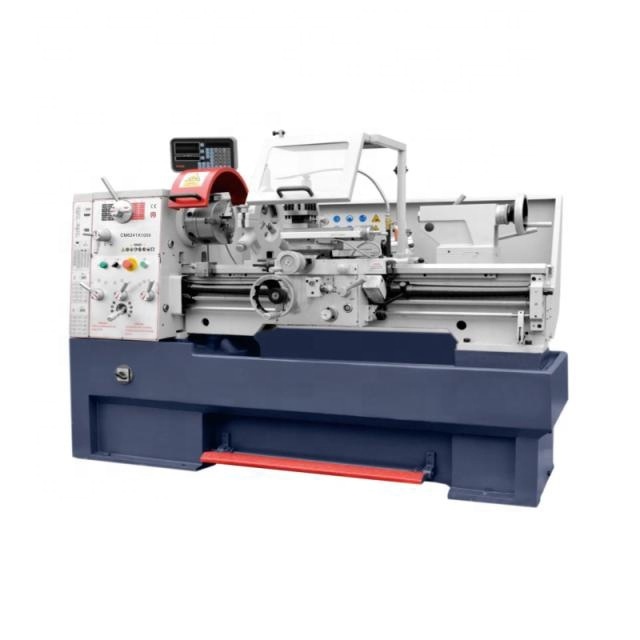

* This series lathe machine is suitable for internal and external turning , tapering , and other rotating faces, metric , module
and inch threads , as well as drilling and pull oil slot .
* Width of bed is wider than normal lathe machine , with high hardness on guideway , the guideway is through high-frequency quenching , wear-resisting .
* This machine is easy to operate , with rapid device for carriage , design with single hand wheel to operate .
* The strength and rigidity of machine is higher than normal lathe machine , high efficiency , suit for heavy duty machine
- Product Details
- {{item.text}}
Quick Details
-
Range of Spindle Speed(r.p.m):
-
40 - 1400 r.p.m
-
Width of bed (mm):
-
360
-
Max. Turned Length (mm):
-
1500 mm
-
Spindle Motor Power(kW):
-
4
-
Year:
-
2021
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ALMACO
-
Model Number:
-
C6240C
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2970 x 1150 x 1590mm
-
Weight (KG):
-
1650 KG
-
Name:
-
Gap Bed Lathe Machine
-
Color:
-
Customized Option
-
Keyword:
-
METAL PROCESSING HORIZONTAL LATHE MACHINE
-
Spindle hole:
-
52mm
-
Spindle nose:
-
C6
-
Spindle taper:
-
MT6
-
Spindle speeds (Number):
-
40-1400rpm (9 Steps) 1600rpm
-
Metric threads range (Kinds):
-
0.25-14mm (19 Kinds)
-
Inch threads range (Kinds):
-
2-40/inch
-
Moudle threads range (Kinds):
-
0.5-3.5mm (11 Kinds)
Quick Details
-
Max. Length of Workpiece (mm):
-
1500
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
52
-
Range of Spindle Speed(r.p.m):
-
40 - 1400 r.p.m
-
Width of bed (mm):
-
360
-
Max. Turned Length (mm):
-
1500 mm
-
Spindle Motor Power(kW):
-
4
-
Year:
-
2021
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ALMACO
-
Model Number:
-
C6240C
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2970 x 1150 x 1590mm
-
Weight (KG):
-
1650 KG
-
Name:
-
Gap Bed Lathe Machine
-
Color:
-
Customized Option
-
Keyword:
-
METAL PROCESSING HORIZONTAL LATHE MACHINE
-
Spindle hole:
-
52mm
-
Spindle nose:
-
C6
-
Spindle taper:
-
MT6
-
Spindle speeds (Number):
-
40-1400rpm (9 Steps) 1600rpm
-
Metric threads range (Kinds):
-
0.25-14mm (19 Kinds)
-
Inch threads range (Kinds):
-
2-40/inch
-
Moudle threads range (Kinds):
-
0.5-3.5mm (11 Kinds)
Products Description
Brief Introduction
Characteristic
Hardened and ground bedways
12speeds all geared headstock
Foot brake giving rapid braking
Emergency stop button equipped on the front of headstock
Jog button for easy gear engagement and inching spindle
Extra safety switch shuts down machine automatically when changing belt or gear
12speeds all geared headstock
Foot brake giving rapid braking
Emergency stop button equipped on the front of headstock
Jog button for easy gear engagement and inching spindle
Extra safety switch shuts down machine automatically when changing belt or gear
Adavantages
1) Chrome Molybdenum headstock gears are hardened and ground
2) Universal gearbox allows inch, metric, diametral, and module pitch threads without changing gears
3) High quality ANSI Class 50 waer-resistant bed ways are hardened and ground
4) Removable Gap allows up to larger diameter workpiece
5) Attractive chrome-plated control levers, dials and knobs complete this impressive package
6) D1-6 spindle is precisely ground for accuracy and supported by high quality spindle bearings
7) Large easy to use foot brake
2) Universal gearbox allows inch, metric, diametral, and module pitch threads without changing gears
3) High quality ANSI Class 50 waer-resistant bed ways are hardened and ground
4) Removable Gap allows up to larger diameter workpiece
5) Attractive chrome-plated control levers, dials and knobs complete this impressive package
6) D1-6 spindle is precisely ground for accuracy and supported by high quality spindle bearings
7) Large easy to use foot brake
|
Standard accessories
|
Optional Accessories
|
|
Steay rest
Follower rest
4-jaw chuck
Face plate
|
3-jaw chuck
Center & center sleeve
Wrenches
Oil gun |
Specification
|
Model
Item |
|
32533
|
32534
|
32535
|
||||
|
|
|
C6½36C
|
C6½40C
|
C6½50C
|
||||
|
CAPACITY |
Max. swing over bed
|
360
|
400
|
500
|
||||
|
|
Max. swing over cross slide
|
190
|
230
|
330
|
||||
|
|
Max. swing over gap
|
520
|
560
|
660
|
||||
|
|
Center distance
|
750, 1000, 1500mm
|
|
|
||||
|
|
Bed width
|
360mm
|
|
|
||||
|
SPINDLE |
Spindle hole
|
52mm
|
|
|
||||
|
|
Spindle nose
|
C6
|
|
|
||||
|
|
Spindle taper
|
MT6
|
|
|
||||
|
|
Spindle speeds (Number)
|
40-1400rpm (9 Steps) 1600rpm
|
|
|
||||
|
FEEDS |
Metric threads range (Kinds)
|
0.25-14mm (19 Kinds)
|
|
|
||||
|
|
Inch threads range (Kinds)
|
2-40/inch
|
|
|
||||
|
|
Moudle threads range (Kinds)
|
0.5-3.5mm (11 KInds)
|
|
|
||||
|
CARRIAGE
|
Cross slide travel
|
180mm
|
|
222mm
|
||||
|
|
Compound rest travel
|
95mm
|
|
|
||||
|
|
Cross-section size of toolshank
|
20 x 20mm²
|
|
|
||||
|
TAILSTOCK |
Taper of tailstock sleeve
|
MT4
|
|
|
||||
|
|
Dia. of tailstock sleeve
|
65mm
|
|
|
||||
|
|
Travel of tailstock sleeve
|
140mm
|
|
|
||||
|
Main motor power
|
|
4kw
|
|
5.5kw
|
||||
|
Packing size (L x W x H)
|
|
|
|
|
||||
|
Center distance : 750mm
|
|
2220 x 1150 x 1590mm
|
|
|
||||
|
1000mm
|
|
2470 x 1150 x 1590mm
|
|
|
||||
|
1500mm
|
|
2970 x 1150 x 1590mm
|
|
|
||||
|
Net Weight/Gross Weight (Kgs)
|
|
|
|
|
||||
|
Center distance : 750mm
|
|
1350/2000
|
1400/2050
|
1500/2150
|
||||
|
1000mm
|
|
1450/2100
|
1500/2150
|
1600/2250
|
||||
|
1500mm
|
|
1600/2250
|
1650/2300
|
1750/2400
|
||||
|
|
|
32505
|
32506
|
32507
|
||||
