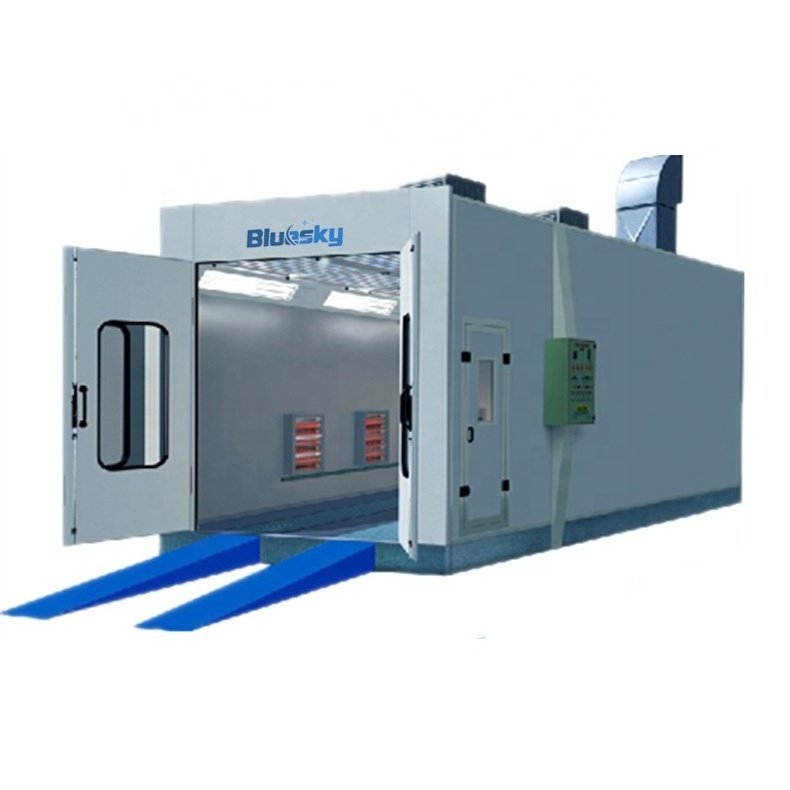

2022 Amazing product auto painting oven/thermal car paint booth/used car painting booth

Dimensions:

Length(mm)

Width(mm)

Height(mm)

Outer Size

8 ,000

4 , 0 00

4 , 2 00

Internal Size

6,900

3,900

2, 6 50

Entrance Door

Adopt with handle and lock

3,000

2, 6 00

Operatior’s Door

Adopt with handle and Anti-Explosion

800

2,000

Features:

Total power 3 0 kw;  380V/3ph/50hz ;  Noise < 80db

I . Wallboard & Roof board

Adopt high quality EPS panel, thickness: 50mm , socket type assembling.

Ramps × 2pcs, 630 mm with slope. Roof board with 0.7mm zinc plated

steel sheet, single layer.

II . Foundation System

All around with welded 1.2mm zinc plated steel sheet, Bearing bracket

with welded zinc plated steel is full of hot dip galvanized steel. Two rows

of grid and three rows of diamond plate.

III . Heating System

Adopt surface type infrared heat lamp,10 group × 3pcs, 1kw/pc.

IV . Filtration System

Inlet with high grad fiberglass filter, which filtered the dust larger than

10um, roof with EU5 CC-600G filter, TSP value: ≤ 1.4mg/m3.

V . Light System

With Philips lamps and electronic ballast, with 45 degree installation at

inner side of roof, it can still work under 180v.

VI . Ventilation System

Adopt two pcs energy saving fan, power 1.5kw, Air volume: 24000m3/h;

Rated air speed: 0.3m/s, air changes; 260 times/h. With 3 pcs straight

air ducts, 1pc ellow air duct.

VII . Control Panel

One unit, including lighting switch, painting switch, warm painting, baking

temperature, time setting, urgent stop switch. All components with

famous domestic brand .

VIII . Other Include

All sets of hardware, fasteners and sealants
