Features
●Control of the excess length of the optical fiber ensures that the optical cable has good tensile performance and temperature characteristics.
●PBT loose tube material has good hydrolysis resistance, and the tube is filled with special grease to protect the optical fiber cable.
●Optical cable has excellent flexibility and bending resistance.
●Optical cables are all non-metallic structures, light in weight, easy to lay, and excellent in electromagnetic resistance.
●Smooth outer sheath enables the optical cable to have a smaller coefficient of friction during installation.
●PE sheath has good resistance to solar radiation.
●The following measures are adopted to ensure the waterproof performance of the optical cable: the loose tube is filled with special waterproof compound; the cable core is completely filled.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Telecom /Network
-
Color:
-
Black or Customized
-
Jacket Material:
-
PE PVC HDPE
-
Armored:
-
Non-armored
-
Strength member:
-
FRP/ KFRP
-
Fiber count:
-
1-144
-
Fiber Type:
-
SM/MM/OM3
-
Cable Structure:
-
Uni-Loose Tube CST Armor optical fiber cable
-
Operating temperature:
-
-40~+70℃
-
Package:
-
Wooden Drum
Quick Details
-
Brand Name:
-
KEXINT
-
Model Number:
-
GYFTZY63
-
Place of Origin:
-
Guangdong, China
-
Application:
-
Telecom /Network
-
Color:
-
Black or Customized
-
Jacket Material:
-
PE PVC HDPE
-
Armored:
-
Non-armored
-
Strength member:
-
FRP/ KFRP
-
Fiber count:
-
1-144
-
Fiber Type:
-
SM/MM/OM3
-
Cable Structure:
-
Uni-Loose Tube CST Armor optical fiber cable
-
Operating temperature:
-
-40~+70℃
-
Package:
-
Wooden Drum
Product Description

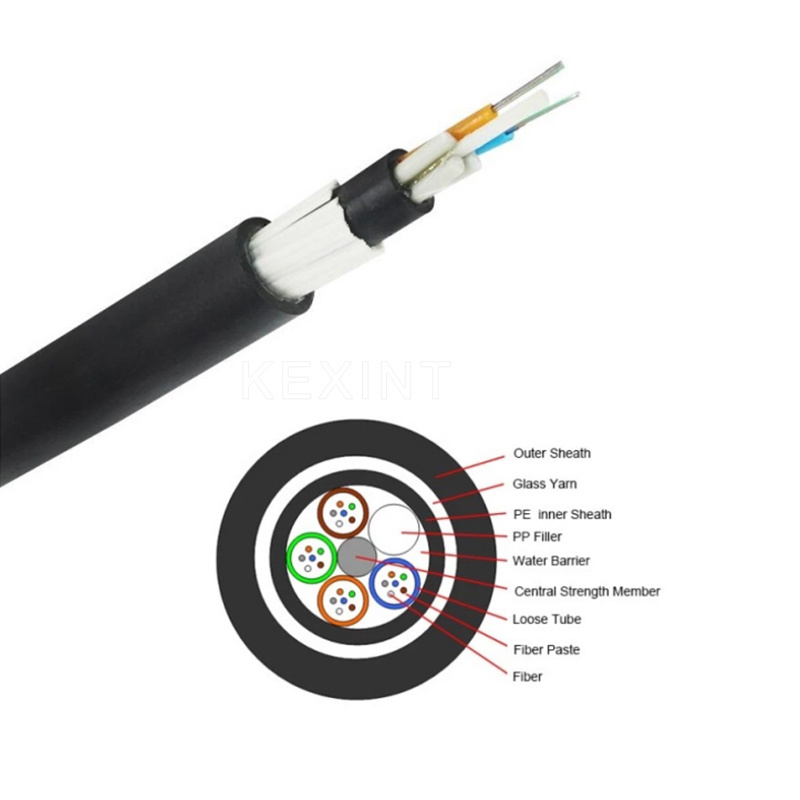

GYFTZY63 (non-metallic strengthening member, loose tube stranded and filled, polyethylene sheathed outdoor optical fiber cable for communication) The structure of the optical cable is to sheath a single-mode or multi-mode optical fiber into a high-modules plastic filled with waterproof compound loose In the casing. The center of the cable core is a non-metallic reinforced core (FRP).
For certain fiber optic cables, a layer of polyethylene (PE) is extruded outside the non-metallic reinforced core or a non-metallic reinforced yarn is added to the cable core line. The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core. The gaps in the cable core are filled with water blocking compounds and polyethylene sheaths.
For certain fiber optic cables, a layer of polyethylene (PE) is extruded outside the non-metallic reinforced core or a non-metallic reinforced yarn is added to the cable core line. The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core. The gaps in the cable core are filled with water blocking compounds and polyethylene sheaths.
Application:
– Laying modes: Aerial & Duct
– Electromagnetic interfering places
– Outdoor distribution
– Access network and local network
– Electromagnetic interfering places
– Outdoor distribution
– Access network and local network
Specification
|
Model
|
GYFTY
|
|
Fiber type
|
G652D/G657/OM1-4
|
|
Fiber Core
|
1-288
|
|
CSM
|
FRP/Steel wire
|
|
Outer Jacket
|
LSZH/PE/AT/TPU/PVC
|
|
Outer Diameter
|
10mm
|
|
Length
|
1KM/2KM/3KM/4KM
|
|
Package
|
Wooden Drum
|
Packing & Delivery
wooden drum
