Quick Details
-
Model Number:
-
NEH
-
Frequency:
-
60Hz 460V; 50Hz 380V
-
Rated power:
-
2HP-208HP
-
Frame size:
-
H213T~449T
-
Poles:
-
6P, 8P
-
Mounting option:
-
Foot,flange and face mounting
-
Cooling type:
-
IC411
-
Insulation class:
-
Class F
-
Duty:
-
S1 (continuous)
-
Altitude:
-
No more than 1000m
-
Enclosure:
-
IP55
Quick Details
-
AC Voltage:
-
380V 460V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Wolong CNE
-
Model Number:
-
NEH
-
Frequency:
-
60Hz 460V; 50Hz 380V
-
Rated power:
-
2HP-208HP
-
Frame size:
-
H213T~449T
-
Poles:
-
6P, 8P
-
Mounting option:
-
Foot,flange and face mounting
-
Cooling type:
-
IC411
-
Insulation class:
-
Class F
-
Duty:
-
S1 (continuous)
-
Altitude:
-
No more than 1000m
-
Enclosure:
-
IP55
Product Description
NEH 系列 全封闭 NEMA D三相感应电动机 (适用于游梁式抽油机)

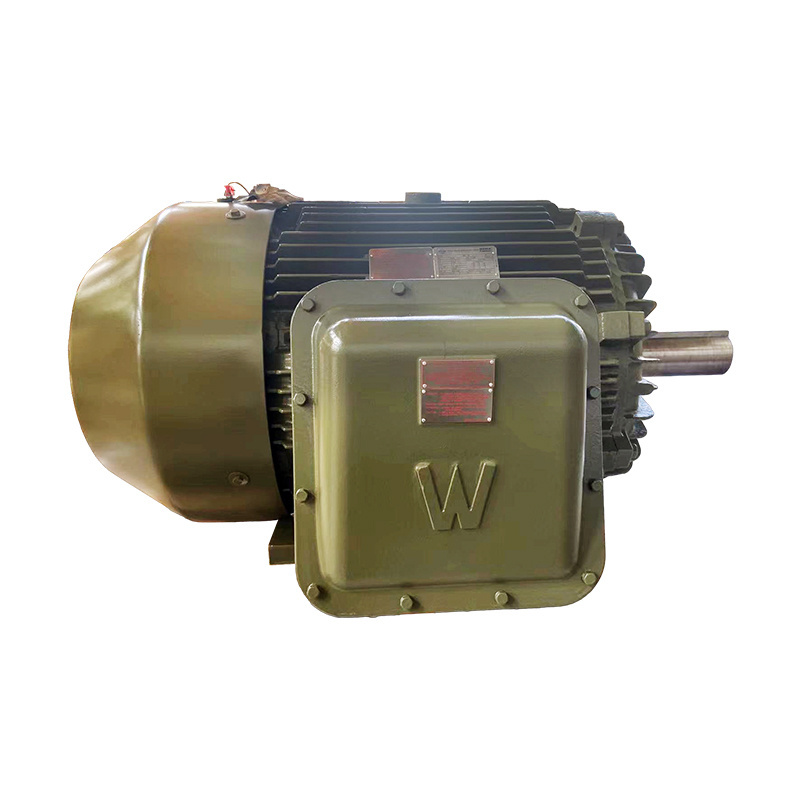

NEHSERIESTEFC NEMA D Three Phase Induction Motors
(For Service on Beam Pumping Units)
NEHSERIESTEFC NEMA D Three Phase Induction Motors
(For Service on Beam Pumping Units)
Specification
|
主要参数 Main Parameters
|
|
|
|
型号Item
|
NEH Series
|
|
|
电机类型Kind of motor
|
Squirrel-cage Induction Motor, NEMA D Design,Non-hazardous
|
|
|
设计标准Design Standard
|
NEMA MG1
|
|
|
Power Range功率范围
|
2-208HP
|
|
|
机座号Frame No
|
213T~449T
|
|
|
机数Poles
|
6，8
|
|
|
转速Synchronous Speed
|
1200RPM (6 Poles 60Hz)、1000 RPM (6 Poles 50Hz)、 900RPM (8 Poles 60Hz)、750RPM (8 Poles 50Hz)
|
|
|
频率Synchronous Speed
|
60Hz(50Hz is available on request)
|
|
|
电压Rated voltage
|
460V(415V is available on request)
|
|
|
海拔Altitude
|
3300ft (1000m)
|
|
|
环温Ambient temp.
|
-20~+40 degrees C(+55 degrees is available on request)
|
|
|
服务系数Service Factor
|
1.15or1.0.
|
|
|
绝缘等级Insulation class
|
Insulation class F（ Class H insulation is available on request)
|
|
|
防护等级Protection Enclosure
|
TEFC, IP55
|
|
|
转子Rotor
|
Squirrel-cage rotors,cast aluminum alloy
|
|
|
轴承类型Bearing type
|
For the motors in frame size 210, bilaterally shielded ball bearings are used without replenishing grease.Frame sizes ≧250 , the
open bearings are equipped with attachments having the function to drain and replenish lubricating grease without stopping the motor. |
|
|
冷却方式Cooling method
|
Surface Cooling(IC411)
|
|
|
旋转方向Direction of Rotation
|
Bi-directional.
|
|
|
启动方式Starting Method
|
Direct-on-line starting or Y- Δ starting.
|
|
|
润滑Lubrication
|
No.3 Lithium Base grease
|
|
|
轴承设计寿命Bearing design life
|
≧40,000 hours at rated load
|
|
|
可选项Options
|
1,Material :
Fan and Fan Cover ---Fan:plastic or cast iron Fan cover :steel sheet or cast iron 2,Protection ---Sun Shade,Dome ,PTC thermistors or PTC thermostat switch |
|
|
产品特点 Product Features
|
|
|
|
*该系列是我公司研制的符合NEMA标准的电机，具有堵转转矩大，堵转电流小，高滑差，可靠性高的特点。
This series is developed by our company in line with NEMA standard motor, with the characteristics of large locked-rotor torque, small locked-rotor current, high slip, high reliability. |
|
|
|
应用领域Application Field
|
|
|
|
*产品主要销往国内及美国，中东及欧亚油田市场，用作抽油机等高启动转矩的场所。
This products are mainly sold to domestic and American, Middle East and Eurasian oil field markets, used as pumping units and other places with high starting torque. |
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
