1004 Tractors100HP wd-40 wd Hot Sale 100hp 4wd Farm Tractor Agricultural Machine Equipment Prices For Agriculture Made In China
1004 Tractors100HP wd-40 wd Hot Sale 100hp 4wd Farm Tractor Agricultural Machine Equipment Prices For Agriculture Made In China
1004 Tractors100HP wd-40 wd Hot Sale 100hp 4wd Farm Tractor Agricultural Machine Equipment Prices For Agriculture Made In China
1004 Tractors100HP wd-40 wd Hot Sale 100hp 4wd Farm Tractor Agricultural Machine Equipment Prices For Agriculture Made In China
1004 Tractors100HP wd-40 wd Hot Sale 100hp 4wd Farm Tractor Agricultural Machine Equipment Prices For Agriculture Made In China
1004 Tractors100HP wd-40 wd Hot Sale 100hp 4wd Farm Tractor Agricultural Machine Equipment Prices For Agriculture Made In China
1004 Tractors100HP wd-40 wd Hot Sale 100hp 4wd Farm Tractor Agricultural Machine Equipment Prices For Agriculture Made In China
1004 Tractors100HP wd-40 wd Hot Sale 100hp 4wd Farm Tractor Agricultural Machine Equipment Prices For Agriculture Made In China

1004 Tractors100HP wd-40 wd Hot Sale 100hp 4wd Farm Tractor Agricultural Machine Equipment Prices For Agriculture Made In China

FOB Reference Price: Get Latest Price
≥1 Sets
US $5200
≥6 Sets
US $4000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Marketing Type:
New Product 2021
Engine Brand:
WEICHAI/QUANCHAI
Weight:
3806 KG
Color:
Customer Requirements
Transmission::
Two shafts, 16F+8R
Clutch:
Dry-friction, single disc and dual-stage
Engine:
4 Cylinder Diesel Engine
PTO Speed:
760/1000 rpm/min
Steering Type:
Full Hydraulic power steering
Options:
Cabin
Ad price:
Front end loader
Tractor price:
CONTACT Wendy From Jiulin Tractor
More implements:
CONTACT Wendy From Jiulin Tractor

Quick Details

Rated Power (HP):
20HP 80HP 30HP 90HP, 100HP, 140HP 160HP 180HP
Brand Name:
JIULIN
Place of Origin:
Shandong, China
Marketing Type:
New Product 2021
Engine Brand:
WEICHAI/QUANCHAI
Weight:
3806 KG
Color:
Customer Requirements
Transmission::
Two shafts, 16F+8R
Clutch:
Dry-friction, single disc and dual-stage
Engine:
4 Cylinder Diesel Engine
PTO Speed:
760/1000 rpm/min
Steering Type:
Full Hydraulic power steering
Options:
Cabin
Ad price:
Front end loader
Tractor price:
CONTACT Wendy From Jiulin Tractor
More implements:
CONTACT Wendy From Jiulin Tractor

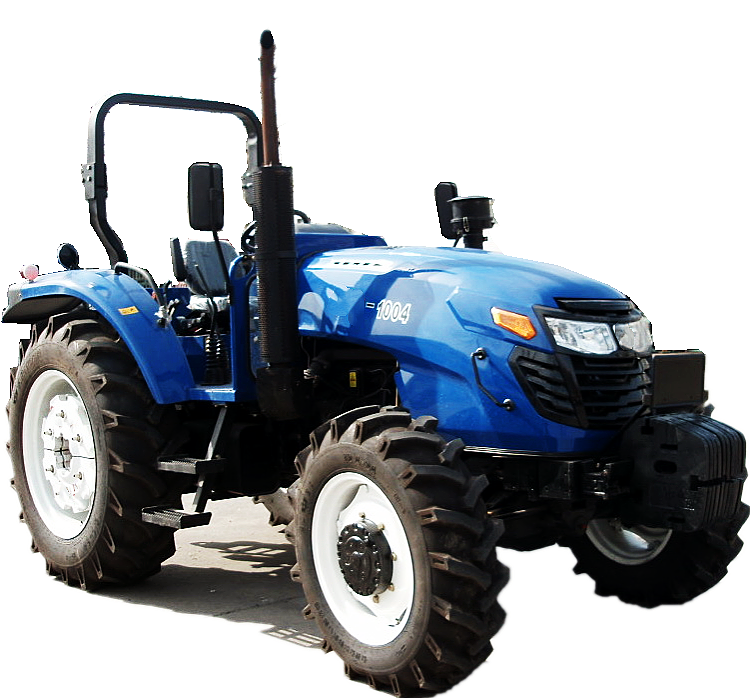

JL 1004 .

JIULIN 90-100HP series
HOT SALE technical features:
This model is distinguished by versatility, technology and maximum comfort. The high-comfort air-conditioned cab is placed on
Hydro-Silent blocks where up to 40% less noise and vibration in the cab are the result.
1. Adopt famous 4-cylinder turbocharger, powerful, fuel-efficient and energy conservation;
2. 12+12/16F+8R transmission, which can realize more shifts switch, able to meet different operation speeds requirements;
3. Position mix controlled hydraulic system, enlarge tractor lifting force, able to meet marching with large implements requirements;
4. Air-conditioning cabin, increased manipulation comfort.
5. Horsen 100hp tractor with famous brand 4 cylinders diesel engine, such as Xinchai/Quanchai/YTO/Yuchai/Weichai and so on.
6. diefferenial and lock
7. For more, pls contact Wendy Hu.
Main parameters
Tractor Model 1004B
Tractor power
100 HP
Drive type
4×4
Engine
Engine Brand
QUANCHAI
Engine Type
in-line , four-stroke
Air Intake Type
Turbocharged
No. of cylinder
4
Bore
98
Stroke
115
Displacement (L)
contct horsen
Fuel tank capacity L
81L
Rating power of engine KW/RPM
73.5 KW/2400
Fuel consumption @ nominal power (g/kw.h)
contact horsen
Air Intake Type
Naturally Aspirated
Air filter type/size
oil bath optional dry air filter
Cooling systerm
forced water-cooled
Torque reserve
34.5%
Transmission system
Clutch type/size
One-piece,dry,double-action/11 inches
No. of gears (F+R)
8F+4R/10F+10R /12F+12R /16F+8R
Shift method
mechanical sleeve
Theoretical speed ( forwards/ reverse)
2.61-34.59km/2.29-29.44
Gear position
side position
Hydraulic system
Hydraulic output flow rate (L / MIN)
CB-F325
Hydraulic output valve
2 groups
Hydraulic filter types and capacity
CONTACT HORSEN
Working device
Type of linkage
Three point linkage optional front 3 point linkage
Three-point-linkage
cat.2
Lifting capacity ( 610mm point) KN
21
Regulating mode
separated lifter: depth control and floating control
Type of PTO
rear detached/ rear detached type
No.of PTO shaft spline
6 splines / 8 splines
PTO shaft spline
¢35 / ¢38
PTO Speed
540/760 540/1000
Lifting Capacity (kn)
>18.0
Tillage depth adjustment
position,float,draft,draft mix control
Parameter
The whole machine size (dimensions) mm
4000×1900 ×2610
4285×1910 ×2810
Min. operation mass
3650
Wheel base (mm)
2100
Mini turning Radius (m)
4.9
Rated traction force(N)
>21
Minimum ground clearance (mm)
420
Air conditioning cab
Optional
Front/rear wheel tread
1300,1410,1550/1300-1700 (1400 Usual)
tyre size
9.5-24/16.9-30
Braking and steering
Braking system
hydrostaticpedal control,disc brake,
Steering type
hydraulic steering
Steering Angle (4 x4)
Front axle Max.Steering angle 45°
(options: all these types can Optional for swing drawbar, front/rear ballast)
Product Highlights
1.Factory with 20 years experience ensure the products quality.
2.Two years warranty period.
3.For easy-damage parts, we will send you together with the tractor for free.
4.During warranty period, free spare parts for quality-problem spare parts replacement.
5.Multi-selection of configuration.
