Quick Details
-
Wavelength:
-
Transmitting port:1310 +/-20nm; Receiving port:1490 +/-10nm
-
Application:
-
FTTH FTTB FTTX Network
-
Type:
-
EPON/GPON adaptive
-
portocol:
-
GPON- G.984/ G.983 code ; EPON- 802.3-2005/CTC
-
Chipset:
-
RTL9601B
-
Bridge:
-
supported
-
size:
-
85mm*85mm*18mm(W*D*H)
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
EPON:
-
symmetric 1Gbit/s
-
GPON:
-
download 2.488Gbit/s, upload 1.244Gbit/s;
-
Wavelength:
-
Transmitting port:1310 +/-20nm; Receiving port:1490 +/-10nm
-
Application:
-
FTTH FTTB FTTX Network
-
Type:
-
EPON/GPON adaptive
-
portocol:
-
GPON- G.984/ G.983 code ; EPON- 802.3-2005/CTC
-
Chipset:
-
RTL9601B
-
Bridge:
-
supported
-
size:
-
85mm*85mm*18mm(W*D*H)

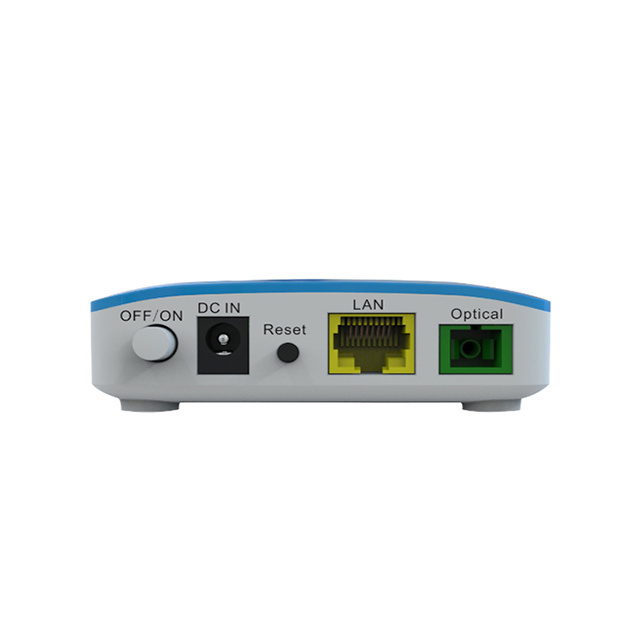

high quality and competitive price with Realtek 9601B chipset FTTH ONU 1GE Gpon epon
JZOU-1120
Feature
-
Internal 500MHz high performance ARM(32KBI/32JB D L1Cache) processor
-
Support EPON/GPON protocol and function applications; GPON compliant with ITU-T G.984.1/2/2/4; package meeting G.984 Ethernet over GEM; downstream speed- 2.488Gbit/s white upstream speed-1.244Gbit/s; EPON meeting 802.3-2005 and CTC EPON requirement with parallel upstream and downstream rate of 1.25Gbit/s
-
SerDes and DCR, support adaptive EPON/GPON
Parameter
|
Connector type |
SC/PC |
|
PON No. |
1 |
|
Fiber mode |
Single fiber |
|
Wavelength |
Transmitting port:1310 +/-20nm, Receiving port:1490 +/-10nm |
|
Portocol |
GPON: ITU-T G.984.1/2/3/4; EPON: 802.3-2005 and CTC EPON |
|
Speed |
GPON: download 2.488Gbit/s, upload 1.244Gbit/s; |
|
EPON: symmetric 1Gbit/s |
|
|
Output optical power |
Min. 0dBm; max. +4dBm |
|
Receiver sensitivity |
max -27dBm |
|
Receiver optical power |
Min. -3dBm |
|
Damaged threshold value |
7dBm |
|
Optical link length |
Max. 20km |
|
Others |
|
|
Power supply(DC) |
DC 12V 0.8A |
|
Power loss |
≤1.5W |
|
Working tempreturer |
-10 ~ +45℃ |
|
Storage tempreture |
-40 ~ +75℃ |
|
Ralative humantity |
max.95%% |
