Low cost organic fertilizer horizontal mixer/organic fertilizer horizontal mixer/compost mixing machine

Low cost organic fertilizer horizontal mixer/organic fertilizer horizontal mixer/compost mixing machine

1. Sphere of Application of compost mixing machine

The machine is widely used in all kinds of powder, food, chemicals, feed, ceramics, refractories, lumps, granular raw materials and other types of wet and dry materials, especially suitable for mixing thick materials and the mixture of fine powder Mixing is the most widely used new multi-purpose mixing equipment.

2.Operating principle of compost mixing machine

Horizontal cylinder with a single axis rotating reverse blade, the blade at an angle to the material along the axial and radial circulation stir, so that the rapid mixing of materials Horizontal Mixer Performance Features Reducer drive shaft rotation speed With the blade structure will make the material gravity weakened, with the lack of gravity, the existence of particle size of each material, the proportion of the difference between the differences in the mixing process is ignored. Intense mixing movement shortens the time of one mixing, faster and more efficient. Even if the material has the proportion, the difference of the particle size, in the staggered arrangement of stirring blades rapidly violent churn shedding, also can achieve good mixing effect. High mixing uniformity, less residue, suitable for more than two kinds of fertilizer, additive premix.

3.Configuration of compost mixing machine

1, moving the spindle layout of double helical blades, the internal spiral material to the outside delivery, the external spiral material to the internal aggregation. Material in the double spiral belt convection movement, the formation of a low-power and efficient mixing environment. The mixed material can be evenly mixed in a short period of time without dead ends.
2, between the motor and the mixing spindle by cycloid reducer directly connected or 350 gear reducer belt deceleration, easy to use, high reliability, easy maintenance. Motor for the new high-quality copper motor, precise control, long service life. Machine wear-resistant, durable, safe production, mixing time is 5-8 minutes. Mixing time is short, the machine lid can be opened for easy cleaning.
3, built-in shaft for the bold central axis, the spindle spindle lathe straightening, the dynamic balance test, running perpendicular to the ground, to ensure the operation of a balanced, improve service life. Using gear reducer or cycloid reducer.
4, according to customer demand custom feeder, increase hopper, thickened cylinder wall, hopper can be used above the floor and the floor below. Hoist supporting channel bracket or install universal wheel. Feeding machine and mixer with a soft connection, no dust, production safety, clean environment.
5, with the electric screw discharge and manual cutter-type discharge port, feeding machine and the cylinder U-flange at the end of the installation of butterfly valve can be manually adjusted, do not block the material, not hold back material to ensure smooth discharge.

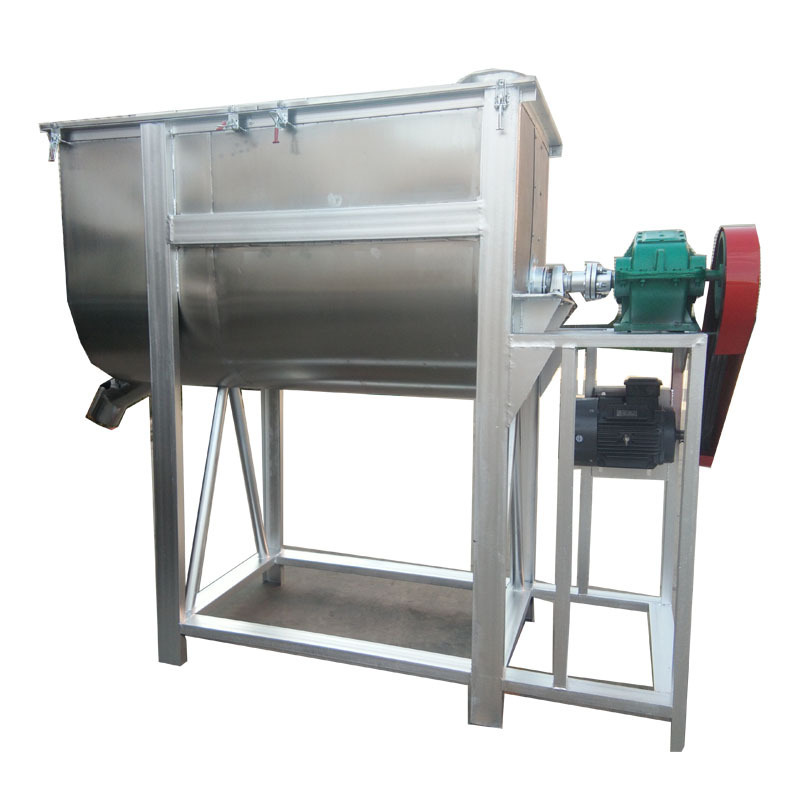

4.Pictures of compost mixing machine

Welcome to inquire!
